QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Back End Back End Drive Motor & Bracket Assembly

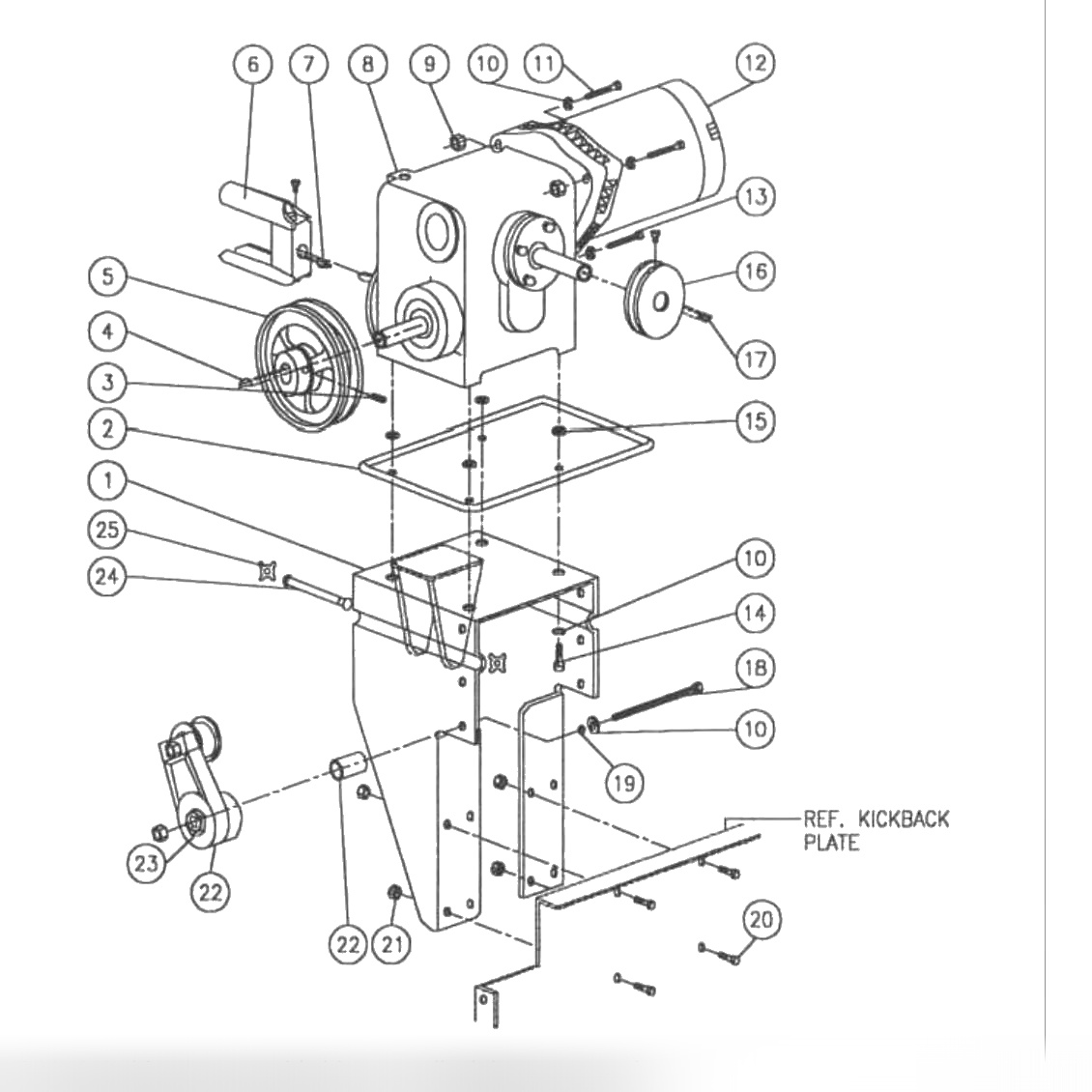

Back End Drive Motor & Bracket Assembly

Позиция	Артикул	Наименование
1	090003509	Back End Motor Mount Weldment
2	088004650	Back End Motor Drip Pan
3	807358060BG	Set Screw, Socket Head Cup Point, 5/16-24 X 0.38 (Bag of 10)
5	000023673	Sheave
6	090001130	Distributor Drive Housing
7	907000300BG	Hi-Pro Key, 504 (Bag of 10)
8	612088221	Back End Gearbox Kit 50Hz Odd
8	612088222	Back End Gearbox Kit 50Hz Even
8	612088223	Back End Gearbox Kit 60Hz Odd
8	612088224	Back End Gearbox Kit 60Hz Even
8	090004502	Gearbox BE LH 60 Hz
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
12	090003765	Motor, 50Hz
12	090003766	Back End Motor (60Hz)
12	090003766-01	Back End Motor, 60 Hz
12	090007310-02	Motor Back End, 50 Hz
-	809865245BG	Cap Screw, Hex Head, 3/8-16 X 1.50 (Bag of 10)
-	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
15	000023758BG	Gasket 0.38 X 0.41 X 0.04 (Bag of 10)
16	090007001	Drive Sheave
17	907201000	Square Key, 0.19 X 1.25
18	070003221	Cap Screw, Hex Head, 3/8-16 X 3.50
-	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
-	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
22	090004519	Spacer
23	090003508	Tensioner Assembly
24	831565002BG	Hex Finish Nut, 3/8-16, Cadmium (Bag of 10)
25	809865325BG	Cap Screw, Hex Head, 3/8-16 X 2.00 (Bag of 10)
26	090004444	Idler Pulley
27	835565002	Hex Finish Jam Nut, 3/8-16
-	090004557	End Bell Assembly 50 and 60Hz PSP
-	090004558	Solid State Start Switch 50Hz
-	090004560	Start Switch 60Hz
-	718507023	1/4 NPT Plug Pipe Socket
-	785501040	1/4-18 NPT Sq Plug Breather
-	785501616	Input Shaft Seal, Hub City and IPTS Gearboxes
-	785503019	Carpet Drive Shaft with Integral 18-Tooth Spur Gear
-	785503077	Front End Gearbox Oil Seal for Worm Input Shaft
