QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Back End Back End Assembly - Left Hand

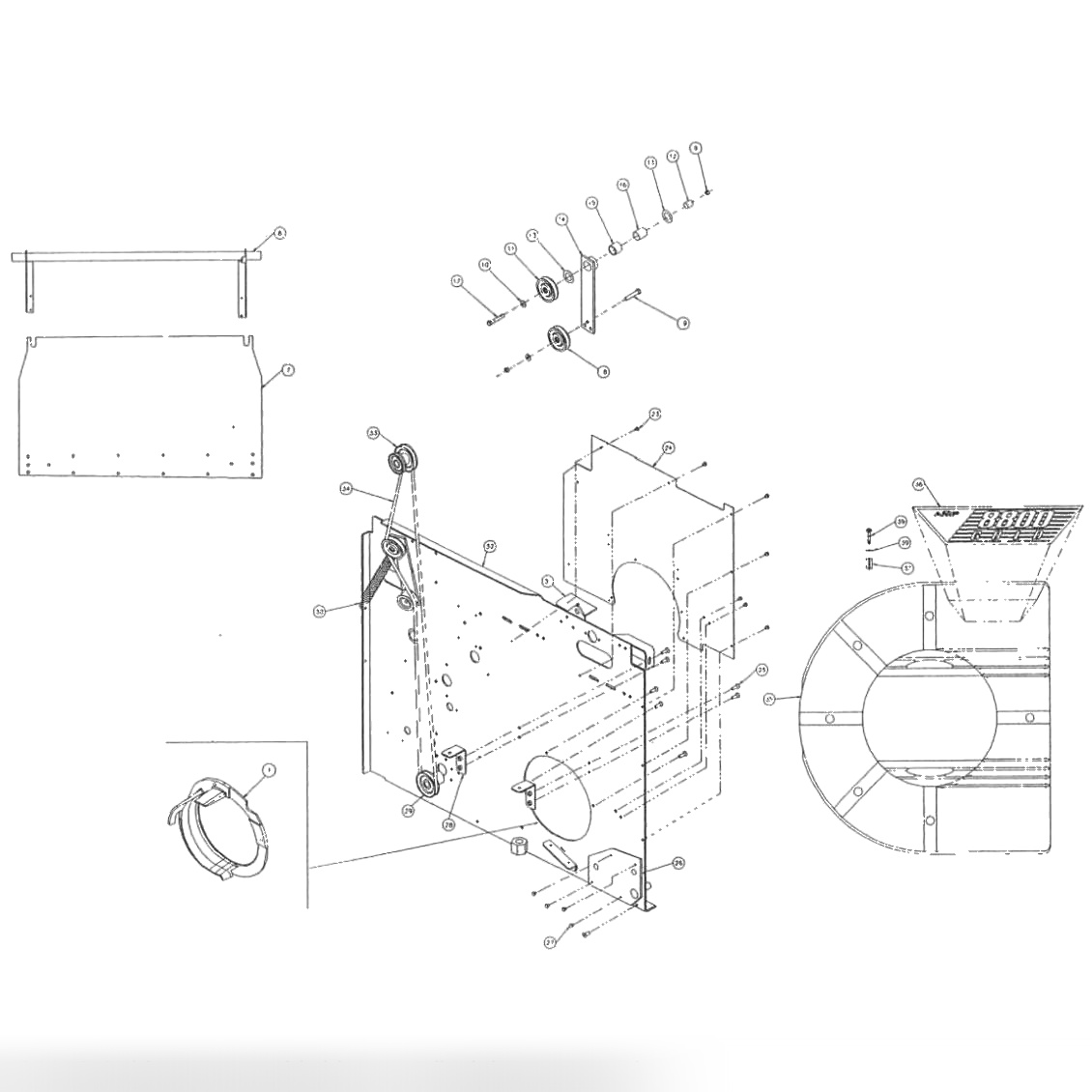

Back End Assembly - Left Hand

Позиция	Артикул	Наименование
1	090007263	Door Ring Left Hand
2	090007146	Center Guard
3	090007149	Bracket Center Guard
4	808549160BG	Cap Screw, Button Head, 1/4-20 X 1.00 Bg/10
-	948753102BG	Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10)
6	844549000	Jack Nut, 1/4-20, Jack Nut UNC
-	844065002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
-	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
11	090004444	Idler Pulley
12	070008212	Spacer
13	945867242BG	Flat Washer 1.50 X 0.41 X 0.50, Plain Finish (Bag of 10)
14	090007014	Idler Arm
15	900116161	Bearing Sleeve 1 .00 ID
16	090007016	Spacer Idler .406 X .998 X 1.2
17	809865565BG	3/8-16 x 3 1/2 Scr HH Bg/10
17	809865565	Screw-Hex 3/8-16 X 3-1/2 (Bag 10)
18	090007007	V-Idler, 3.00
19	809865365BG	Cap Screw, Hex Head, 3/8-16 X 2.25 (Bag of 10)
23	938648010	Blind (Pop) Rivet, 0.25 X 0.48, Aluminum, ABA
24	090007239	Panel, Kickback
25	808857120BG	Cap Screw, Flat Head, 5/16-18 X 0.75 Bg/10
26	090007242	Ball Guide
27	938048080	Blind (Pop) Rivet, 0.25 X 0.50
28	090007225	Bracket, Top Plate Mounting
29	090007000	Pulley Carpet
30	000024673	Spring Distributor
31	090007923	Flip Bracket
32	090004128	Kickplate Weldment RH LHM
33	090007001	Drive Sheave
34	090007008	V-Belt Carpet Drive
35	090007145	Pinspotter Wheel Guard
36	090008890	Wheel Guard Decal
37	090007241	.34 x .5 x .88 Split Spacer
38	826057242	Self Tapping Screw, Hex Washer, 5/16-18 x 1.50
-	070001131	Kickback Weldment Post
