QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8800 Back End Back End Assembly

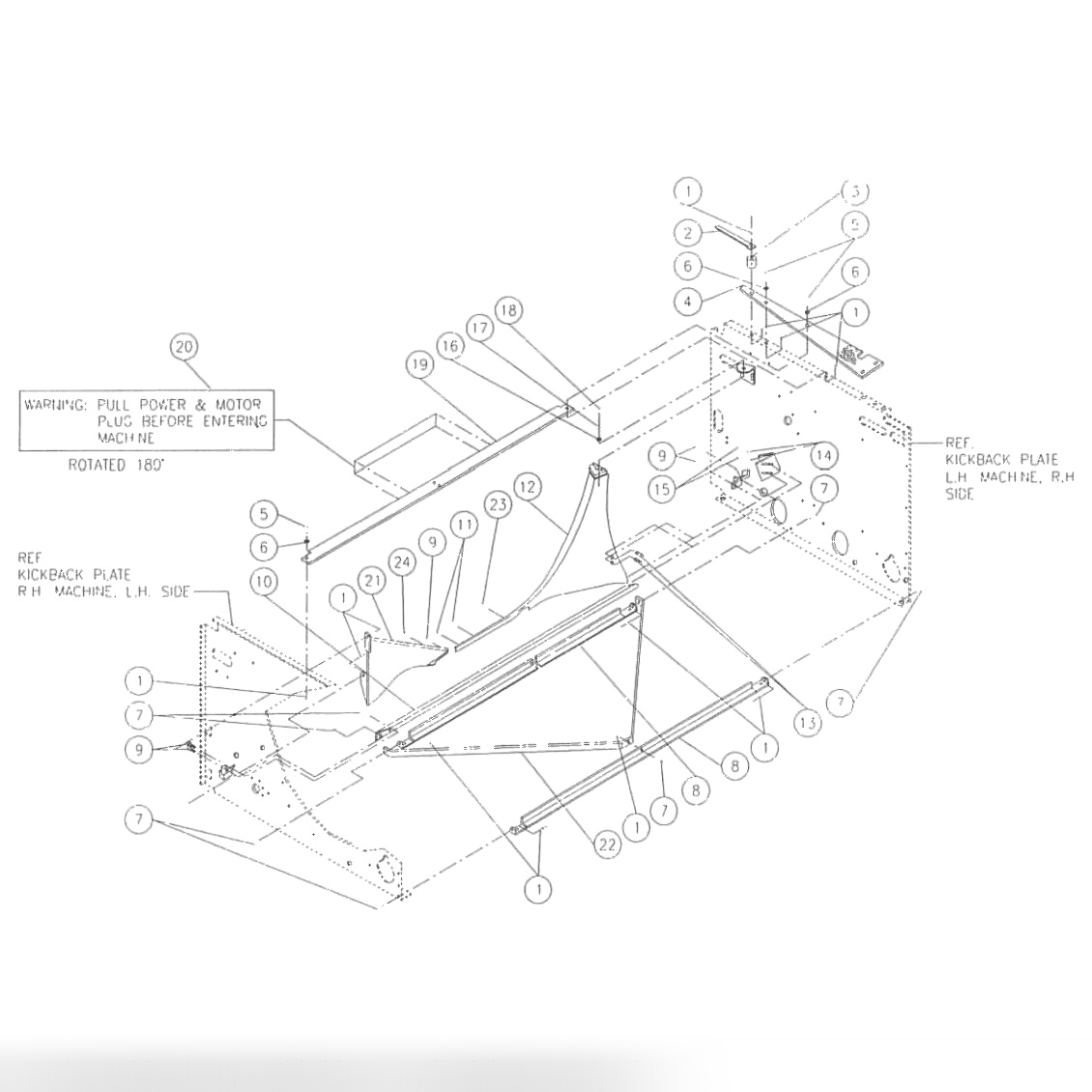

Back End Assembly

Позиция	Артикул	Наименование
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
2	070001195	Pin Seating Rod
3	000029068	Rubber Mount - Pin Elevator
4	088001120	Even Machine Tread Plate
4	088001121	Odd Machine Tread Plate
5	809857205BG	Cap Screw, Hex Head, 5/16-18 X 1.25 (Bag of 10)
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
7	809857165BG	Cap Screw, Hex Head, 5/16-18 X 1.00 (Bag of 10)
8	070001184	Strap Weldment
-	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
10	000027099	Apron and Mat Assembly Right Hand (EFF. S/N 41898 and UP)
10	000027100	Apron and Mat Assembly Left Hand (EFF. S/N 41898 and UP)
11	808858120BG	Cap Screw, Flat Head, 5/16-24 X 0.75 Bg/10
12	000027368	Plow & Mat Assembly LG RH for LH Machine
12	000027372	Plow & Mat Assembly LG LH for RH Machine
13	808849120BG	Cap Screw, Flat Head, 1/4-20 X 0.75 Bg/10
-	948753102BG	Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
-	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
18	808566160BG	Cap Screw, Button Head, 3/8-24 X 1.00 (Bag of 10)
19	070007359	Support Bracket
20	090004028	Warning Label
21	070001412	Plow & Mat Assembly SM RH
21	070002169	Plow & Mat Assembly Sm LH
22	070001185	Brace
23	808858240BG	Cap Screw, Flat Head, 5/16-24 X 1.50 Bg/10
24	809858125BG	Cap Screw, Hex Head, 5/16-24 X 0.75 (Bag of 10)
