QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Guards & Safety Labels Guards & Safety Labels Assembly

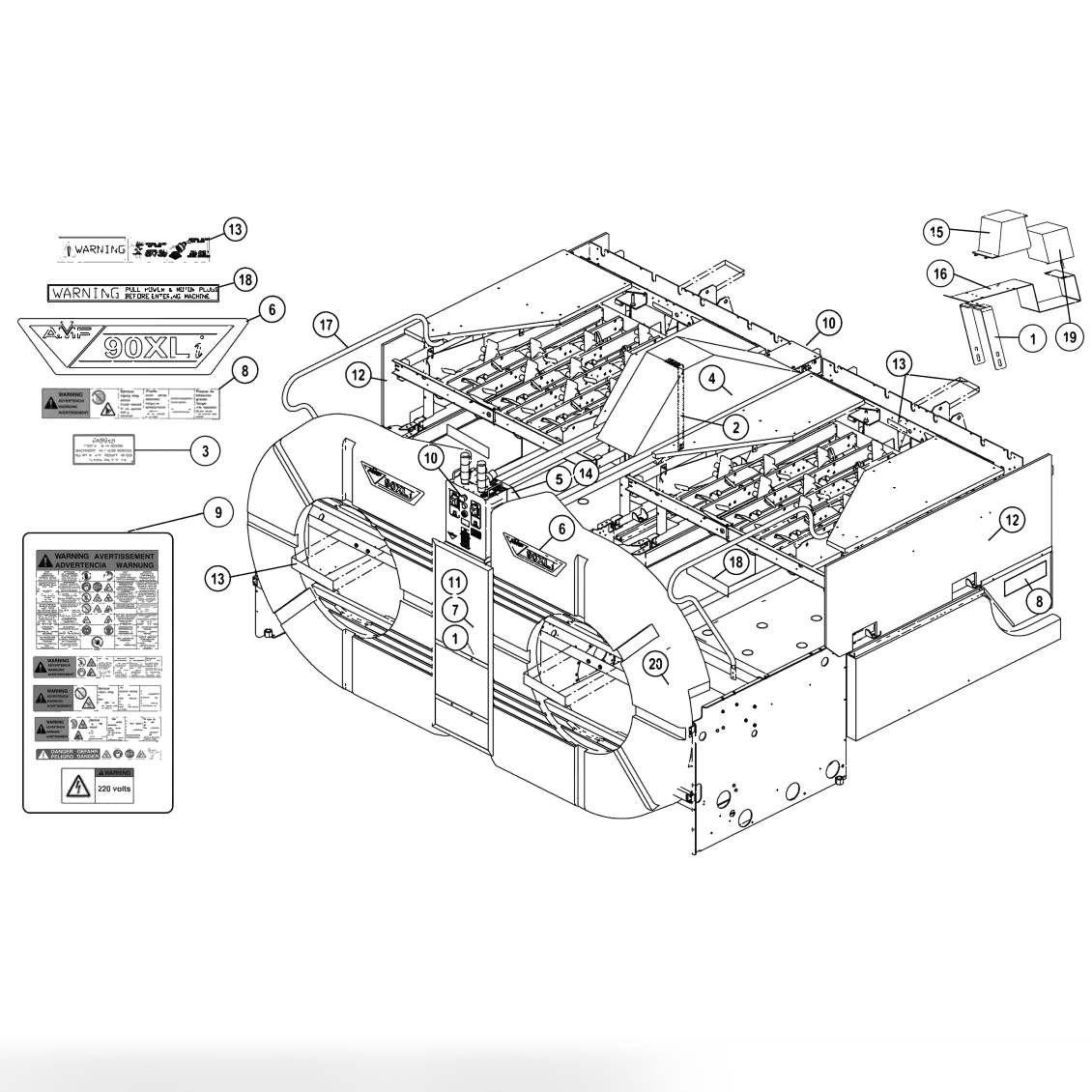

Guards & Safety Labels Assembly

Позиция	Артикул	Наименование
1	070004691	Rear Guard Bracket
2	070010238	Front Guard Assembly Bracket
3	070011211	Danger Decal
4	070011401	Ball Lift Guard Weldment
5	088000004	Chassis Cover (XLi)
5	088200568	Chassis cover assembly, wide
6	088001083	90XLi Wheel Guard Decal
7	088001115	Ball Lift Guard, Rear
8	088001154	End Guard Safety Label
9	088001156	Ce Label Kit For Pinspotter Pair
10	759506131	E-Stop Switch, Push/Pull
11	088001169	Ball Lift Guard, Rear, Kit
12	088001174	End Machine Guard Kit, Left Hand
12	088001172	Right Hand End Guard Kit
13	090004028	Warning Label
14	090004707	Chassis Cover (XL)
15	090004708	Front End Box Cover
16	090004709	Front End Cover Guard
17	090005118	Handrail
18	070005614	Warning Decal
19	090005827	Universal FE Box
20	090007145	Pinspotter Wheel Guard
-	070005517	Clip End Guard
-	088001170	Center Guard Kit
-	088001179	Lockout Tagout Device ISO 309
-	088200786	CE2011 PW Guard Screen Assembly
-	088200700	Light Curtain Alignment Tool
-	088500045	Steps ONLY for Ladder Assembly
-	090004419	Belt Guard Left Hand XL Chassis
-	090006179	Ladder Handrail CE
-	709002010	Fastener, 1/4 Turn
