QubicaAMF Pinspotter Parts 8290 - 90 XL Front End Sweep Sweep Arm Assembly

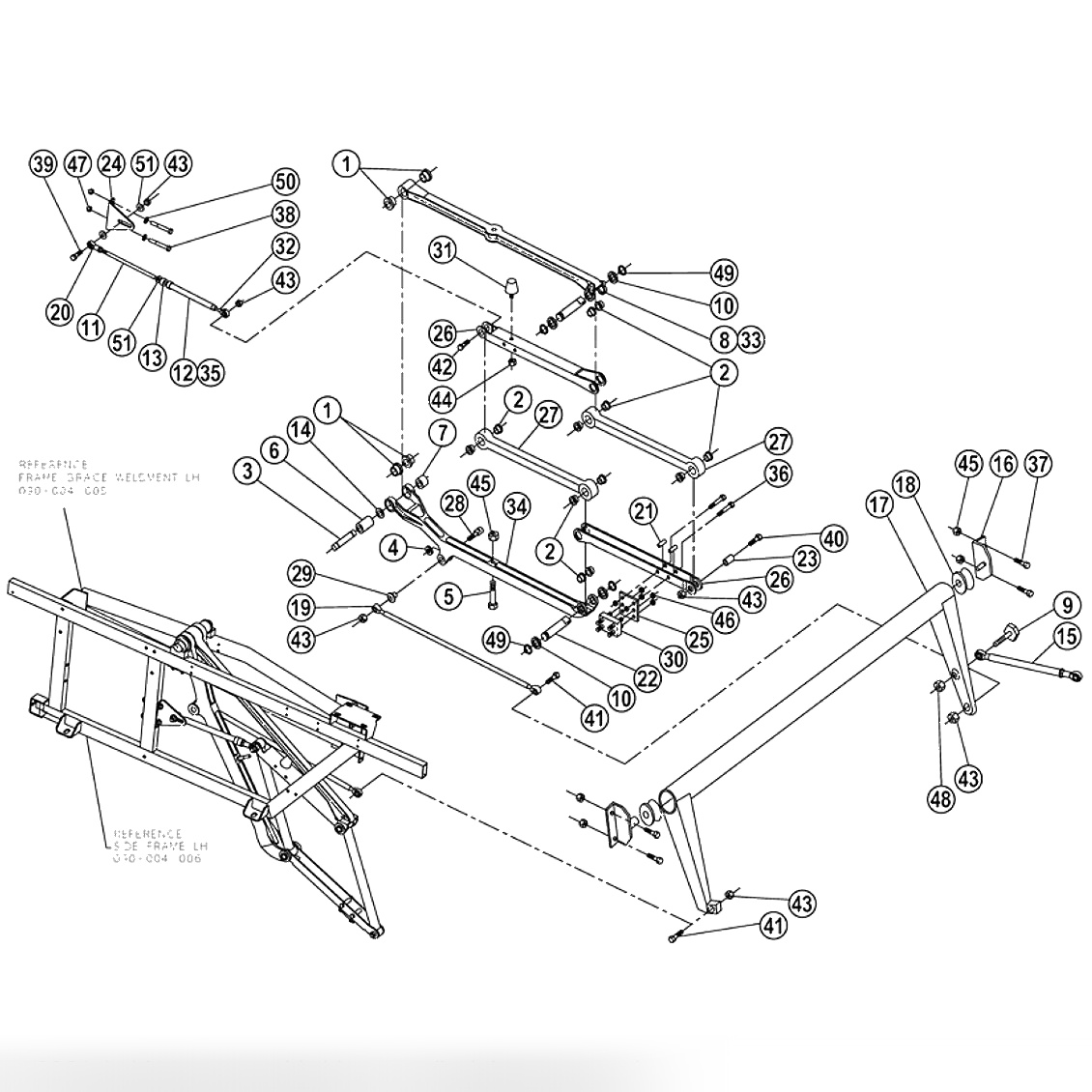

Sweep Arm Assembly

Позиция Артикул Фото Наименование Цена
№1
000023104
Flange Bushing, 1.25 X 1.50 X 0.95
420 ₽
№2
000023114BG
Flange Bushing, 0.63 X 0.81 X 0.06 (Bag of 10)
1 450 ₽
№3
070003106
Main Pivot Shaft
3 340 ₽
№4
070003117
Drive Link Spacer
650 ₽
№5
070003221
Cap Screw, Hex Head, 3/8-16 X 3.50
1 760 ₽
№6
070003232
Main Pivot Spacer, Long
1 850 ₽
№7
070003233
Main Pivot Spacer, Short
1 560 ₽
№8
070003238
Sweep Stabilizer Link Assembly
19 250 ₽
№9
070003243
Cap Screw, Hex Head, 1/2-13 X 2.00
780 ₽
№10
070006121BG
Distributor Clutch Assembly Flat Washer (Bag of 10)
730 ₽
№11
070007276
Rod Link Assembly
920 ₽
№12
070007278
Tube Weldment
4 270 ₽
№13
070007283
Bumper - Link Assembly
390 ₽
№14
070011819
Shim, Table and Sweep TRQ TBS Flat Washer 1.29 X 1.88 X 0.03
110 ₽
№15
088001353
Tie Rod Assembly
Tie Rod Assembly
10 970 ₽
№16
090004007
Torque Tube Hanger Assembly
Torque Tube Hanger Assembly
2 800 ₽
№17
088002232
Sweep Rocker Arm Assembly
40 820 ₽
№18
090005015
Torque Tube Bearing
Torque Tube Bearing
2 560 ₽
№19
090005254
Drive Link Connecting Rod
Drive Link Connecting Rod
6 270 ₽
№20
090005257
7/16 Rod End RH
7/16 Rod End RH
1 840 ₽
№21
090006125
Lower Steel Sweep Spacer, Female
Lower Steel Sweep Spacer, Female
1 040 ₽
№22
090006126
Pin, Steel Sweep Linkage
Pin, Steel Sweep Linkage
2 140 ₽
№23
090006127
Steel Sweep Link Sleeve
Steel Sweep Link Sleeve
1 390 ₽
№24
090006128
Sweep Link Bracket
Sweep Link Bracket
2 430 ₽
№25
090006131
Sweep Shock Mount Plate
Sweep Shock Mount Plate
860 ₽
№26
090006132
Steel Sweep Link, Upper and Lower
Steel Sweep Link, Upper and Lower
2 860 ₽
№27
090006133
Middle Link, Steel
Middle Link, Steel
5 900 ₽
№28
090006134
Drive Link Pin
Drive Link Pin
1 580 ₽
№29
090006135
Drive Link Bushing/Spacer
Drive Link Bushing/Spacer
1 170 ₽
№30
090006136
Shock Mount
Shock Mount
2 960 ₽
№31
090006137
Bumper
Bumper
1 700 ₽
№32
090006138
Rod End, 7/16 - 20 X .5
Rod End, 7/16 - 20 X .5
2 180 ₽
№33
090006139
Stabilizer Link Assembly
Stabilizer Link Assembly
22 730 ₽
№34
090006140
Drive Link Assembly
Drive Link Assembly
33 870 ₽
№35
090006145
Sweep Link Slide Assembly
Sweep Link Slide Assembly
8 470 ₽
№36
809857365
Cap Screw, Hex Head, 5/16-18 X 2.25
Cap Screw, Hex Head, 5/16-18 X 2.25
90 ₽
№37
809865285
Cap Screw, Hex Head, 3/8-16 X 1.75, Grade 8, Pentrate Black
Cap Screw, Hex Head, 3/8-16 X 1.75, Grade 8, Pentrate Black
150 ₽
№38
809865445BG
Cap Screw, Hex Head, 3/8-16 X 2.75 (Bag of 10)
1 480 ₽
№39
809869245BG
Cap Screw, Hex Head, 7/16-14 X 1.50 (Bag of 10)
1 410 ₽
№40
809869325BG
Cap Screw, Hex Head, 7/16-14 X 2.00 (Bag of 10)
1 640 ₽
№41
809869365BG
Cap Screw, Hex Head, 7/16-14 X 2.25 (Bag of 10)
1 720 ₽
№42
809869405BG
Cap Screw, Hex Head, 7/16-14 X 2.50, Right Hand (Bag of 10)
1 600 ₽
№43
838369002
Hex Lock Nut, 7/16-14, Center Punch
Hex Lock Nut, 7/16-14, Center Punch
90 ₽
№44
839057002BG
Hex Lock Nut, 5/16-18, Zinc Finish (Bag of 10)
590 ₽
-
839665002BG
Hex Lock Nut, 3/8-16 (Bag of 10)
1 850 ₽
-
844057002BG
Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
390 ₽
-
844065002BG
Hex Lock Nut, 3/8-16 (Bag of 10)
530 ₽
№48
844073002BG
Hex Lock Nut, 1/2-13 (Bag of 10)
890 ₽
№49
919005600BG
Snap (External) Ring, #5100-62 5/8" (Bag of 10)
480 ₽
-
948767132BG
Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
560 ₽
№51
949100002BG
Flat Washer 0.92 X 0.41 X 0.06 (Bag of 10)
330 ₽
