QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Front End Components Table Drive Assembly

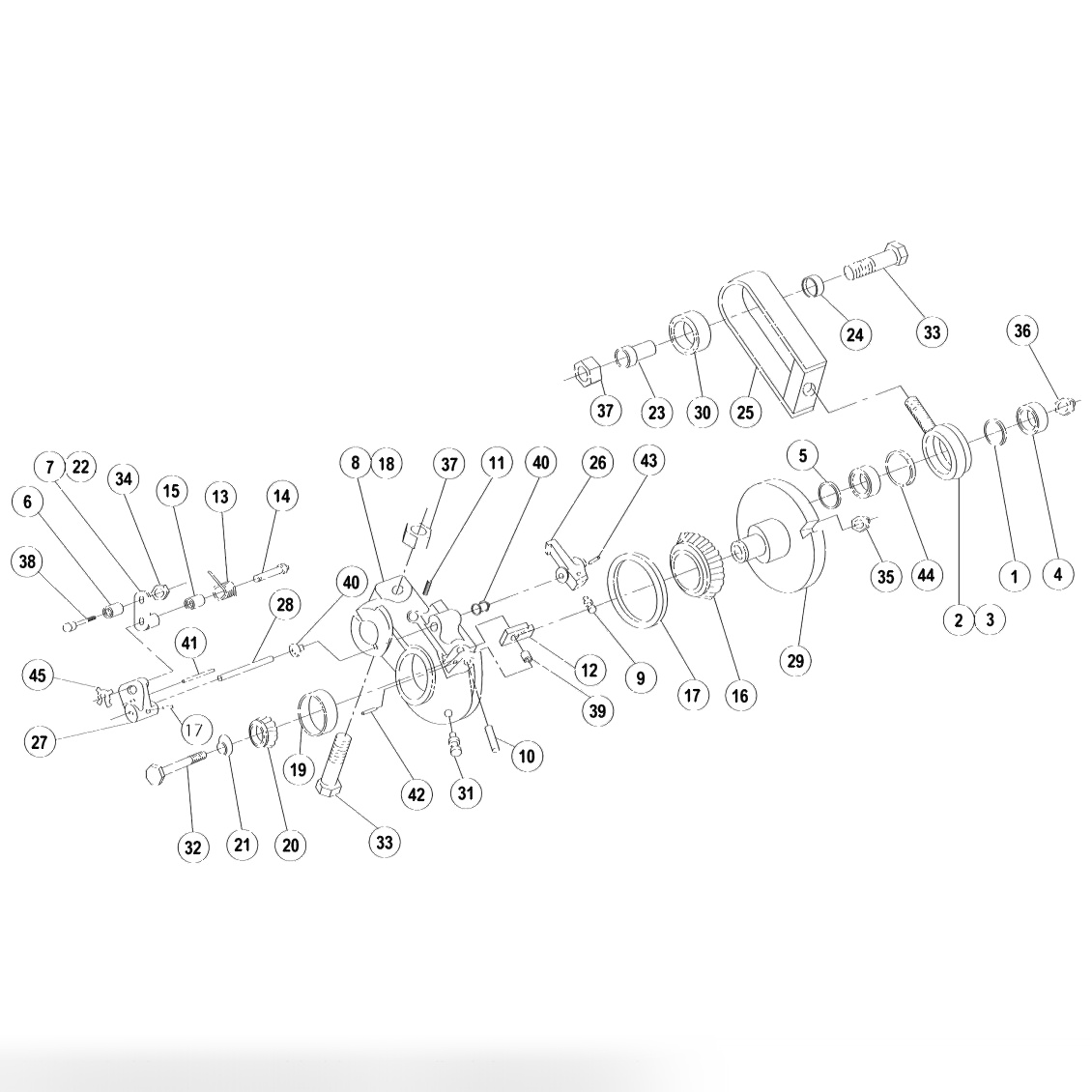

Table Drive Assembly

Позиция	Артикул	Наименование
1	000021878	Spacer
3	000021880	Rod End Assembly
4	000021881	Clevis Rod End Ball Bearing, Single Seal
5	070001849	Flat Washer 0.63 X 1.00 X 0.13, Black Oxide Finish , SP
6	070001857BG	Roller Bearing, Nylon Finish (Bag of 2)
9	070001893	Cam Ball Assembly
10	070001894	Special Pin (Custom)
11	070001917BG	Compression Spring (Bag of 5)
12	070001898	Latch Assembly
13	070001931	Spring Table Drive
14	070001877	Eccentric, Table Drive
14	070001932	Pin Actuator Assembly
15	070002652BG	Bearing Sleeve, 0.25 X 0.31 X 0.50, Long (Bag of 20)
16	070002776	Table Drive Roller Bearing
17	070002777	Bearing Cup
18	070002778	Crank Housing and Cup Assembly
19	070002780	Roller Bearing Cup
20	070002824	Cone and Seal Bearing Assembly
21	070006729	Belleville (Disc Spring) Washer 7/16
22	070007250	Link Assembly
23	070007310	Flange Bushing, 0.50 X 0.88 X 1.20
24	070007311	Sleeve, Table Drive Assembly
25	070007755	Yoke Weldment
26	070008321	Latch Arm Assembly (1/8" Spring Pin Hole)
27	070008322	Link Actuator Assembly
28	070008325	Pin Actuator Assembly
29	090005549	Table Drive Eccentric
30	190001490	Ball Bearing, 0.87 X 1.88 X 0.50
31	710501004	Grease Fitting
32	809870325BG	Cap Screw, Hex Head, 7/16-20 X 2.00 (Bag of 10)
33	809873405BG	Cap Screw, Hex Head, 1/2-13 X 2.50 (Bag of 10)
34	839539002BG	Hex Lock Nut, 10-24, HT (Bag of 10)
35	840070002BG	Hex Lock Nut, 7/16-20 (Bag of 10)
36	840182002BG	Hex Lock Nut (Bag of 10)
37	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)
38	880139120BG	Shoulder Bolt, Socket Head, 1/4 X 0.38 (Bag of 10)
39	900104071BG	Bearing Sleeve, 0.25 X 0.44 (Bag of 5)
40	900205053BG	Flange Bushing, 0.32 X 0.44 X 0.31, Bronze (Bag of 5)
41	912137200BG	Groove Pin, 3/16 X 1-1/4, T3 (Bag of 10)
42	913415120BG	Spring Pin, 3/32 X 3/4 (Bag of 10)
43	913423120BG	Spring Pin, 1/8 X 3/4 (Bag of 10)
44	919000600BG	Snap (Internal) Ring, #5000-137 (Bag of 10)
45	963300002BG	X-Washer, 5/32", 9000-10 (Bag of 10)
-	070001840	Table Drive Assembly
-	070002779	Eccentric and Cone Assembly
-	090005550	Table Drive Assembly - Steel Table
