QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Front End Components Front End Drive Assembly

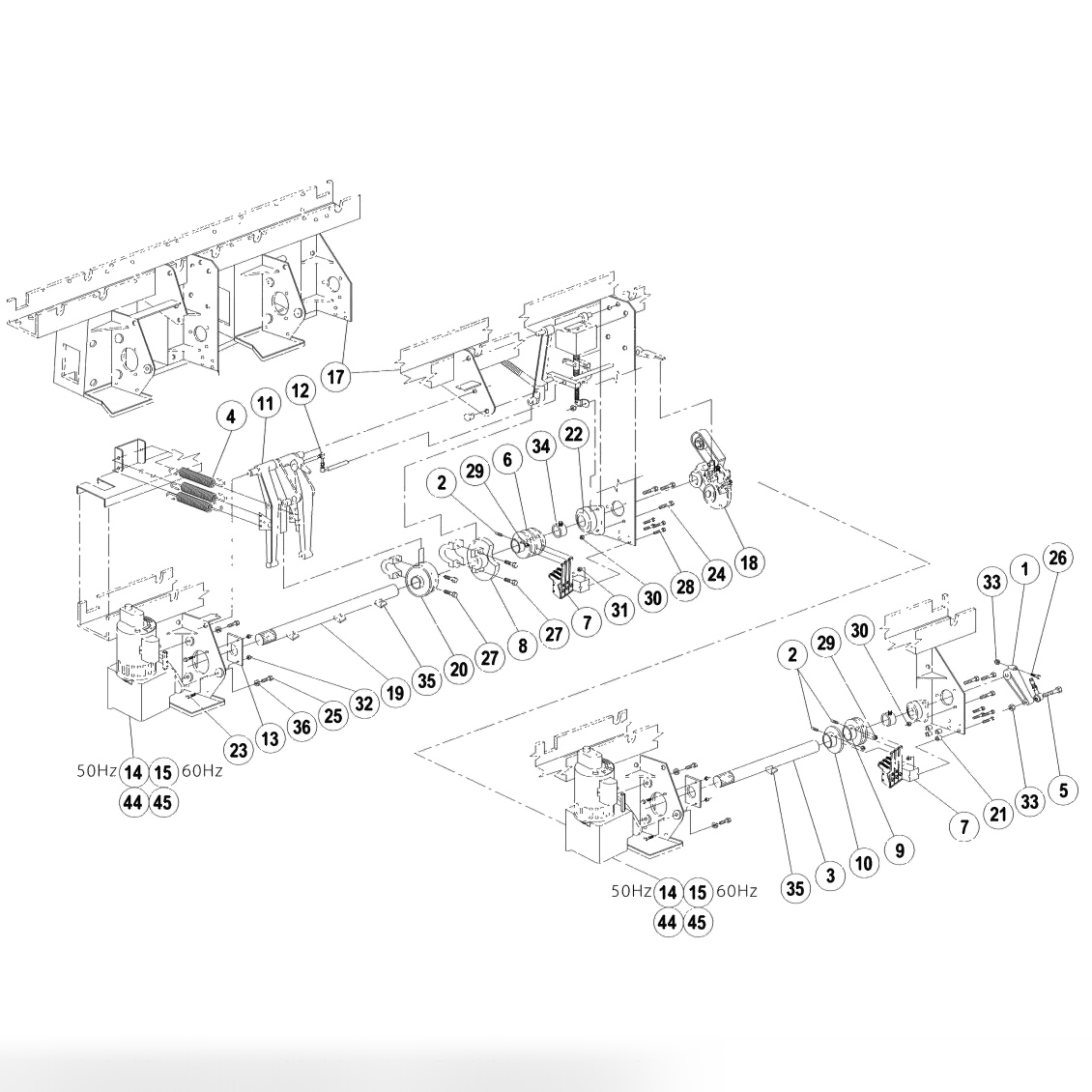

Front End Drive Assembly

Позиция	Артикул	Наименование
1	000023139	Crank Arm (8270)
2	070001664	CL AMP Stud- Cam
3	070001699	Sweep Shaft
4	070001707	Tension Spring, Spot and Respot Arms
5	070003243	Cap Screw, Hex Head, 1/2-13 X 2.00
6	070006417	Table Cam Weldment
7	000021645	Lever Assembly-Switch
8	070006427	Shuttle Cam
9	070006449	SB and SC Sweep Cam Weldment
10	070006450	SA Sweep Cam Weldment
11	070006492	Respot Arm Link Assembly
12	070006493	Ball Joint Assembly
13	070006765	Shaft Plate
14	090004548	Combination Motor - Small Plug (50Hz)
15	090003532	Combination Motor - Large Plug
15	090003847	Motor Front End 60Hz with Brake
15	090004547	Motor FE 60 Hz
15	090004547-01	Motor, Front End, 60Hz
15	090003777	Motor, Front End, 60Hz
17	088500200	Crossbeam Weldment, Wide Duct
18	090005550	Table Drive Assembly - Steel Table
19	090005565	Table Drive Shaft
20	610070303	Steel Table Conversion Kit
21	250001544	Outlet Cover Spacer 0.26 X 0.50 X 0.25
22	701420034	Ball Bearing, Flange, 3 Bolt Flange
23	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
-	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
25	809865245BG	Cap Screw, Hex Head, 3/8-16 X 1.50 (Bag of 10)
26	809873405BG	Cap Screw, Hex Head, 1/2-13 X 2.50 (Bag of 10)
27	810265280BG	Cap Screw, Socket Head, 3/8-16 X 1.75 (Bag of 10)
28	818239122BG	#10-24 x 3/4 Scr SMRD+ Bg/10
28	818239122	SCR-SMRD+ 10-24X3/4
29	834549002BG	Nut: 1/4-20, Hex
29	834549002	Hex Finish Nut, 1/4-20, Cadmium
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
31	843139002BG	Keps Nut, 10-24 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
33	844073002BG	Hex Lock Nut, 1/2-13 (Bag of 10)
34	902900110	Bearing Locknut Collar, 1-1/4"
35	907000900BG	Hi-Pro Key, 910 (Bag of 10)
36	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
44	088004609BX	FE Gearbox, 50Hz, Boxed
45	088004604BX	Front End Gearbox, 60Hz, Boxed
-	090003625	Front End Motor End Bell
-	090003630	Klixon Thermal Protector
-	090004516	Drag Brake - Drop In
-	090004525	Motor Rotor Front End Assembly 60Hz
-	090004526	Motor Rotor Front End Assembly 50Hz
-	090004550	Start Switch 50Hz
-	090004557	End Bell Assembly 50 and 60Hz PSP
-	090007555	Gearmotor Brake Assembly
-	610900063	Combination Gearbox Rebuild Kit (50Hz)
-	610900064	Combination Gearbox Rebuild Kit (60Hz)
-	610903429	Front End Back End Hardware Kit
-	088004716	Coupling Replacement Kit
-	088004715	SEAL REPAIR KIT
-	709013056	90XL Front End Motor Thru Bolt
-	715021717	Gearbox Oil SHC634
-	785503073	Oil Seal - Combination Output Shaft
-	907202500	Motor Shaft Rectangular Key, 0.19 X 1.38
-	919102100	O-Ring
