QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Front End Bin & Shuttle Durabin Assembly

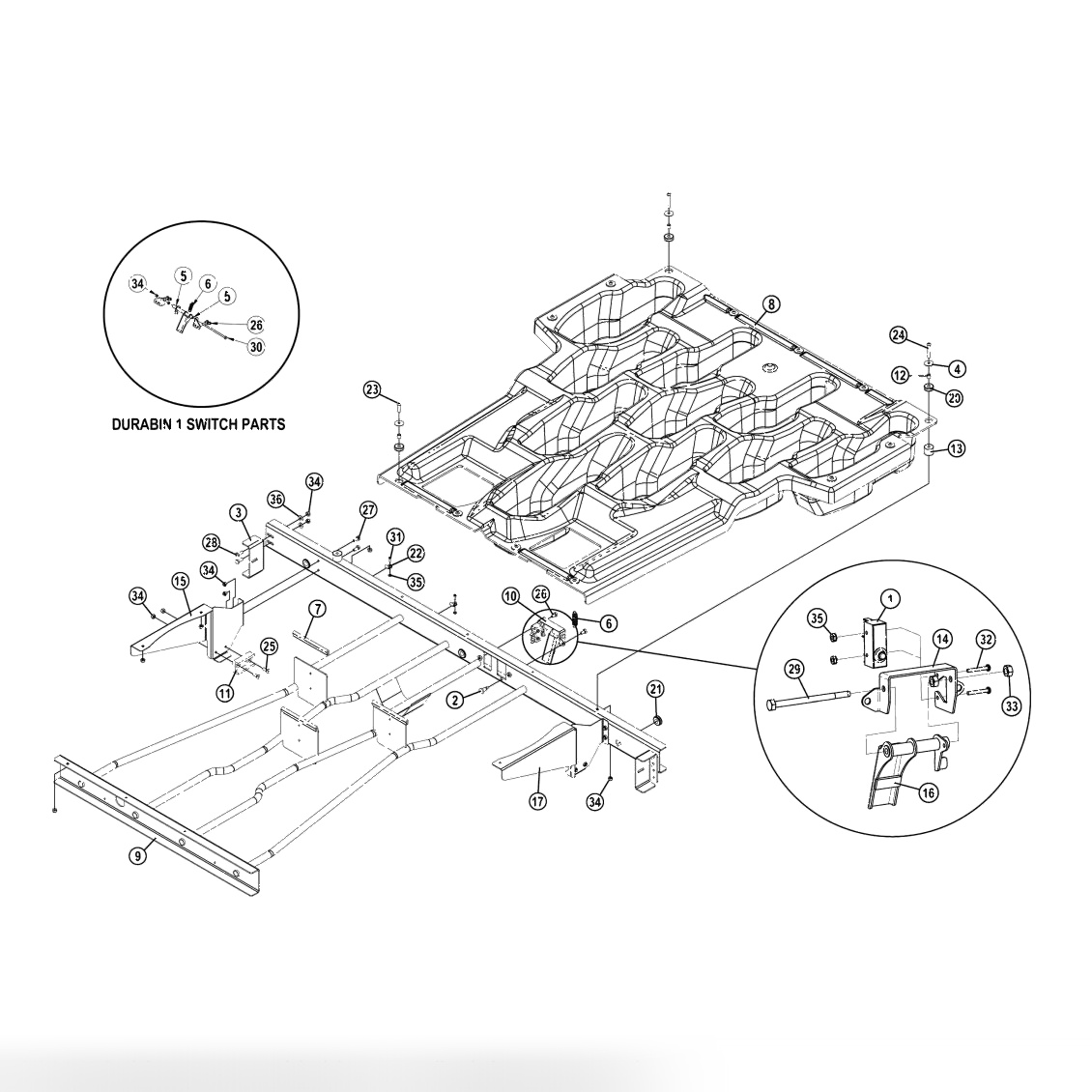

Durabin Assembly

Позиция	Артикул	Наименование
1	000026043	Micro Switch
2	070006142BG	Bumper, Bg/10
3	070006371	Support Bracket
4	070007192BG	Respot Cell Assembly Flat Washer (Bag of 10)
5	088001094	Switch Actuator Weldmnt, Durabin I
6	088001200	Durabin Switch Spring
7	088001264	Bin Frame Edge Trim
8	088001600	Durabin II for Mechanical Bin Switch
9	088001601	Durabin II Frame Weldment
10	088001602	Durabin 2 Bin Switch Assembly
11	088001603	Shuttle Rear Support Guide
12	088001604	Spacer, .25X.375X.375, Steel
13	088001605	Hat Replacement Spacer
14	088001606	Durabin 2 Switch Bracket
15	088001607	Durabin II Shuttle Support, 7-Side
16	088001608	Durabin 2 Switch Actuator
17	088001610	Durabin II Shuttle Support, 10-Side
18	088500162	90 XLi Shuttle Assembly Metric
19	612088204S	Durabin 2 Upgrade Kit for Single Lane
20	711512040	Push-In Grommet, 0.38 X 0.88 X 0.25
21	711516020	Push-In Grommet, 0.50 X 1.06 X 0.38
22	744107013	Clamp, Nylon, 1/8
23	808549160BG	Cap Screw, Button Head, 1/4-20 X 1.00 Bg/10
24	808549285	Cap Screw, Button Head, Hex Socket Drive, 1/4-20 X 1.75
25	808849120BG	Cap Screw, Flat Head, 1/4-20 X 0.75 Bg/10
26	809849085	Cap Screw, Hex Head, 1/4-20 X 0.50
27	809849100BG	Cap Screw, Hex Head, 1/4-20 X 0.63 (Bag of 10)
-	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75
29	809849605BG	Cap Screw, Hex Head, 1/4-20 X 3.75 (Bag of 10)
30	809849885BG	1/4-20 x5 1/2 Scr Hx Bg/10
30	809849885	Screw, Hex Hd, 1/4-20 X 5-1/2", Bag Of 10
31	818227082BG	Machine Screw, Pan Head, 6-32 X 0.50 Sems Bg/10
32	818227162BG	Machine Screw, Pan Head, 6-32 X 1.00 Sems Bg/10
33	834549002BG	Nut: 1/4-20, Hex
33	834549002	Hex Finish Nut, 1/4-20, Cadmium
34	839549002BG	Hex Lock Nut, 1/4-20, HT (Bag of 10)
35	843127002BG	Keps Nut, 6-32 (Bag of 10)
-	948753102BG	Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10)
