QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Electrical Front End Electrical Installation XL Assembly

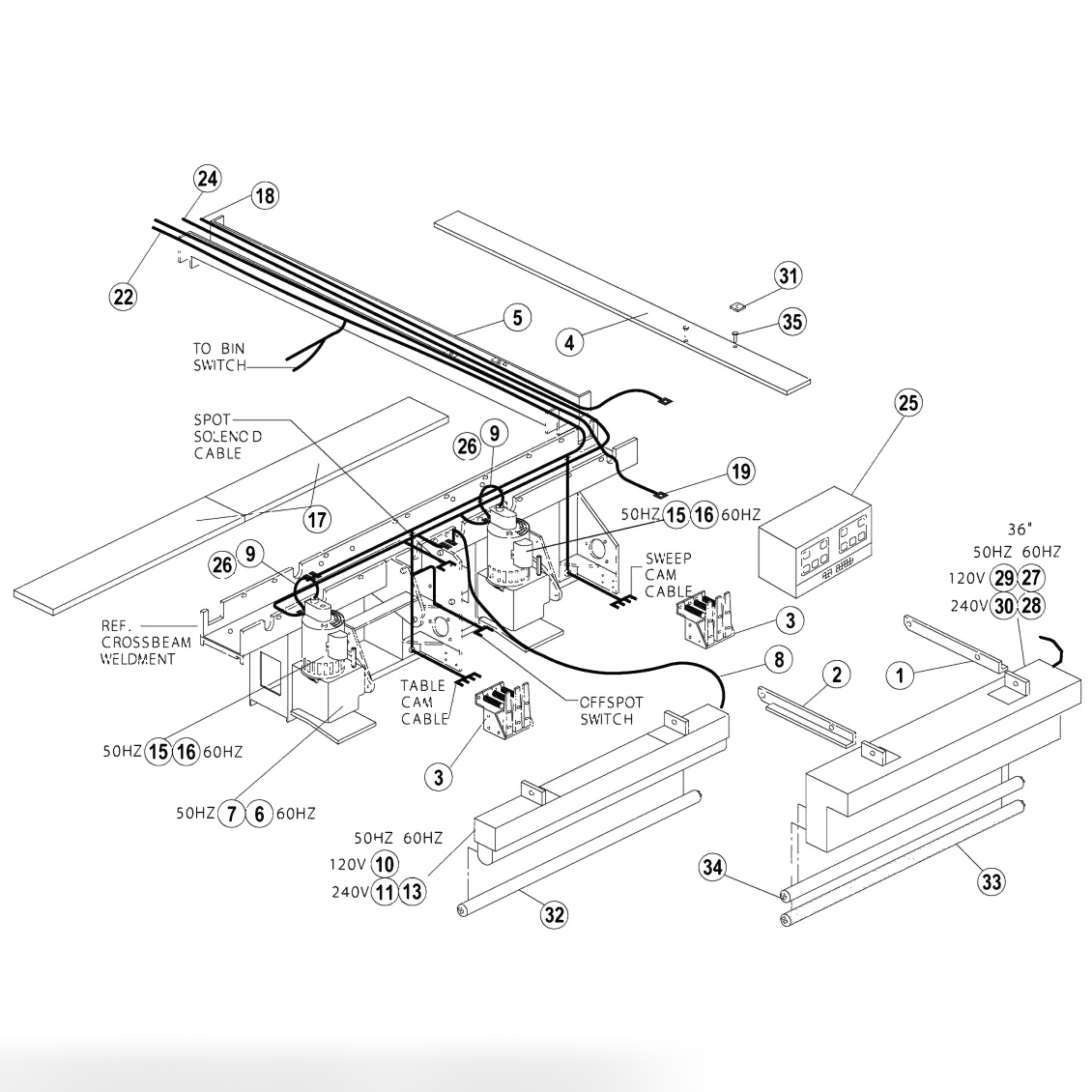

Front End Electrical Installation XL Assembly

Позиция	Артикул	Наименование
1	070001907	Pit Light Mounting Bracket, Right Hand (10 Pin)
2	070001908	Pit Light Mounting Bracket, Left Hand (7 Pin Side)
3	000021645	Lever Assembly-Switch
4	070007747	Wireway Cover
5	070007748	Front Wireway
6	088004604BX	Front End Gearbox, 60Hz, Boxed
8	090003703	Dual Pit Light Cable - Used On Items 10, 11, and 13
9	090003714	Motor Cable Large Plug
13	090003803	Pit Light Assembly, 240V, 60Hz
15	088004609BX	FE Gearbox, 50Hz, Boxed
16	090003532	Combination Motor - Large Plug
16	090003847	Motor Front End 60Hz with Brake
16	090004062	Combination Motor - Splined Shaft (60Hz)
16	090004547	Motor FE 60 Hz
16	090004547-01	Motor, Front End, 60Hz
16	090003777	Motor, Front End, 60Hz
17	090005053	Crossbeam Cover
18	090005733	Front End Box Communication Cable
19	090005734	Pinsensing Kit (9 Pin Cable)
22	090005759	Odd Logic Cable
24	090005763	Odd Power Cable
25	090005827	Universal FE Box
26	090005876	Motor Cable, Small Plug
27	090008017	Dual Pit Light Assembly 36"
28	090008032	Dual Pit
29	090008034	Dual Pitlight, 36", 110V, 50Hz
30	090008065	Dual Pitlight, 36", 220V, 50Hz
31	724511074	Speed Nut, 10-32, Tinnerman
32	751001254	Lamp, Daylight, F30t 12/Dirs
33	751001460	Bulb, Blacklight, 36", F30t8
34	751001466	Bulb, Daylight, 36", T8, 30W
35	812840082BG	Screw, Round Head, 10-32 X 0.50 (Bag of 10)
-	090003634	Capacitor Franklin
-	090003915	Cable Assembly Ball Detector
-	090004550	Start Switch 50Hz
-	090005758	Even Logic Cable - Not Shown
-	090005762	Even Power Cable - Not Shown
-	715021717	Gearbox Oil SHC634
