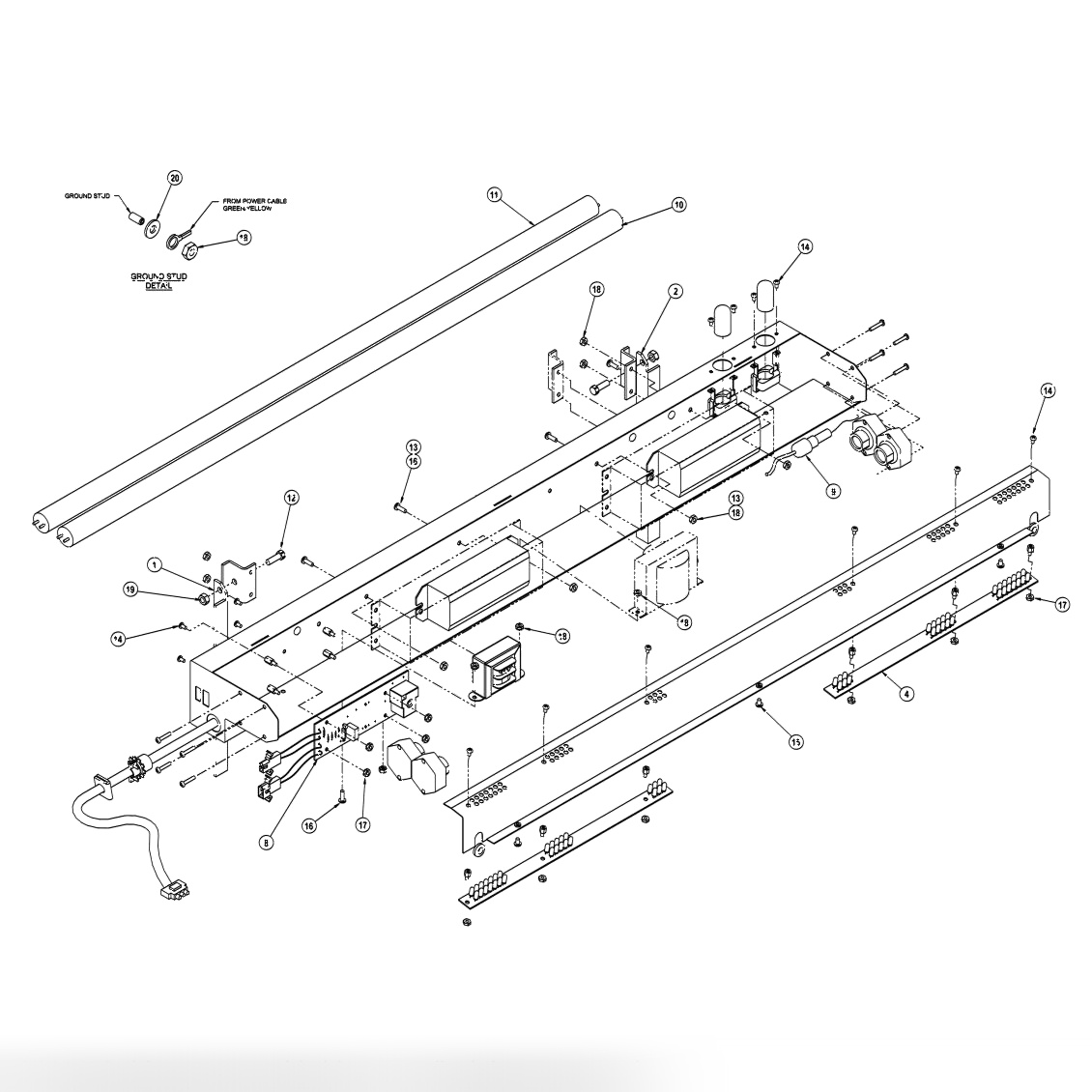

Dual Pit Light XL Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
070001907
|
Pit Light Mounting Bracket, Right Hand (10 Pin) |
| 2 |
070001908
|
Pit Light Mounting Bracket, Left Hand (7 Pin Side) |
| 4 |
090008020
|
Infrared Pin Deck Lamp Assy |
| 8 |
090008095
|
Control Board Assy, Pitlight |
| 9 |
748561111
|
Fuse, 250V, 1A |
| 10 |
751001460
|
Bulb, Blacklight, 36", F30t8 |
| 11 |
751001466
|
Bulb, Daylight, 36", T8, 30W |
| 12 |
809849165BG
|
Cap Screw, Hex Head, 1/4-20 X 1.00 (Bag of 10) |
| 14 |
7016410632025BG
|
Machine Screw, Round Head, 6-32 X 0.25 (Bag of 10) |
| 15 |
818233042
|
#8-32 x 1/4 Screw SMRD+ |
| - |
844049002BG
|
Hex Lock Nut, 1/4-20 (Bag of 10) |
| 20 |
951032000
|
Light Spring (Split) Lock Washer #8 ANSI, Zinc Finish |
| - |
090008065
|
Dual Pitlight, 36", 220V, 50Hz |
| - |
090008034
|
Dual Pitlight, 36", 110V, 50Hz |
| - |
275002013
|
Universal Pit Light Interface Assembly |
| - |
275002016
|
Universal Interface Control Cable |
| - |
612270004
|
CP Deck Light PSP Interface |
| - |
090008017
|
Dual Pit Light Assembly 36" |
| - |
090008032
|
Dual Pit |
