QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Electrical 90XL Chassis (Black) & Mounting Bracket Assembly

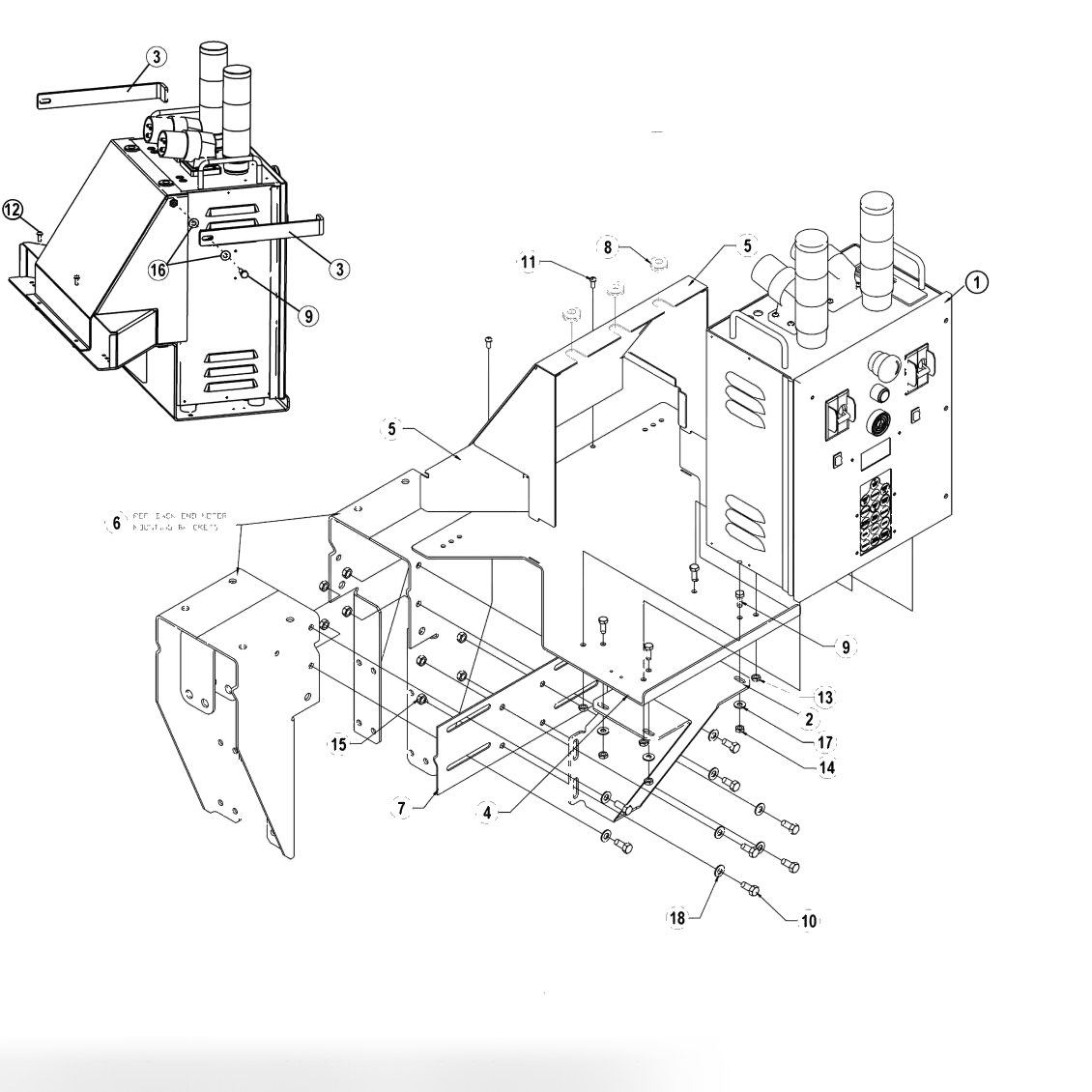

90XL Chassis (Black) & Mounting Bracket Assembly

Позиция	Артикул	Наименование
1	088000001-02	90XLi Chassis w/o t2
2	088000068	Chassis support bracket
3	088200180	Chassis rear cover strap
4	088200486	Controller Mounting Weldment
5	088200568	Chassis cover assembly, wide
6	090003509	Back End Motor Mount Weldment
7	090004513	Tie plate
8	711520012	Grommet, 0.63 X 0.88 X 0.06
-	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75
10	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
11	812840082BG	Screw, Round Head, 10-32 X 0.50 (Bag of 10)
12	818240082	Machine Screw, Pan Head, Phillips Drive, 10-32 X 0.50
13	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
16	948753101	Flat Washer 1/4 X 0.27 X 0.61 X 0.05 SAE, Black Oxide Finish
17	948753102BG	Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10)
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
24	090008939	XL Chassis Circuit Breaker
25	090008965CR-R	90XL Pinspotter Control Chassis
-	051000043	Shock Mount
-	088000102	Technician'S Handheld Unit
-	090002775	Solenoid and Pit Light Fuse, 1A, 250V
-	090002776	Fuse, Logic Power, 1A, Fast Blow
-	610905113	XL MCU Box Kit
-	090004706	Chassis Mounting Bracket
-	090004775	MCU for XL Pinspotters
-	090005706	Logic Power Cable
-	090005714	Front End Box Power Cable
-	090005733	Front End Box Communication Cable
-	090005748	Home Run Cable, Manager's Control Unit
-	090005749	Daisy Chain Cable
-	090005883	Cable Set Univ APS to AccuScr+
-	090005790	PBL Kit XL Chassis
-	090005794	Terminator Cable
-	090005855	Ac Power Cable
-	090008101-01	Switch Box Chassis 33-64 Lanes
-	090008135	XL Chassis Control PCB
-	294002252	Power Supply Fuse, 2A, 250V
-	400090005	XL Chassis Manual
-	612440061	Pinsensing Kit
-	743000307	Braking Capacitor, 220V
-	770046227	Power Supply
