QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Back End Kickback Plate Assembly - Opposite Ball Exit Side

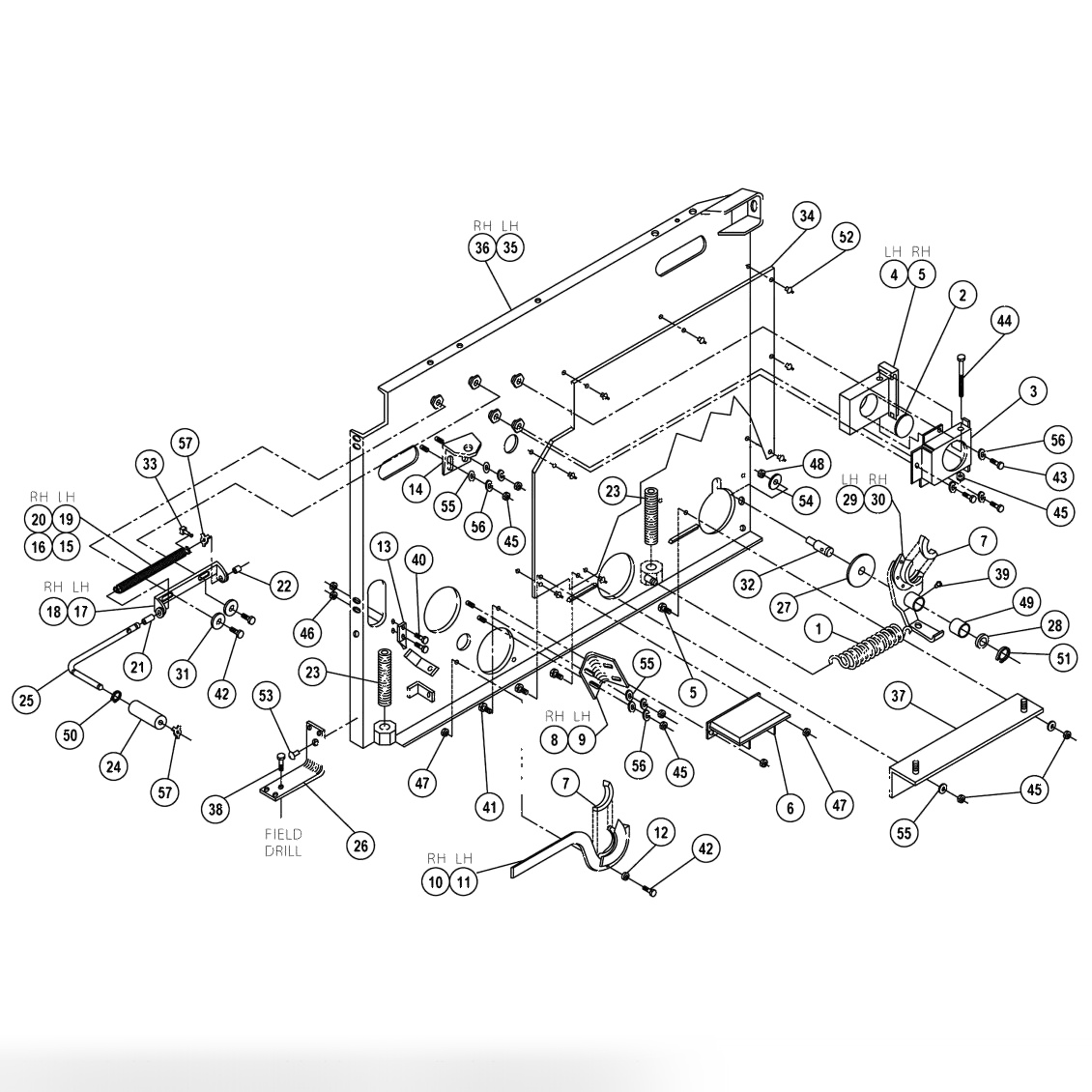

Kickback Plate Assembly - Opposite Ball Exit Side

Позиция	Артикул	Наименование
1	000021204	Spring
2	000022300	Shield
3	000022788	Box Support Back End Assembly
4	000022794	Block Support, Right Hand
5	000022795	Block Support, Left Hand
6	000022878	Angle
7	000022924BG	Support, Bearing, Back of 10
8	000023431	Clip, Bottom, Right Hand
9	000023432	Clip, Bottom, Left Hand
10	000023464	Support Weldment Right Hand
11	000023465	Support Weldment Left Hand
12	000023467	Flange Bushing, 0.31 X 0.43 X 0.31
13	000023468	Back End Bracket, Left Hand and Right Hand
14	000023821	Clip, Top
15	000024507	Pin Ejector Assembly, Left Hand
16	000024508	Pin Ejector Assembly, Right Hand
17	000024510	Bracket, Left Hand
18	000024511	Bracket, Right Hand
19	000024512	Spring, Left Hand
20	000024513	Spring, Right Hand
21	000024515	Bearing Sleeve, 0.44 X 0.56 X 0.75, Long
22	000024516	Bearing Sleeve, 0.44 X 0.56 X 0.38, Short
23	000024890	Jack Screw Set Screw
23	000025207	Key HS 0.56 x 4.50
23	088002276	Locking Tab
23	088002275	Jack Screw
24	000025803	Roller
25	000025804	Shaft Pin Ejector Asm
26	000026464	Kickback Bracket
27	000027641	Roller Bearing, Thrust, 0.75 X 2.75 X 0.62
28	000027642	Front Roller Flat Washer 0.76 X 1.25 X 0.05
29	000027645	Bearing Support Left Side (Eff. S.N. 58801)
30	000027646	Bearing Support Right Sioe (Eff. S.N. 58801)
32	000029015	Stud, Replacement (not shown (Eff. at 58801))
33	000029317	Special Pin (Custom)
34	070002027	Kickback Panel
35	090004127	Kickplate Weldment LH/RHM
36	090004128	Kickplate Weldment RH LHM
37	090004131	Pit Support Bracket
38	709013059	Anchor Screw Bolt, M8 X 75mm, HH
39	710501009	Grease Fitting
-	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75
41	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
42	809857165BG	Cap Screw, Hex Head, 5/16-18 X 1.00 (Bag of 10)
-	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
44	809865645BG	Cap Screw, Hex Head, 3/8-16 X 4.00 (Bag of 10)
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
48	844074002BG	Hex Lock Nut, 1/2-20 (Bag of 10)
49	900112203BG	Bearing Sleeve, 0.75 X 1.00 X 1.25 (Bag of 5)
50	919005400BG	Snap (External) Ring, #5100-43 (Bag of 10)
51	919005800BG	Snap (External) Ring, #5100-75 (Bag of 10)
52	937000000BG	Drive Rivet, 0.25 X 0.34, Plain Steel, UH (Bag of 10)
53	937710005	Drive Rivet, Domed, 0.31 X 0.56, Aluminum
54	941072200BG	Flat Washer 0.50 X 1.25 X 0.08 (Bag of 10)
-	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
57	963600002BG	X-Washer, 1/4", 9000-16 (Bag of 10)
-	000022796	Cushion Block-Urethane Right Hand (10 Side)
-	000022797	Cushion Block-Urethane Left Hand (7 Side)
-	070001131	Kickback Weldment Post
-	834991960	Hex High Nut, Coupling Nut
