QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Back End Kickback Plate Assembly - Ball Exit Side

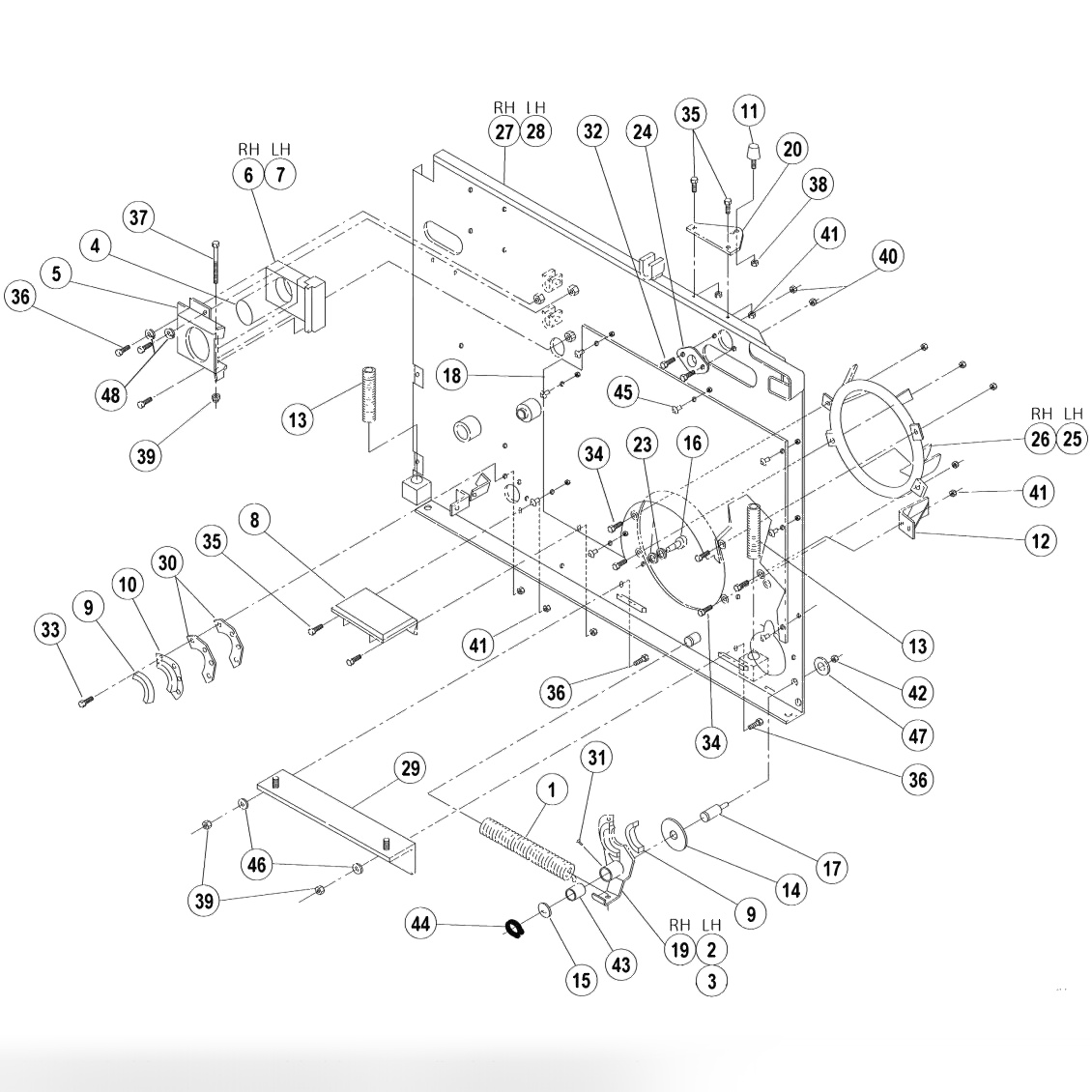

Kickback Plate Assembly - Ball Exit Side

Позиция	Артикул	Наименование
1	000021204	Spring
2	000022248	Bracket Weldment LH LH
3	000022249	Bearing Support, Left Hand Machine
4	000022300	Shield
5	000022788	Box Support Back End Assembly
6	000022794	Block Support, Right Hand
6	000022796	Cushion Block-Urethane Right Hand (10 Side)
7	000022795	Block Support, Left Hand
7	000022797	Cushion Block-Urethane Left Hand (7 Side)
8	000022878	Angle
9	000022924BG	Support, Bearing, Back of 10
10	000022926	Support Retainer
11	000024641	Stop Bumper
12	000024668	Track Support Bracket
13	000024890	Jack Screw Set Screw
13	000025207	Key HS 0.56 x 4.50
13	088002276	Locking Tab
13	088002275	Jack Screw
14	000027641	Roller Bearing, Thrust, 0.75 X 2.75 X 0.62
15	000027642	Front Roller Flat Washer 0.76 X 1.25 X 0.05
16	000028362BG	Bumper Urethane Bag/10
17	000029015	Stud, Replacement (not shown (Eff. at 58801))
18	000029640	Kickback Panel
19	000029672	Bearing Support, Right Hand Machine
20	070004642	Ball Lift Stop Bracket
23	070011050	Thick, Special Flat Washer 0.48 X 0.75 X 0.13, Zinc Finish
24	612088506	Curtain Bushing Replacement Kit
25	070011005	Ball Door Weldment - PBL (Even Lane)
25	070011641-01	Urethane Door Ring Left Hand (Even)
26	070011006	Ball Door Weldment - PBL (Odd Lane)
26	070011642-01	Urethane Door Ring Right Hand (Odd)
27	090004126	Kickplate Weldment RH/RHM 8290
27	090004140	Kickback Plate Weldment ASM, 10 Pin Side, Odd Machine
28	090004129	Kickplate Weldment LH/LHM 8290
29	090004131	Pit Support Bracket
30	090004136	Spacer Retainer
31	710501009	Grease Fitting
32	808549160BG	Cap Screw, Button Head, 1/4-20 X 1.00 Bg/10
33	808557120BG	Cap Screw, Button Head, 5/16-18 X 0.75 (Bag of 10)
34	808857120BG	Cap Screw, Flat Head, 5/16-18 X 0.75 Bg/10
35	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
-	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
37	809865645BG	Cap Screw, Hex Head, 3/8-16 X 4.00 (Bag of 10)
38	835558002BG	Hex Finish Jam Nut, 5/16-24
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
42	844074002BG	Hex Lock Nut, 1/2-20 (Bag of 10)
43	900112203BG	Bearing Sleeve, 0.75 X 1.00 X 1.25 (Bag of 5)
44	919005800BG	Snap (External) Ring, #5100-75 (Bag of 10)
45	937000000BG	Drive Rivet, 0.25 X 0.34, Plain Steel, UH (Bag of 10)
-	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
47	948975172BG	Flat Washer 1.06 X 0.53 X 0.09 (Bag of 10)
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
-	070001131	Kickback Weldment Post
-	834991960	Hex High Nut, Coupling Nut
