QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Back End Back End Drive Motor & Bracket Assembly

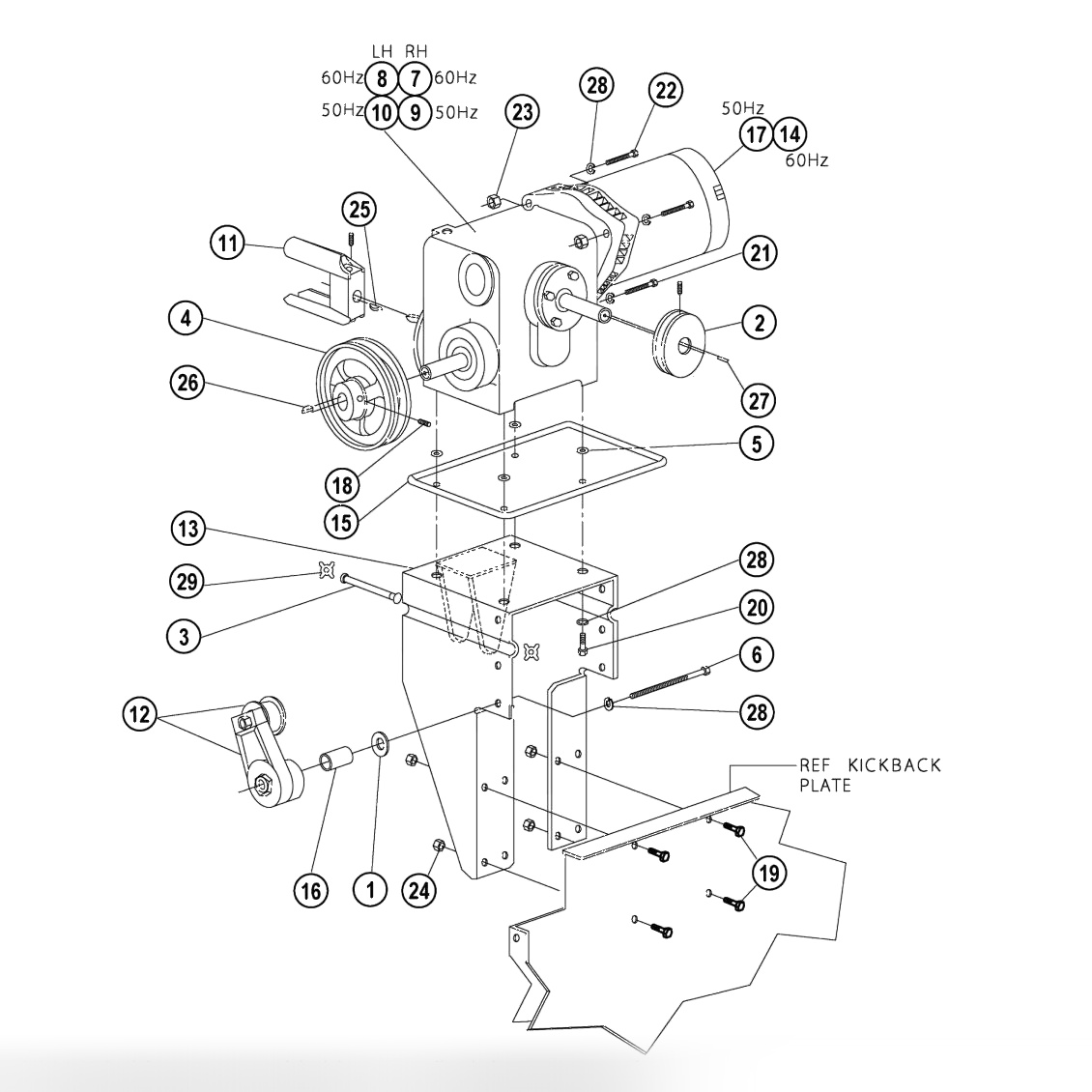

Back End Drive Motor & Bracket Assembly

Позиция	Артикул	Наименование
1	000021792	Frame Adjustment Flat Washer 0.41 X 0.88 X 0.03
2	000022172	Sheave Back End Drive
3	000022821	Special Pin (Custom)
4	000023673	Sheave
5	000023758BG	Gasket 0.38 X 0.41 X 0.04 (Bag of 10)
6	070003221	Cap Screw, Hex Head, 3/8-16 X 3.50
7	612088223	Back End Gearbox Kit 60Hz Odd
8	612088224	Back End Gearbox Kit 60Hz Even
9	612088221	Back End Gearbox Kit 50Hz Odd
9	088004606	Back End Gearbox, Odd Machine, 50Hz
9	090003512	Back End Motor and Gearbox Assembly (50Hz Odd)
10	612088222	Back End Gearbox Kit 50Hz Even
10	090003513	Back End Motor and Gearbox Assembly (50Hz Even)
11	090001130	Distributor Drive Housing
12	090003508	Tensioner Assembly
13	090003509	Back End Motor Mount Weldment
14	090003766	Back End Motor (60Hz)
14	090003766-01	Back End Motor, 60 Hz
15	088004650	Back End Motor Drip Pan
16	090004519	Spacer
17	090007310-02	Motor Back End, 50 Hz
18	807358060BG	Set Screw, Socket Head Cup Point, 5/16-24 X 0.38 (Bag of 10)
-	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
-	809865165BG	Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10)
21	809865245BG	Cap Screw, Hex Head, 3/8-16 X 1.50 (Bag of 10)
22	809865325BG	Cap Screw, Hex Head, 3/8-16 X 2.00 (Bag of 10)
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
25	907000300BG	Hi-Pro Key, 504 (Bag of 10)
26	907201000	Square Key, 0.19 X 1.25
27	907202600	Gear Shaft Square Key, 0.19 X 1.88
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
29	963600002BG	X-Washer, 1/4", 9000-16 (Bag of 10)
-	090003514	Back End Motor and Gearbox Assembly (60Hz Odd)
-	090003515	Back End Motor and Gearbox Assembly (60Hz Even)
-	090003550	Drag Break with Heat Shield
-	090003626	Band End Motor End Bell
-	090003630	Klixon Thermal Protector
-	090003634	Capacitor Franklin
-	090003645	Carpet Drive Assembly Back End 50Hz
-	090003665	Klixon Thermal Protector
-	090003763	Cable, Back End Motor TO 8290 Chassis
-	090003764	Back End Motor Adapt Cable
-	090004505	Motor-Back End 50Hz
-	090004546	Back End Rotor 60Hz
-	090004557	End Bell Assembly 50 and 60Hz PSP
-	090004558	Solid State Start Switch 50Hz
-	090004560	Start Switch 60Hz
-	090005766	Cable Back End Motor
-	090007530	Gearbox Mounting Bracket
-	610900189	Back End Gear Drive Kit
-	610900085	Back End W/Gear Replacement Kit 50Hz
-	610900090	Back End Worm Gear Replacement Kit 60Hz
-	610900100	Distributor Drive Replacement Kit 50/60Hz
-	610900105	Pinwheel Drive Replacement Kit 50/60Hz
-	610903429	Front End Back End Hardware Kit
-	718507023	1/4 NPT Plug Pipe Socket
-	785501040	1/4-18 NPT Sq Plug Breather
-	785501616	Input Shaft Seal, Hub City and IPTS Gearboxes
-	785503019	Carpet Drive Shaft with Integral 18-Tooth Spur Gear
-	785503030	Worm Shaft, 6:1, 60Hz
-	785503077	Front End Gearbox Oil Seal for Worm Input Shaft
-	907202500	Motor Shaft Rectangular Key, 0.19 X 1.38
-	919101900	O-Ring
-	919102200	O-Ring
