QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8290 - 90 XL Back End Back End Assembly

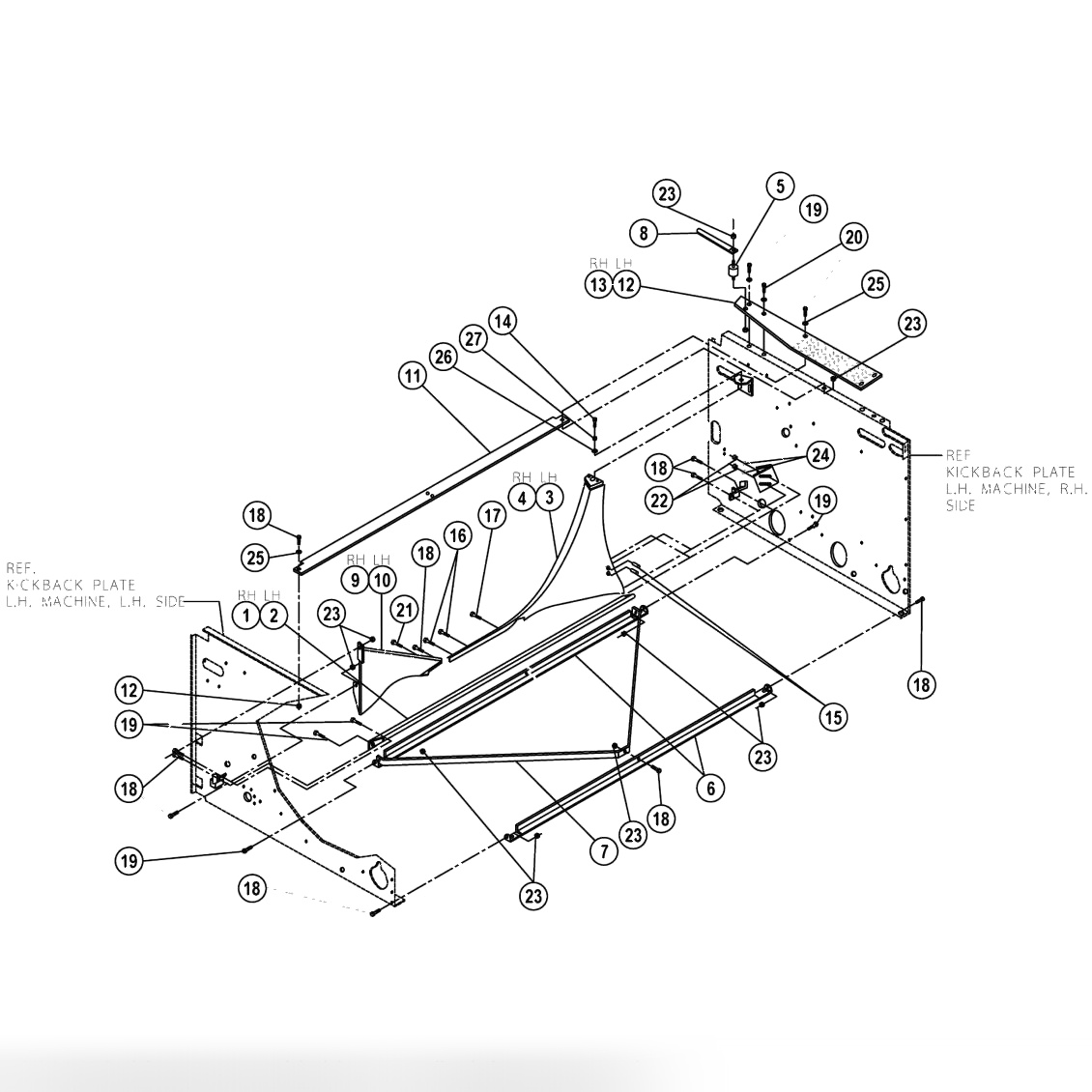

Back End Assembly

Позиция	Артикул	Наименование
1	000027099	Apron and Mat Assembly Right Hand (EFF. S/N 41898 and UP)
2	000027100	Apron and Mat Assembly Left Hand (EFF. S/N 41898 and UP)
3	000027368	Plow & Mat Assembly LG RH for LH Machine
4	000027372	Plow & Mat Assembly LG LH for RH Machine
5	000029068	Rubber Mount - Pin Elevator
6	070001184	Strap Weldment
7	070001185	Brace
8	070001195	Pin Seating Rod
9	070001412	Plow & Mat Assembly SM RH
10	070002169	Plow & Mat Assembly Sm LH
11	070007359	Support Bracket
12	088001120	Even Machine Tread Plate
13	088001121	Odd Machine Tread Plate
14	808566160BG	Cap Screw, Button Head, 3/8-24 X 1.00 (Bag of 10)
15	808849120BG	Cap Screw, Flat Head, 1/4-20 X 0.75 Bg/10
16	808858120BG	Cap Screw, Flat Head, 5/16-24 X 0.75 Bg/10
17	808858240BG	Cap Screw, Flat Head, 5/16-24 X 1.50 Bg/10
18	809857125BG	Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10)
19	809857165BG	Cap Screw, Hex Head, 5/16-18 X 1.00 (Bag of 10)
20	809857205BG	Cap Screw, Hex Head, 5/16-18 X 1.25 (Bag of 10)
21	809858125BG	Cap Screw, Hex Head, 5/16-24 X 0.75 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)
-	948753102BG	Flat Washer 0.28 X 0.63 X 0.06 (Bag of 10)
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
-	948767132BG	Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10)
-	951164002BG	Spring (Split) Lock Washer 3/8 (Bag of 10)
-	610900069	Hardware Bag Back End
