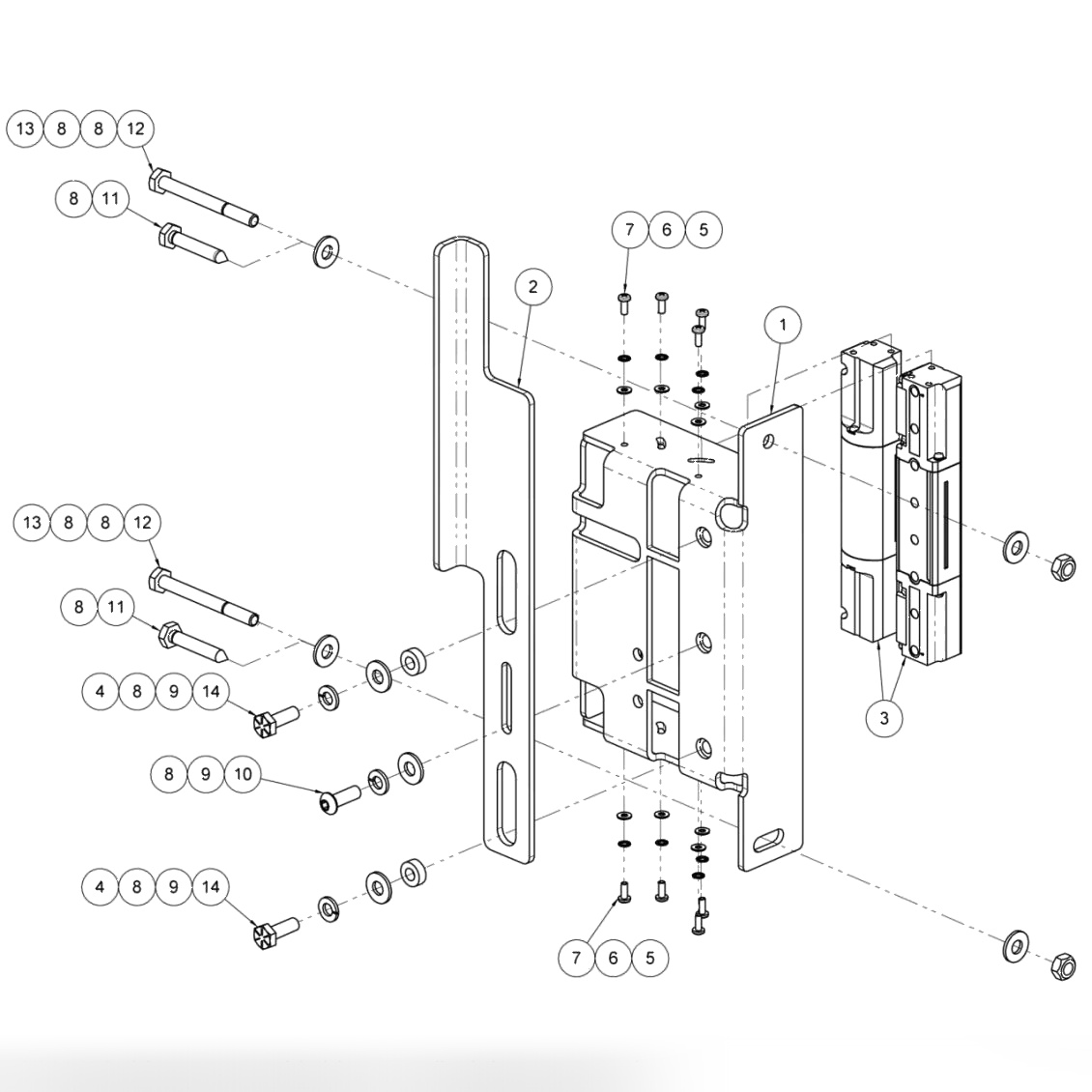

Mask Light Curtain Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
088200446
|
Mask Light Curtain Bracket Weldment |
| 3 |
088200373
|
Light Curtain Assembly |
| 5 |
945520060
|
Flat Washer #4 Machine, Zinc Finish |
| 6 |
954003060
|
Internal Tooth Lock Washer M3 D-6797J, Zinc Finish |
| 7 |
863030080
|
Machine Screw, Pan Head, M3-.5 X 8mm |
| 8 |
948753101
|
Flat Washer 1/4 X 0.27 X 0.61 X 0.05 SAE, Black Oxide Finish |
| 9 |
951148008
|
Medium Spring (Split) Lock Washer 1/4 ANSI |
| 10 |
808549120BG
|
Cap Screw, Button Head, 1/4-20 X 0.75 Bg/10 |
| 11 |
810548240
|
1/4 x 1 1/2 Lag Screw |
| 12 |
809849405BG
|
1/4-20 x 2 1/2 Scr Hx Bg/10 |
| - |
844049002BG
|
Hex Lock Nut, 1/4-20 (Bag of 10) |
| - |
809849125
|
Cap Screw, Hex Head, 1/4-20 X 0.75 |
| - |
088200445
|
Mask Light Curtain Assembly |
| - |
088200700
|
Light Curtain Alignment Tool |
