QubicaAMF Pinspotter Parts 8270 Front End Table Table Assembly

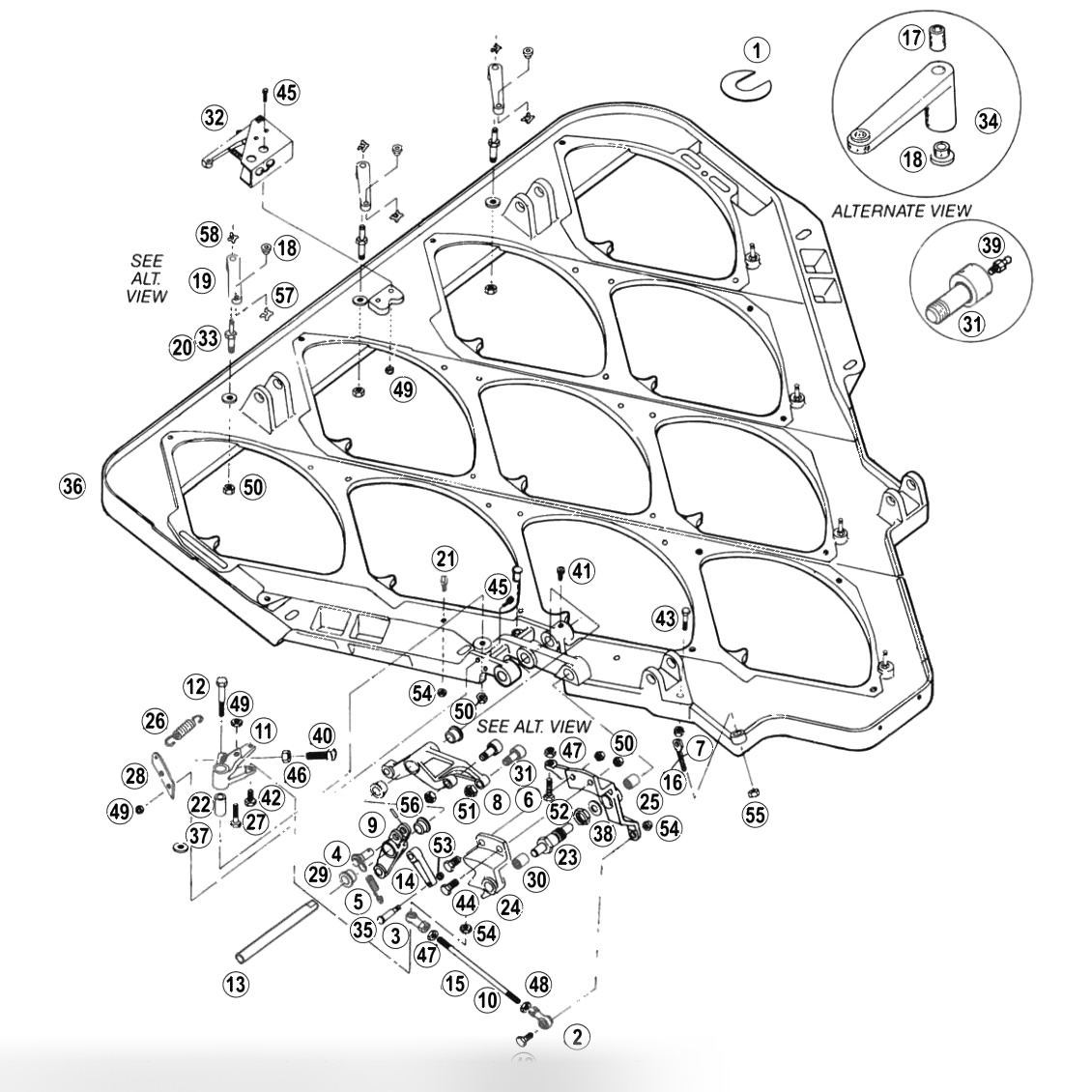

Table Assembly

Позиция	Артикул	Наименование	Цена
№1	000021784	Slotted Washer	210 ₽
№2	000022737	1/4 Rod End Left Hand Thread	1 070 ₽
№3	000022738	1/4 Rod End Right Hand Thread	1 070 ₽
№4	070001804	Pivot Weldment	5 110 ₽
№5	070001807	Respot Finger Spring	330 ₽
№6	070001871	Cap Screw, Hex Head, 1/4-28 X 1.50, Grade 8	100 ₽
№7	070002577	Stud Spring Yoke Asm	2 200 ₽
№8	070002578	Spot Lever Assembly	12 620 ₽
№9	070002579	Finger Lever Assembly	9 730 ₽
№10	070002581	Tie Rod	500 ₽
№11	070002583	Link Assembly	10 770 ₽
№12	070002584	Pin Bell Crank	3 350 ₽
№13	070002585	Shaft Lever Table Asm	6 870 ₽
№14	070002590	Finger Link	1 160 ₽
№15	070002594	Tie Rod Assembly	3 990 ₽
№16	070002596	Spring Yoke Return (Not Shown on Diagram)	2 470 ₽
№17	070002652BG	Bearing Sleeve, 0.25 X 0.31 X 0.50, Long (Bag of 20)	1 340 ₽
№18	070002653BG	Flange Bushing, 0.25 X 0.31 X 0.38 (Bag of 20)	1 240 ₽
№19	070002680	Lever Respot Assembly	4 740 ₽
№20	070002681BG	Pin 1/4, Respot Lever Pivot, Bag of 10	13 800 ₽
№21	070002702	Stop Respot	3 830 ₽
№22	070002715	Bearing Sleeve, 0.50 X 0.68 X 1.50	290 ₽
№23	070002726	Table Assembly Shaft	9 800 ₽
№24	070002727	Shifter Link Assembly	14 140 ₽
№25	070002725	Cam Link	12 360 ₽
№25	070002728	Cam Link Assembly	22 400 ₽
№26	070002732BG	Tension Spring (Bag of 2)	1 760 ₽
№27	070002733	Screw-Cam Link	920 ₽
№28	070002734	Bracket	1 380 ₽
№29	070002745BG	Flange Bushing, 0.63 X 0.81 X 0.50 (Bag of 10)	1 730 ₽
№30	070002781	Cam Link Table Assembly Roller Bearing, Needle	1 610 ₽
№31	070002816	Cam Follower	2 550 ₽
№32	070006695	Bracket-Switch Assembly	5 480 ₽
№33	070007616BG	Pin 5/16, Bag of 10	13 450 ₽
№34	070007622	Lever Respot with Flange Bushing	4 210 ₽
№35	090005629	Special Pin (Custom)	1 180 ₽
№37	701316041BG	Roller Bearing, Thrust, 0.51 X 1.00 X 0.13 (Bag of 10)	2 190 ₽
№38	701320046	Bearing, Thrust, 0.625 X 1.00 X 0.13	410 ₽
№39	710501009	Grease Fitting	160 ₽
№40	806749160BG	1/4-20x1 Bg/10 Scr StSqHdOvPt	1 580 ₽
№40	806749160	Scr Sqhd Set1/4-20X1	0 ₽
№41	807357060BG	5/16-18 x 3/8 Screw SHS Bg/10	710 ₽
№41	807357060	Set Screw, 5/16-18 X 3/8	0 ₽
№42	809849165BG	Cap Screw, Hex Head, 1/4-20 X 1.00 (Bag of 10)	420 ₽
№43	809865125BG	Cap Screw, Hex Head, 3/8-16 X 0.75 (Bag of 10)	740 ₽
№44	809865205BG	Cap Screw, Hex Head, 3/8-16 X 1.25 (Bag of 10)	800 ₽
№45	810239120BG	Cap Screw, Socket Head, 10-24 X 0.75 (Bag of 10)	610 ₽
-	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)	450 ₽
№47	835550002BG	Hex Finish Jam Nut, 1/4-28 (Bag of 10)	410 ₽
№48	835650002BG	Hex Finish Jam Nut, 1/4-28, Left Hand Thread (Bag of 10)	890 ₽
№49	839539002BG	Hex Lock Nut, 10-24, HT (Bag of 10)	1 010 ₽
-	839665002BG	Hex Lock Nut, 3/8-16 (Bag of 10)	1 850 ₽
№51	840066002BG	Hex Lock Nut, 3/8-24, Thin (Bag of 10)	1 430 ₽
№52	840600002BG	7/8 x14 Nut Flex LK	22 410 ₽
№52	840600002	7/8 x 14 Flx CAD L/T HLN	0 ₽
№53	843140002BG	Keps Nut, 10-32 (Bag of 10)	340 ₽
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)	450 ₽
-	844057002BG	Curtain Protection Pad Hex Lock Nut, 5/16-18 (Bag of 10)	390 ₽
№56	913423160BG	Spring Pin, 1/8 X 1 (Bag of 10)	620 ₽
№57	963200002BG	X-Washer, 1/8", 9000-8 (Bag of 10)	950 ₽
-	963400002BG	X-Washer, 3/16", 9000-12 (Bag of 10)	960 ₽
-	030003943	Motor Crank	9 200 ₽
-	070001583	Pin Front End Assembly	1 780 ₽
-	070002751BG	Pin Respot Lever Pivot Bag/10	12 880 ₽
-	070006519	Rs/Cup/Spot Height Gauge	4 250 ₽
-	070006587	Table Flag Locating Tool	5 430 ₽
-	088001216	Frame/Sweep/Distributor Gauge	7 270 ₽
-	088001217	Yoke Toe Gauge	8 110 ₽
-	792020044	Combination Square	3 000 ₽
-	792505005	Spring Puller	4 280 ₽
