QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8270 Electrical Table Wireway Assembly

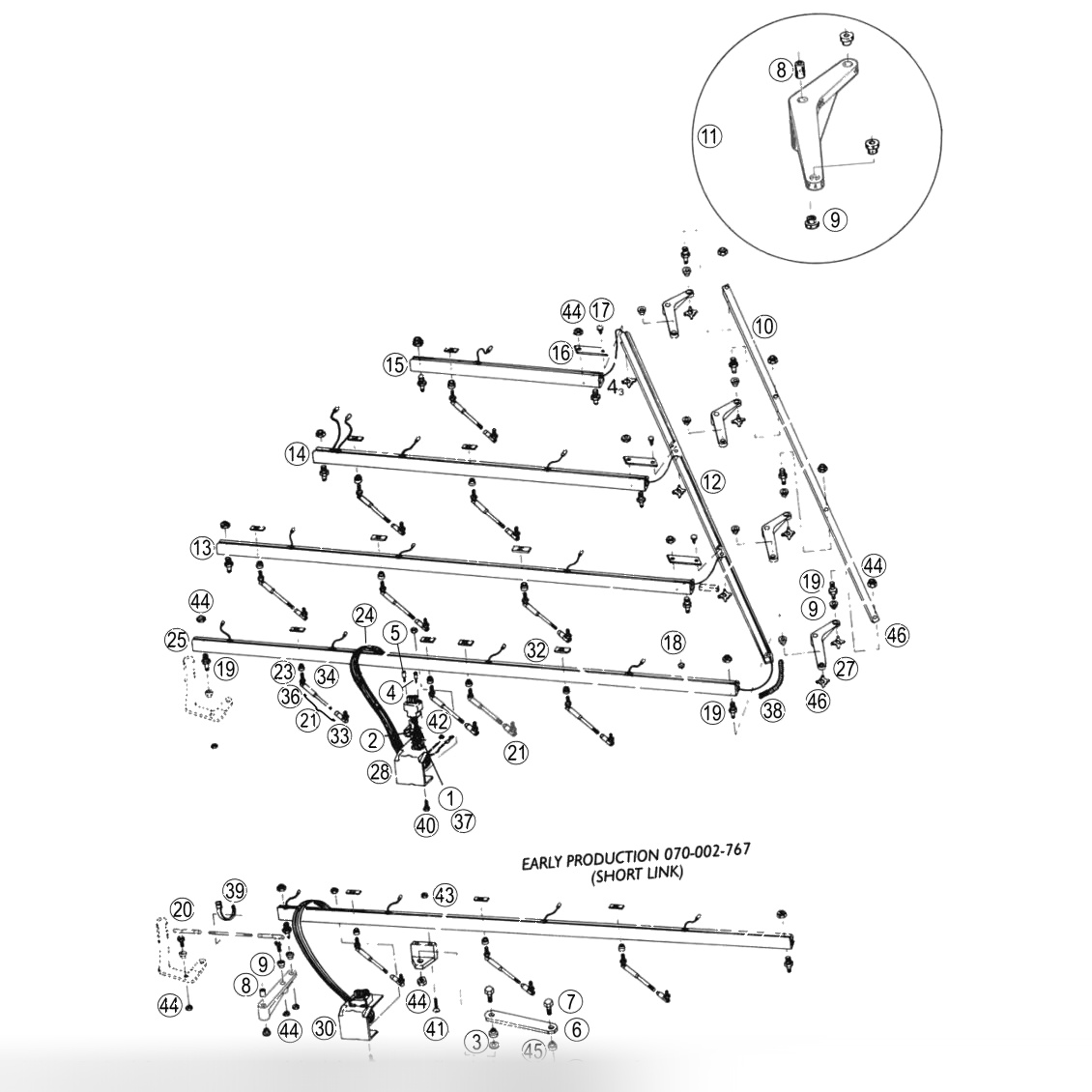

Table Wireway Assembly

Позиция	Артикул	Наименование
1	000025079	Block Male 14 Pin
2	000025556BG	Lock Spring with Catch (Bag of 2)
3	000026865BG	Flat Washer 0.25 X 0.41, Cadmium (Bag of 10)
4	000028441BG	Guide Socket, Bag of 10
5	000028442BG	Special Pin (Custom) (Bag of 10)
6	900205053BG	Flange Bushing, 0.32 X 0.44 X 0.31, Bronze (Bag of 5)
7	070002619	Pin Actuator Shaft
8	070002652BG	Bearing Sleeve, 0.25 X 0.31 X 0.50, Long (Bag of 20)
9	070002653BG	Flange Bushing, 0.25 X 0.31 X 0.38 (Bag of 20)
10	070002671	Respot Link Connector
11	070002678	Respot Lever (5/16 pivot hole)
12	070002766	Link Wireway
13	070002768	Link 8 Pin
14	070002769	Link 9 Pin
15	070002770	Link 10 Pin
16	070002771	Plate Table Asm
17	070002772BG	Pin, Bag of 10
18	070002773BG	Grommet, Table Assembly (Bag of 10)
19	070002774BG	Special Pin (Custom) (Bag of 2)
20	070002813	Respot Link
21	070002814	Link Assembly - Respot Cell
23	070002815BG	Bearing, 0.25 X 0.31 X 0.31 (Bag of 10)
24	070005602	Cable
25	070006669	Link 7 Pin
27	070007623	Respot Lever (1/4 Pivot Hole)
28	090002538	Table Connector Bracket
30	610704010	Table Cable Replacement Kit
32	724507002BG	Speed Nut, C-160-1420 (Bag of 10)
33	730023015	Shell Cup Assembly
34	730027019	Stud, Ball Head
36	730036025	Clip - Ball Joint (Silver)
37	760011197BG	Special Pin (Custom) (Bag of 20)
38	770008009	Poly Spirap 5"
39	770011029	Tyrap-7.31 Inch Lg
40	809849085	Cap Screw, Hex Head, 1/4-20 X 0.50
41	812039162BG	#10-24 x 1 Scr FHM
41	812039162	Screw-FLHd 10-24 X 1 (Bag
42	834821000BG	Hex Finish Nut, 4-40, Brass Finish (Bag of 10)
43	839539002BG	Hex Lock Nut, 10-24, HT (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
46	963200002BG	X-Washer, 1/8", 9000-8 (Bag of 10)
