QubicaAMF Запчасти пинсеттеров | Pinspotter Parts 8270 Electrical Front End Electrical Installation Right Hand Assembly

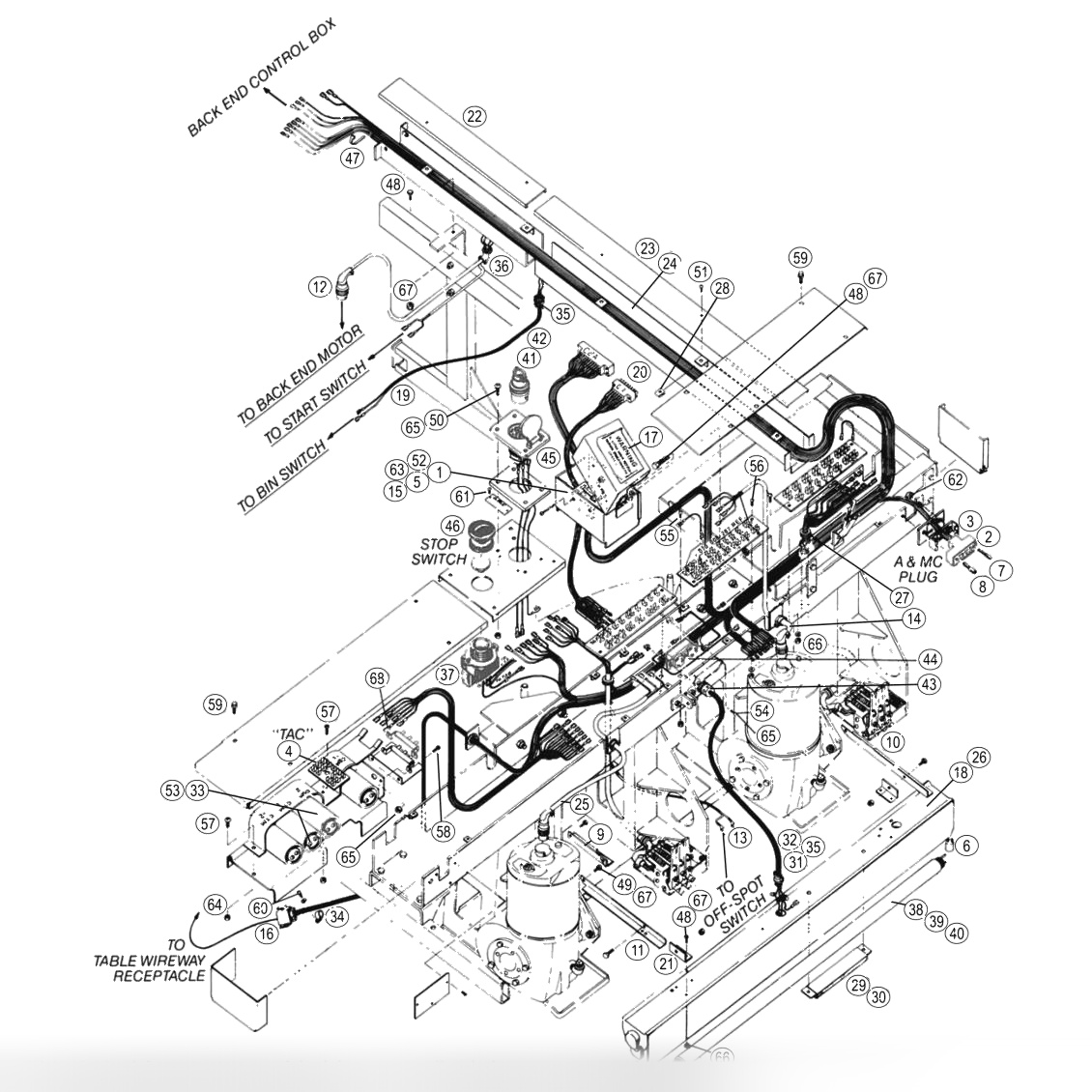

Front End Electrical Installation Right Hand Assembly

Позиция	Артикул	Наименование
1	000022296BG	Insulator, Switch
2	000025078	Block TerminalAmp
3	000025556BG	Lock Spring with Catch (Bag of 2)
4	000025603	Terminal Board
5	000026247	Switch
6	000027444	Flourescent Lamp Starter
7	000028441BG	Guide Socket, Bag of 10
8	000028442BG	Special Pin (Custom) (Bag of 10)
9	070001698	Pit Light Bracket
10	070001907	Pit Light Mounting Bracket, Right Hand (10 Pin)
11	070001908	Pit Light Mounting Bracket, Left Hand (7 Pin Side)
12	610070305	8270 Back End Motor Cable Conversion Kit
13	070005534	Cable Assembly-off Spot
15	070005570	Plug Duct Weldment
16	070005604	Cable-Table to Crossbeam
17	070005614	Warning Decal
18	070005685	Universal Pit Light
19	070006272	Switch Cable Assembly
20	070006473	Cable Assembly C1
21	070007370	Angle Pit Light Mount
22	070007745	Cover-Cable Duct Ext
23	070007747	Wireway Cover
24	070007748	Front Wireway
25	610070304	8270 Front End Motor Connector Conversion Kit
26	090008017	Dual Pit Light Assembly 36"
27	711520017	Push-In Grommet, 0.88 X 0.19, Rubber, Strn Relief
28	724511074	Speed Nut, 10-32, Tinnerman
29	740501001	Ballast-120/60
30	740501018	Ballast, Universal 115-277v
31	000021654	Pit Light Cord Asm (4081)
31	742502002	Cap-Nylon Insl Bu2007
32	742503004	Splice Cap Buch2006s
33	743000020	Capacitor 460 552 MFD 110 AC
34	744203014	Clamp-Burndy Hp-6N
35	746001016	Connector
36	746003008	90 degree Connector
37	746605011	Contact Block
38	751001254	Lamp, Daylight, F30t 12/Dirs
39	751001460	Bulb, Blacklight, 36", F30t8
40	751001471	Bulb, Daylight, 36", F25t8
41	754010336	Plug-3 Wire 30A 125V
42	754010337	Plug Arrowhart 50Hz
43	754020312	Cnctr and Prngmale 4720
44	755010303	Receptacle 3 Wire Twist Lock
45	755020359	Recpt-3 Wire 30A 125V
46	612070025	8270 Stop Switch Replace Kit
47	770011011BG-100	Cable Tie, Harmony Ball Return
48	809849085	Cap Screw, Hex Head, 1/4-20 X 0.50
-	809849125	Cap Screw, Hex Head, 1/4-20 X 0.75
50	812627122	SCR-RDHD+ 6-32X3/4
51	812840082BG	Screw, Round Head, 10-32 X 0.50 (Bag of 10)
52	813227162	Machine Screw, Pan Head, Phillips Drive, 6-32 X 1.00
53	813340042BG	#10-32 x1/4CD Scr PH
53	813340042	#10-32 x 1/4 Screw PNHDCD
54	818227082BG	Machine Screw, Pan Head, 6-32 X 0.50 Sems Bg/10
55	818233082BG	Machine Screw, Rnd Head, 8-32 X 0.50 Sems Bg/10
56	818233122BG	#8-32 x 3/4 Scr SMRD+ Bg/10
56	818233122	#8-32 x 3/4 SCR-SMRD+
57	818239122BG	#10-24 x 3/4 Scr SMRD+ Bg/10
57	818239122	SCR-SMRD+ 10-24X3/4
58	818627042BG	#6-32 x 1/4 Scr SMRD Bg/10
58	818627042	Scr-Smrd #6-32X1/4 (Bag 10)
59	826032060BG	Screw, #8 X 0.38, TAT-WA (Bag of 10)
60	828127062BG	#6-32 x3/8 Scr TDRD+TYD
60	828127062	Scr-Tdrd #6-32X3/8Tyd (Bag 10)
61	829905042	Screw Type U Point, #0 X 0.25, DRPK
62	834621000	Nut-Hex 4-40 Brass
63	839527002BG	Hex Lock Nut, 6-32, Thick (Bag of 10)
64	839539002BG	Hex Lock Nut, 10-24, HT (Bag of 10)
65	843127002BG	Keps Nut, 6-32 (Bag of 10)
66	843133002BG	Keps Nut, 8-32 (Bag of 10)
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
68	916931256	Resistor 20w 1.25K
-	275002013	Universal Pit Light Interface Assembly
-	751001423	Lamp Flourescent 30W
