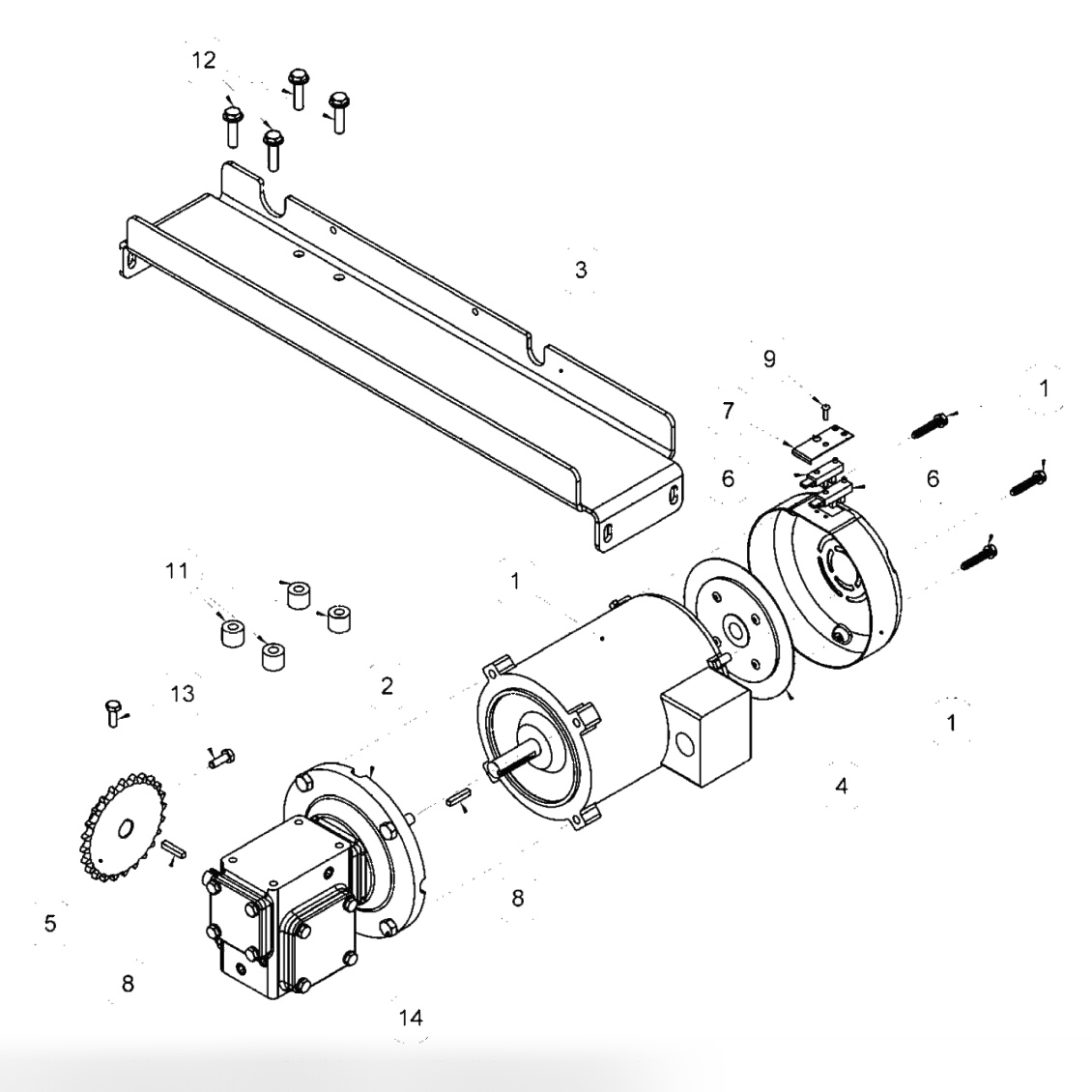

Motor, Reduction Gear & Encoder Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
051030015
|
TMS Drawbar Motor |
| 1 |
311110000
|
Deck Motor Assembly |
| 2 |
612051107
|
TMS Drawbar Gearbox Replacement Kit |
| 3 |
612051103
|
TMS Motor Bracket Installation Kit |
| 4 |
051030002-01
|
Motor Encoder Assembly |
| 4 |
322222000
|
Motor Encoder Plate Assembly |
| 5 |
9102292
|
40B24H3 4K3 5/8 Bore Sprocket |
| 6 |
770060251
|
Encoder Optical Sensor |
| 7 |
302220000
|
Connection Retainer |
| 8 |
302241000
|
Square Key, 0.187 X 1.00 |
| 9 |
7016410632050
|
Machine Screw, Pan Head, 6-32 X 0.50 |
| 11 |
722501078
|
Spacer, Zinc Finish |
| 12 |
801757201
|
Frame Bolt, Hex Head Flange, 5/16-18 X 1.25 |
| - |
809849125
|
Cap Screw, Hex Head, 1/4-20 X 0.75 |
| - |
809865165BG
|
Cap Screw, Hex Head, 3/8-16 X 1.00 (Bag of 10) |
| - |
051020026
|
Bracket Drawbar Motor |
| - |
051030020-01
|
Varvel Gearbox |
| - |
051030025
|
TMS Gearbox Coupling Kit "G3" |
| - |
301100500
|
Motor Brush |
| - |
051030021
|
TMS Gearbox Bracket |
| - |
860006128
|
Button Head Socket Cap Screw |
