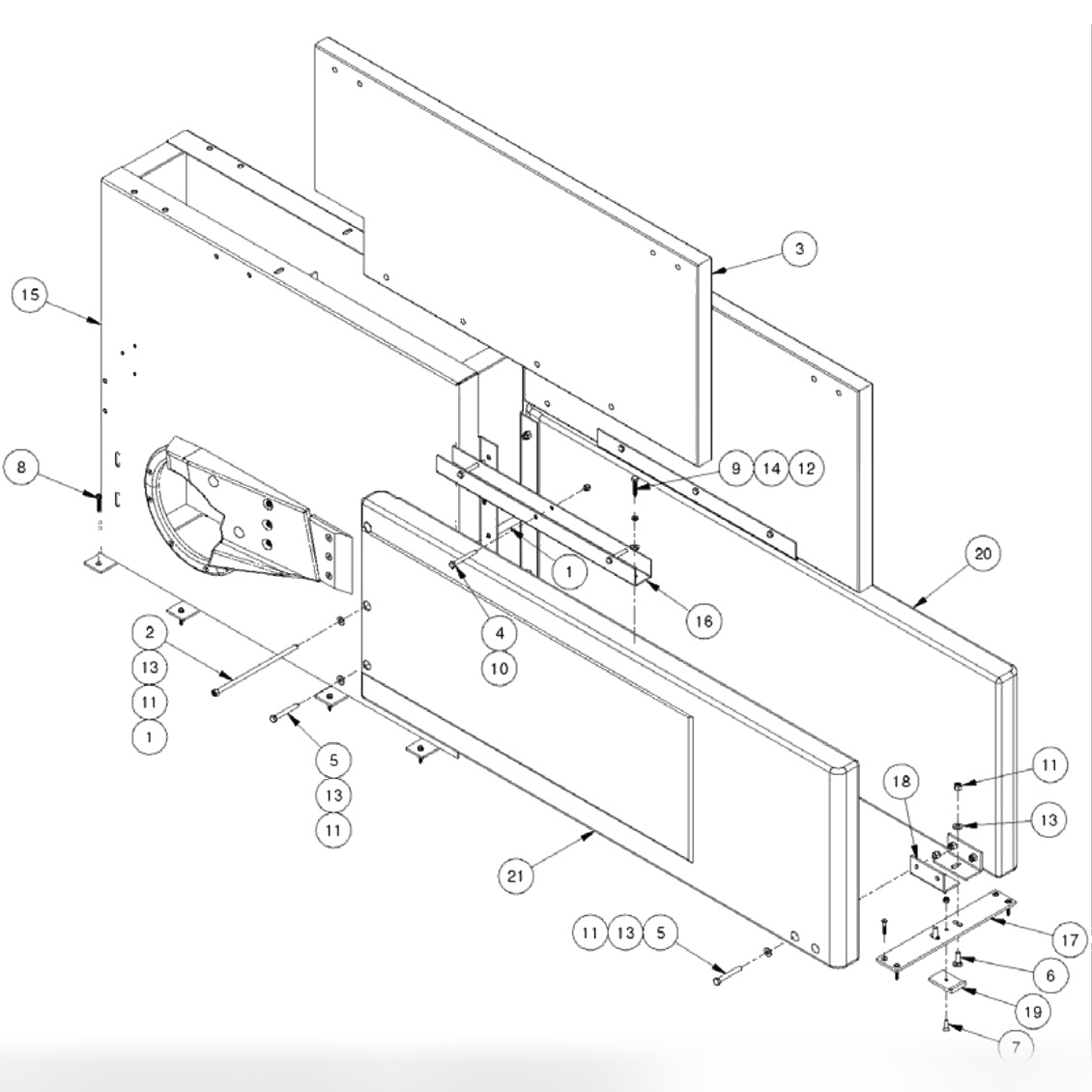

Double Kickback Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
302665000
|
Spacer Kickback |
| 2 |
302666000
|
Special Bolt for Kickback |
| 3 |
30W018045
|
Pinsetter Support, Tenpin |
| 4 |
809857445
|
Cap Screw, Hex Head, 5/16-18 X 2.75 |
| 7 |
7016312520100
|
Machine Screw, Flat Head, 1/4-20 X 1.00 |
| - |
7024201400150
|
7024201400150 |
| 10 |
839057002BG
|
Hex Lock Nut, 5/16-18, Zinc Finish (Bag of 10) |
| 11 |
838765002BG
|
Nylock Nut, 3/8-16, Bg10 |
| - |
948761112BG
|
Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10) |
| - |
948767132BG
|
Flat Washer 3/8 X 0.40 X 0.80 X 0.05 SAE (Bag of 10) |
| 14 |
01063
|
Medium Spring (Split) Lock Washer 5/16 ANSI, Zinc Finish |
| 15 |
9222001
|
Ball Return Kickback Asm |
| 16 |
M0180378
|
Kickback U-Bar, 24 |
| 19 |
P88018103
|
Plastic Ball Protector |
| 20 |
Q88018130L
|
TMS Tenpin Double Division |
| 21 |
Q88018130R
|
TMS Tenpin Double Division |
| - |
051060008
|
TMS Kickback Plate Screwed |
| - |
051060009
|
TMS Kickback Plate 2 Screwed |
| - |
858649087
|
Joint Connector Nut, 1/4-20, Black Oxide Finish |
| - |
051060000
|
U-Bar Shim |
