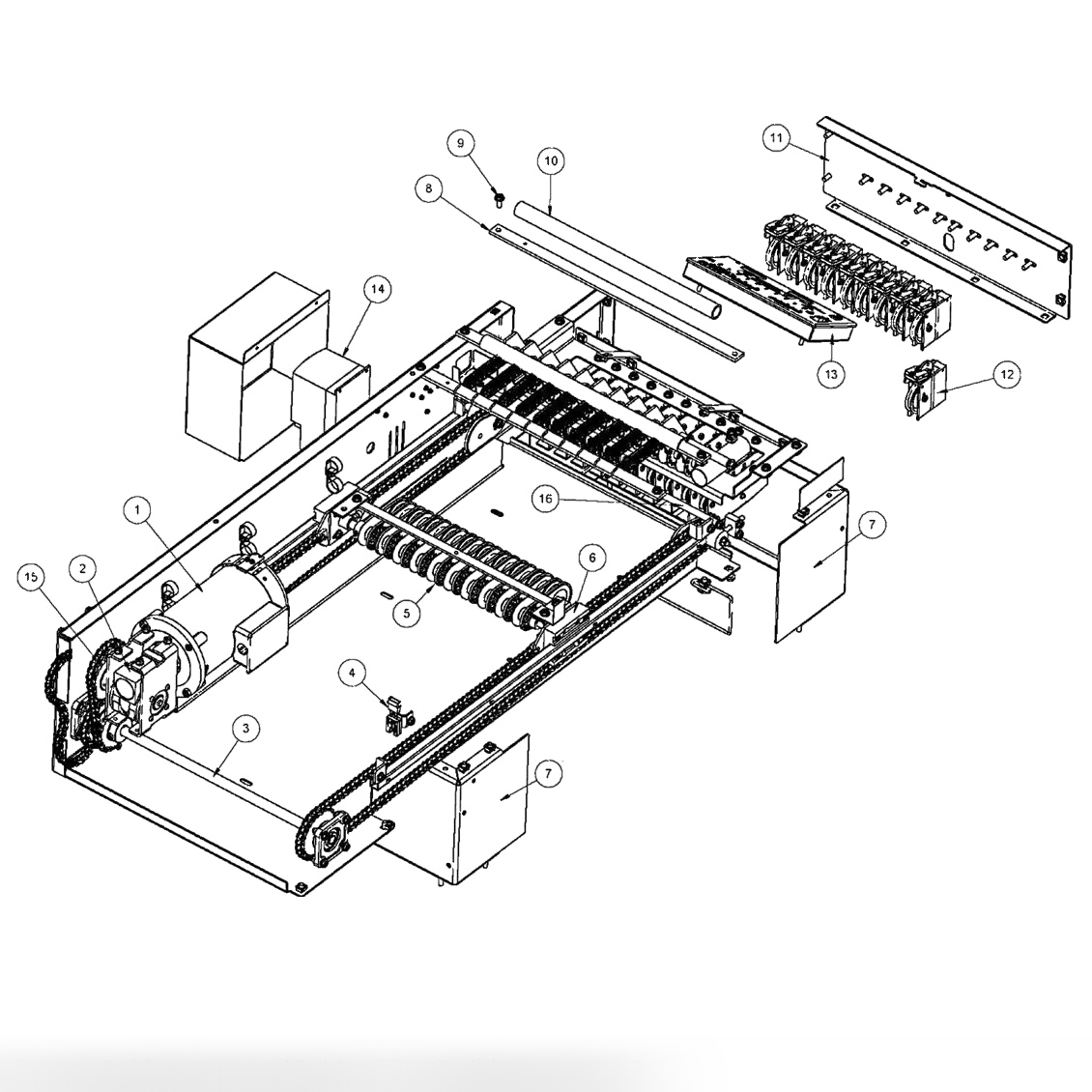

Main Assemblies
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
051090024
|
TMS Drawbar Motor Assembly |
| 4 |
SBECIL325FS
|
Optical Sensor Assembly, White |
| 5 |
051090011
|
Drawbar Assembly |
| 6 |
051200041
|
Drawbar Carriage Angle |
| 6 |
7016312520125
|
Machine Screw, Flat Head, 1/4-20 X 1.25 |
| 8 |
9102030
|
Reel Arm Stopper |
| 9 |
801757161BG
|
Screw, Hex Washer Head, 5/16-18 X 1 |
| 9 |
801757161
|
Frame Bolt, Hex Washer, 5/16-18 X 1.00 |
| 12 |
051090002
|
Pin Detector Assembly |
| 13 |
051040002
|
Pin Detector Board Assembly |
| 14 |
051090015
|
Drive Motor Controller (Programmed) |
| 15 |
051030009-1
|
Chain Motor Drive Set |
| 16 |
9102025
|
Shaft |
| - |
051090025
|
Reel Arm Shaft II |
| - |
051020012
|
HWY66 Block Chain |
