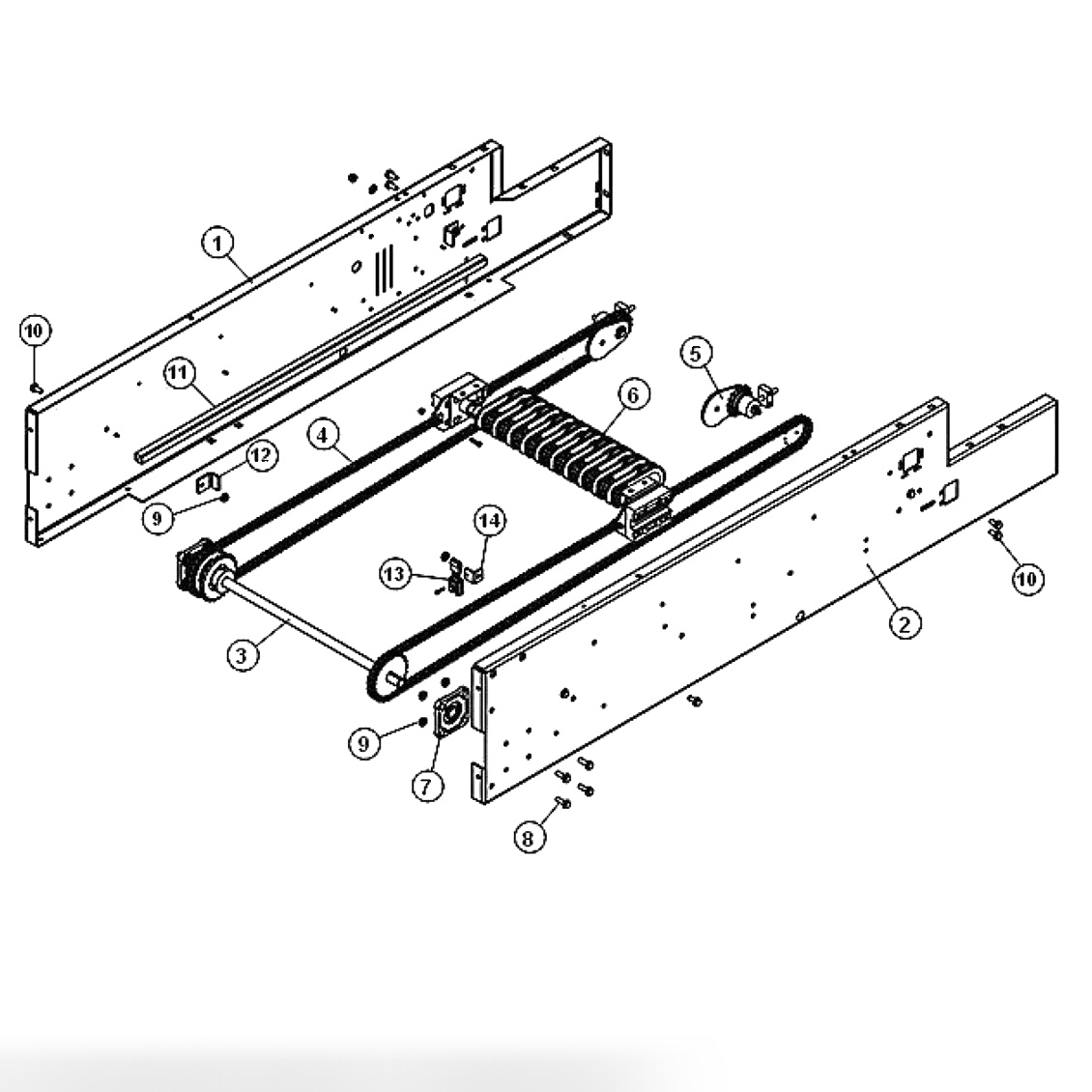

Frame
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
051020002
|
Outer Panel, 10-Pin Side |
| 2 |
051020004
|
Outer Panel, 7-Pin Side |
| 4 |
051200041
|
Drawbar Carriage Angle |
| 4 |
7016312520125
|
Machine Screw, Flat Head, 1/4-20 X 1.25 |
| 5 |
051090010
|
Chain Tensioner Assembly |
| 6 |
051090011
|
Drawbar Assembly |
| 7 |
M069021
|
Flange Bearing |
| 8 |
801757161BG
|
Screw, Hex Washer Head, 5/16-18 X 1 |
| 8 |
801757161
|
Frame Bolt, Hex Washer, 5/16-18 X 1.00 |
| 9 |
856057001
|
Hex Flange Lock Nut, 5/16-18 |
| 10 |
801757121
|
Frame Bolt, Hex Washer, 5/16-18 X 0.75, Grade 5 |
| 11 |
051020010
|
Drawbar Guide Bar |
| 12 |
9102017
|
Drawbar Stopper |
| 13 |
SBECIL325FS
|
Optical Sensor Assembly, White |
| 14 |
9102054
|
Optical Sensor Support Bracket |
