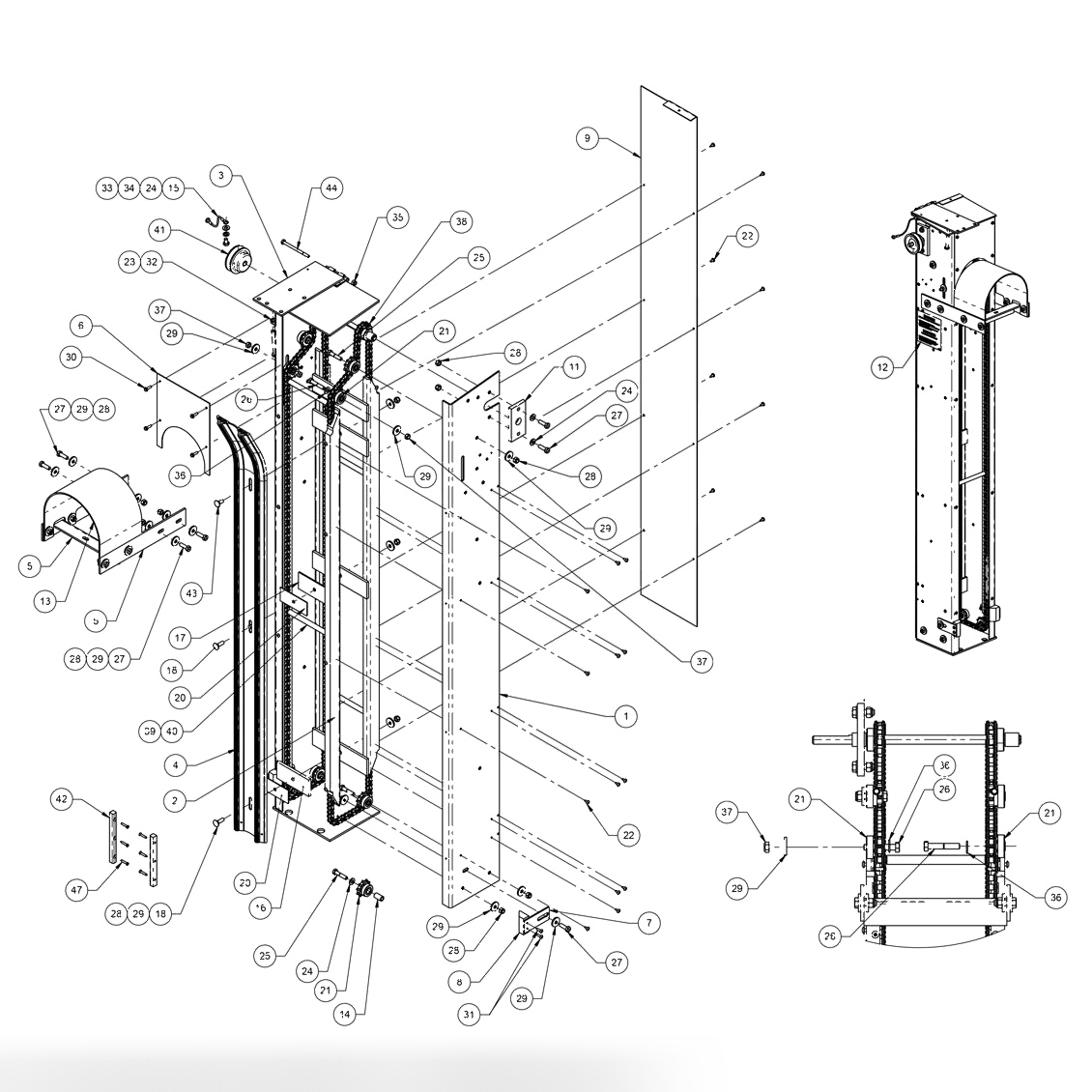

Highway 66 Ball Elevator Assembly

Позиция	Артикул	Наименование
1	060040008	Ball Lift Frame Assembly
2	P070069	Chain Guide
3	M070009	HWY66 Motor Drive Plate
5	M070194	Ball Lift Bridge
7	M070055	Ball Lift Bottom Protector
8	P70055	Bottom Ball Protector
9	M070196	HWY66 Elevator Rear Cover
10	M070007	Drive Shaft Assembly
11	M070067	Steel Bearing Block
12	WARNING	Warning Sticker 45 x 45
13	P70013	Ball Guard Outside
14	M07001002	Steel Bushing
16	50W070091	Ball Lift Trk Spcr 516
17	50W070090	Ball Lift Trk Spcr 18
18	7012003118100	Carriage Bolt, 5/16-18 X 1.00, Grade 5, Zinc Finish
21	M070010	Idler Sprocket 40B10
22	7024710800050	#8 X 1/2 Screw TH Tap
23	7016413118300	5/16-18 x3 Scr MSRH Roberts
-	948761112BG	Flat Washer 0.34 X 0.69 X 0.06 (Bag of 10)
25	809857245BG	Cap Screw, Hex Head, 5/16-18 X 1.50 (Bag of 10)
26	809857280	Cap Screw, Hex Head, 5/16-18 X 1.75
-	809857165BG	Cap Screw, Hex Head, 5/16-18 X 1.00 (Bag of 10)
28	839057002BG	Hex Lock Nut, 5/16-18, Zinc Finish (Bag of 10)
29	7050034100012	Flat Washer 0.34 X 1.00 X 0.13, Zinc Finish
30	826838120BG	#10 Hex Head Tek Screw Bg/10
31	7024710800075	Self Tapping Screw, Truss Head, #8 X 0.75
32	7038003118000	Keps Nut, 5/16-18
33	809857080BG	Cap Screw, Hex Head, 5/16-18 X 0.50 (Bag of 10)
34	01063	Medium Spring (Split) Lock Washer 5/16 ANSI, Zinc Finish
-	838549002	Hex Finish Nut, 1/4-20
38	SB070013	Ball Lift Chain Assembly
39	M070027	Cross Chain Travel Shaft
40	M070014	Chain Coupling Special
41	M070022	Pulley Carousel
42	P070071	Ball Guide Bottom
43	7012003118075	5/16-18 x 3/4 Bolt Carriage
45	7010003118075	Cap Screw, Hex Head, 5/16-18 X 0.75, Grade 5, Zinc Finish
47	7022310800100	#8 x 1 Wood Screw FH Soc
