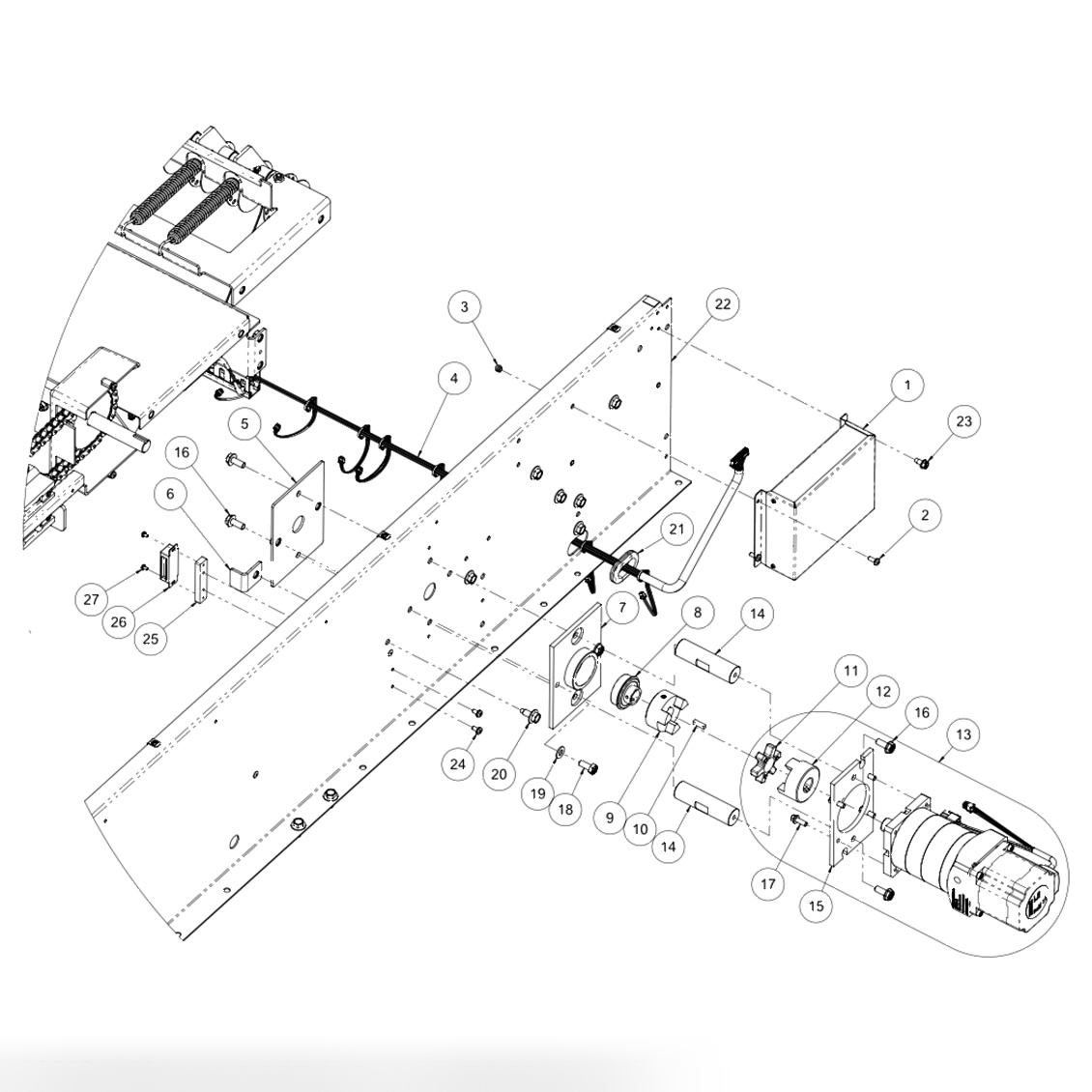

Gearmotor & Control Box
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
051200005
|
Side Frame, Left |
| 2 |
051200073
|
Machine Wire Harness |
| 3 |
051203110-01
|
EDGE String Control Box BD-01 |
| 5 |
051200310-01
|
Gearmotor Drawbar ASM |
| 6 |
051200311
|
Inline GB Mount Face |
| 7 |
051200312
|
Motor Mount, Spacer |
| 11 |
051200734
|
Drawbar Magnet Support |
| 12 |
051200309
|
Assembly, Inline Gearbox Mount, Back |
| 14 |
785501786
|
Coupling Hub, 3/4 Shaft |
| 15 |
785501787
|
Coupling Spider |
| 16 |
801757121
|
Frame Bolt, Hex Washer, 5/16-18 X 0.75, Grade 5 |
| - |
809857125BG
|
Cap Screw, Hex Head, 5/16-18 X 0.75 (Bag of 10) |
| 18 |
813233062BG
|
BG/25 Pan Hd Mach Screw |
| 19 |
818240062BG
|
Screw, Pan Head, 10-32 X 3/8, Bg/10 |
| 20 |
818240082
|
Machine Screw, Pan Head, Phillips Drive, 10-32 X 0.50 |
| 21 |
818757121
|
HWMS 5/16-18 X .75 BP DP |
| 25 |
907200800BG
|
Square Key, 0.19 X 0.72 Bg/10 |
| 26 |
948722111BG
|
Flat Washer 0.34 X 0.69, Black Oxide Finish (Bag of 10) |
| 27 |
948631062
|
Flat Washer #6 X 0.15 X 0.36 X 0.046 SAE, Zinc Finish |
