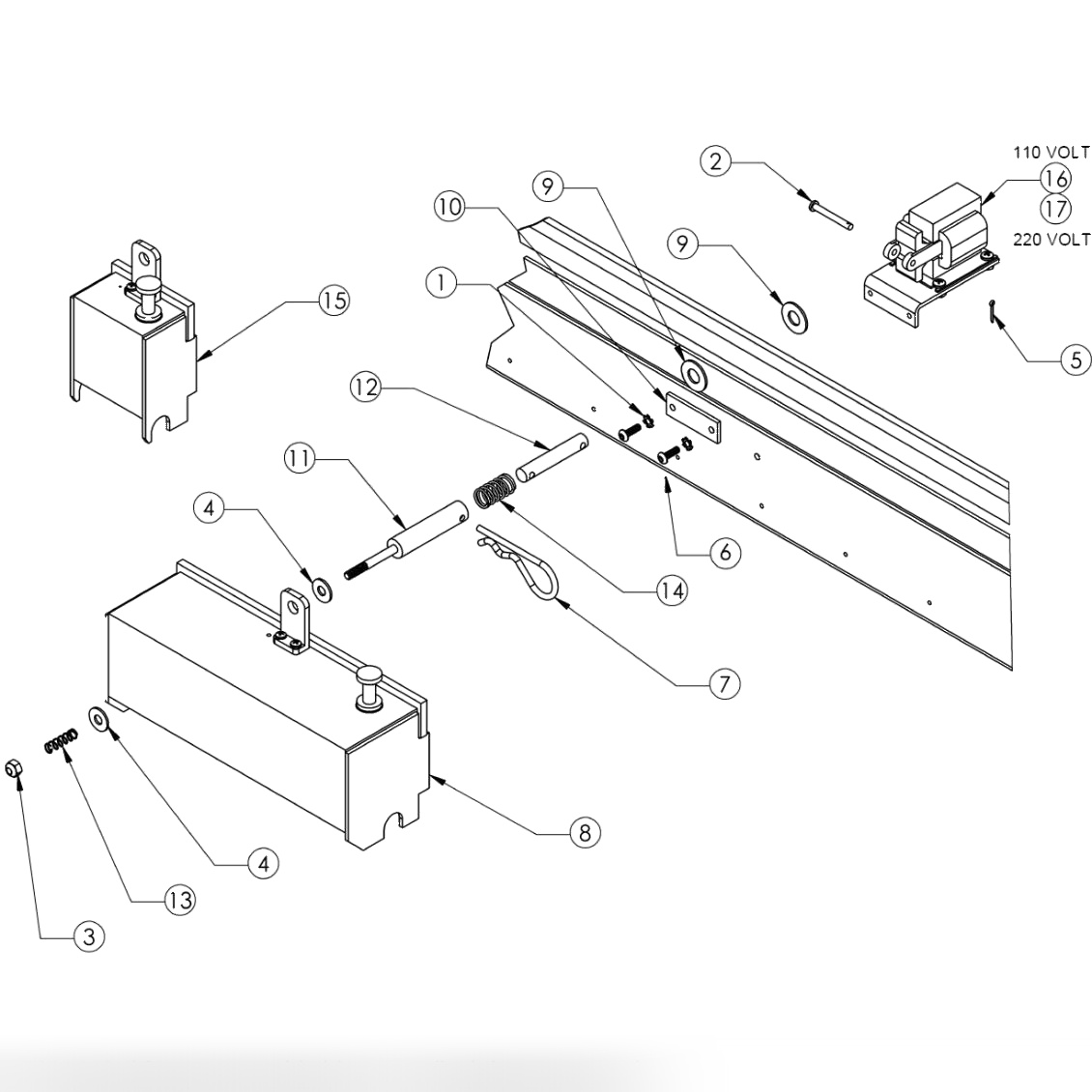

OIL TANK LINKAGE SYSTEM
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
957100002BG
|
External Tooth Lock Washer #10, Shakeproof (Bag of 10) |
| 2 |
01038
|
Clevis Pin, 3/16 X 1-1/2 |
| 3 |
838549002
|
Hex Finish Nut, 1/4-20 |
| 4 |
01056
|
Flat Washer 1/4 X 0.30 X 0.75 X 0.05 |
| 5 |
01080
|
Cotter Pin, 1/16 X 1/2 |
| 6 |
01608
|
10-32x 5/8 Screw Hx Soc Bn Hd |
| 7 |
294001007
|
Hitch Pin 1 |
| 8 |
294002020
|
Oil Tank Assembly, 10" Summit HVO |
| 9 |
A0403
|
Linkage Flat Washer 0.47 X 1.00 X 0.06, Aluminum |
| 10 |
A0408
|
Solenoid Mount Stiffener 1 |
| 11 |
A0603
|
Tank Pull Rod |
| 12 |
A0885
|
Oil Solenoid Linkage Assembly |
| 13 |
294002174
|
Oil Tank Linkage Spring 1 |
| 14 |
A5038
|
Oil Tank Return Spring 1 |
| 16 |
SA3039
|
Oil Solenoid Assembly 110V |
| 16 |
294002031
|
110V SolenoidS - Lane Machines (Oil) |
| 17 |
A0674
|
Oil Solenoid Bracket |
