QubicaAMF Оборудование зоны подхода | Front of Center Parts Lane Machines Summit Frame & Body FRAME ASSEMBLY - RIGHT SIDE PLATE - SOLENOIDS

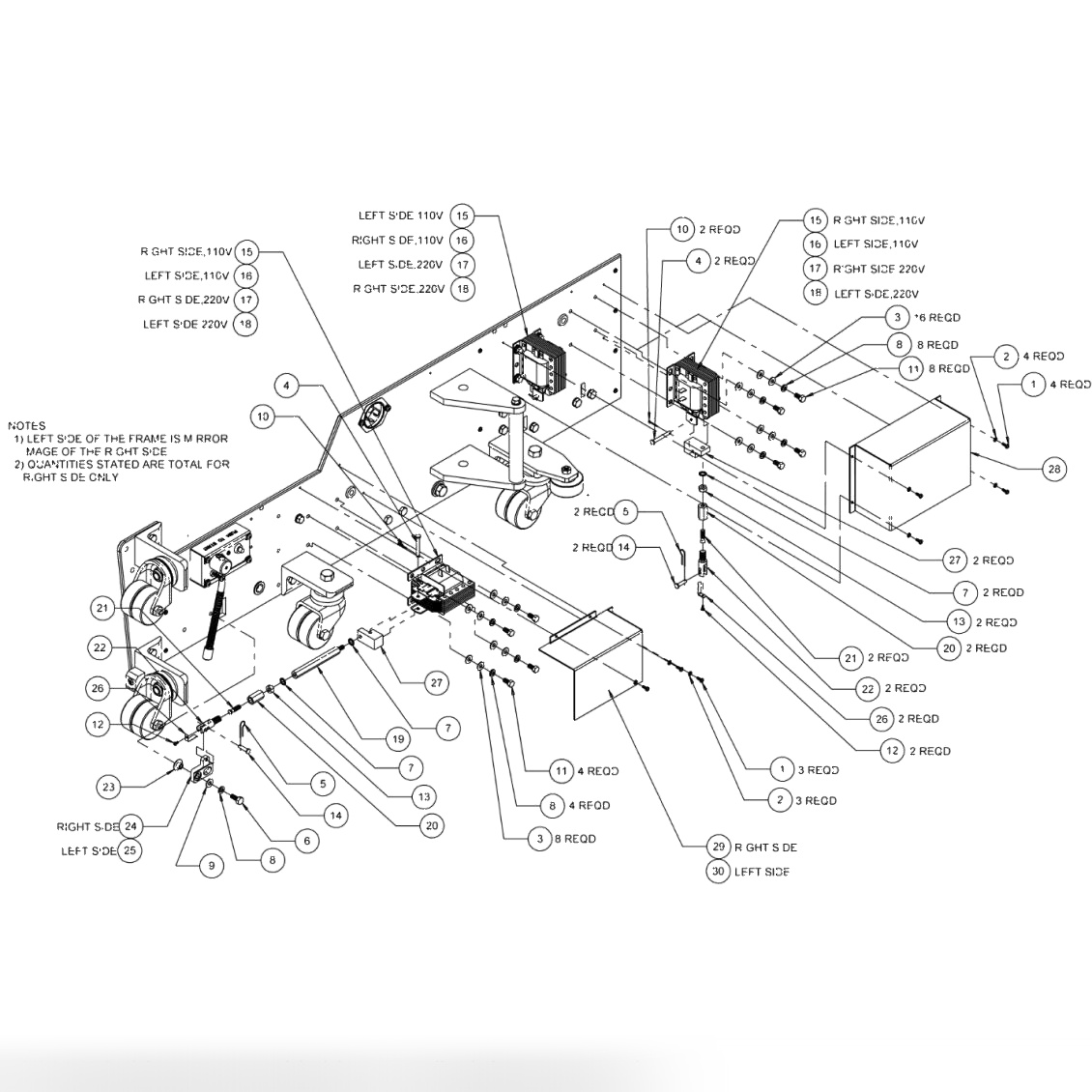

FRAME ASSEMBLY - RIGHT SIDE PLATE - SOLENOIDS

Позиция	Артикул	Наименование
1	01001	Machine Screw, Pan Head, 6-32 X 0.38
-	843127002BG	Keps Nut, 6-32 (Bag of 10)
3	01036	Flat Washer 3/16 X 0.25 X 0.55 X 0.046
4	01038	Clevis Pin, 3/16 X 1-1/2
5	01040	Hairpin Cotter (Bridge) Pin, 1/16 X 9/16
6	01044	Cap Screw, Hex Head, 1/4-20 X 0.63, Grade 5, Zinc Finish
7	01053	External Tooth Lock Washer 1/4 ANSI, Zinc Finish
-	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)
9	01056	Flat Washer 1/4 X 0.30 X 0.75 X 0.05
10	01080	Cotter Pin, 1/16 X 1/2
11	01115	Cap Screw, Hex Head, 1/4-20 X 0.50, Grade 5, Zinc Finish
12	01135	Machine Screw, Pan Head, 4-40 X 0.25
13	01214	Hex Machine Screw Nut, 1/4-28
14	01215	Clevis Pin, 3/16 X 3/4
18	294002275	Solenoid, 240V, 3000 Series, Right Hand Terminals, 50 Hz
19	A0344	Buffer Linkage Extension
20	A4036	Pressure Adjusting Nut
21	A4037	Pressure Aadjusting Swivel
22	A4038	Pressure Linkage Rod
23	A4041	Pressure Linkage Pivot
24	A4044	Pressure Linkage - Right
25	A4045	Pressure Linkage - Left
26	A4055	Tension Spring
27	A8328	Solenoid Linkage BLock
28	294002079	Vacuum Solenoid Cover
29	294002433	Vacuum Solenoid Cover
30	294002434	Oil Solenoid Cover, Left Hand
