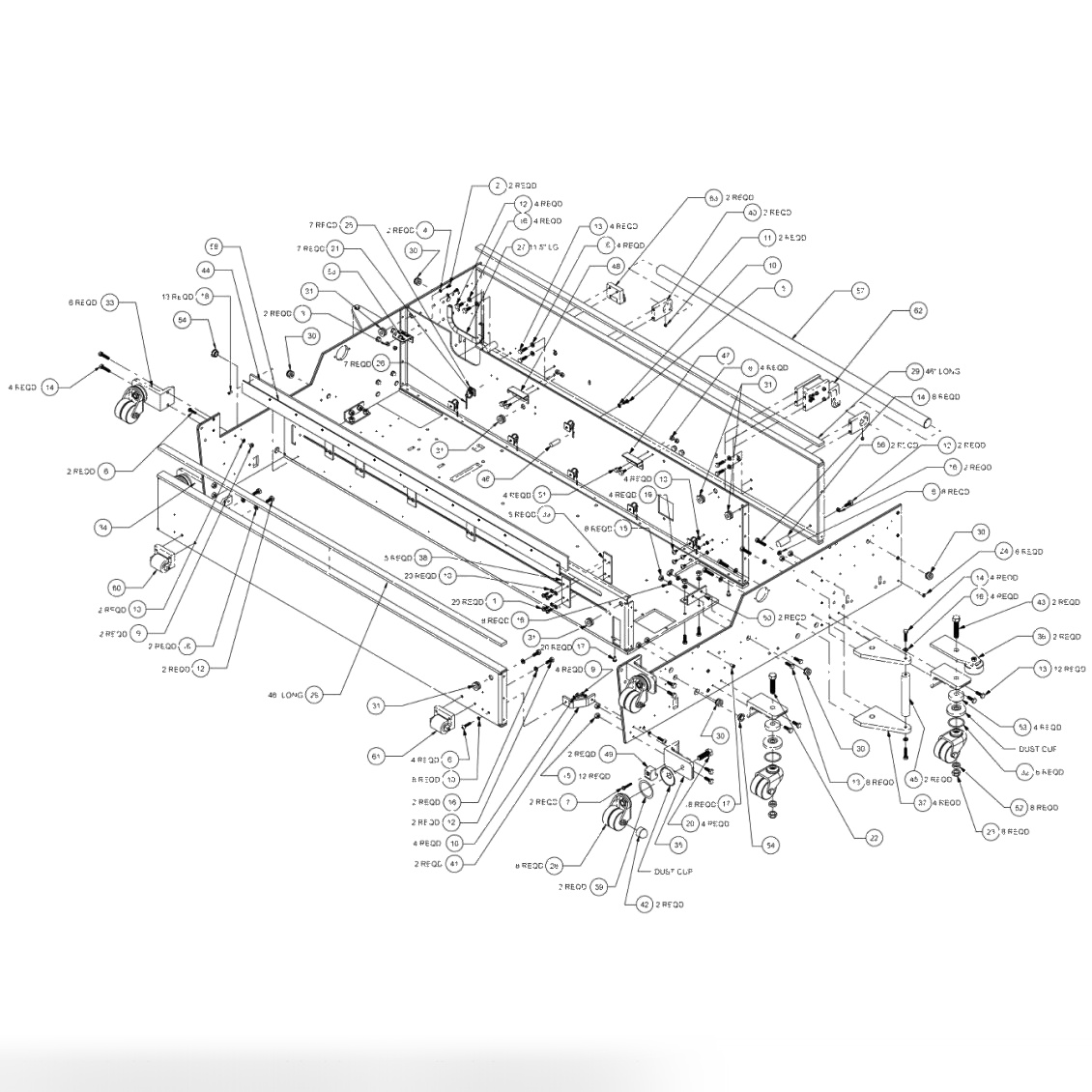

Frame Assembly

Позиция	Артикул	Наименование
1	01608	10-32x 5/8 Screw Hx Soc Bn Hd
2	01009	Machine Screw, Pan Head, 8-32 X 0.38
3	01015	Hex Machine Screw Nut, 8-32
4	01016	#8 Ext Tooth Lockwasher
5	01021	Machine Screw, Pan Head, 10-32 X 0.50
6	01023	Machine Screw, Pan Head, 10-32 X 0.75
7	01024	Machine Screw, Pan Head, 10-32 X 1.00
8	838740002	Elastic Stop Nut, 10-32, ESNA
10	957100002BG	External Tooth Lock Washer #10, Shakeproof (Bag of 10)
11	807149040BG	Set Screw Hex Socket Cup Point Bg/10
12	01044	Cap Screw, Hex Head, 1/4-20 X 0.63, Grade 5, Zinc Finish
13	01046	Cap Screw, Hex Head, 1/4-20 X 0.75, Grade 5, Zinc Finish
14	01048	Cap Screw, Hex Head, 1/4-20 X 1.00, Grade 5, Zinc Finish
-	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)
-	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)
17	938537060BG	Blind (Pop) Rivet, Domed, 0.19 (Bag of 10)
18	01130	Blind (Pop) Rivet, 0.13 X 0.50, Aluminum, LG
19	01197	10-32 x 3/8 Scr Hx Soc BtHd
20	809870205	Cap Screw, Hex Head, 7/16-20 X 1.25
21	01355	Self Tapping Screw, Flat Head, #6 X 0.25
23	01159	Lock Nut, 7/16-20
25	02539	Cable Mounting Block, 3/4 X 3/4
26	04065	Plastic Wire Tie 4" Length
27	04069	Edge Trim
28	04071	Caster, 3/8 X 3/4 Stem
29	04074	Foam Tape, 1/4 X 3/4 Self Adhesive
30	04077	Grommet, Rubber, Start Box/100
31	04078	Grommet, 0.31 X 0.75 X 1.25, Rubber, FT Firewall
32	04332	O-Ring, 1 3/8" X 3/32"
33	294001001	Caster Bracket
34	294001002	Pivot Caster Bracket, Left
35	294001003	Pivot Caster Bracket, Right
36	294001004	Centering Guide Plate Assembly
37	294002012	Handle Mount
38	294002080	Firewall Clamp (Clearance)
39	294002081	Firewall Clamp (Threaded)
40	294002084	Handle Holder Bracket
41	294002085	Oil Compartment Bracket
42	294002086	Hex Nut Cap
43	809068327	Cap Screw, Hex Head, 7/16-20 X 2.00, Grade 5, Zinc Finish
44	A0031	Oil Drip Felt
45	A0148	End Handle
46	A0341	Tank Support
47	A0342	Waste Tank Lock - Right
48	A0343	Waste Tank Lock - Left
49	A0586	Pivot Caster Block
50	A0588	Frame Bracket
51	A0659	Shoulder Bolt
52	A0794	Caster Spacer
53	A0919	Caster Spacer - Thick
54	A5547	Bearing Stud Bushing
55	A5573	Power Cord Bracket
56	A8346	Tray Direction Block
57	B0140	Front Handle Tube
58	B0505	Rear Elect Firewall Felt Retainer
59	REPLACEMENT	Replacement Caster O-Ring Only
61	294115913	Rear Roller Assembly
62	SA1104	Trip Arm Assembly
63	SA3012	Duster End Plate Roller Assembly
