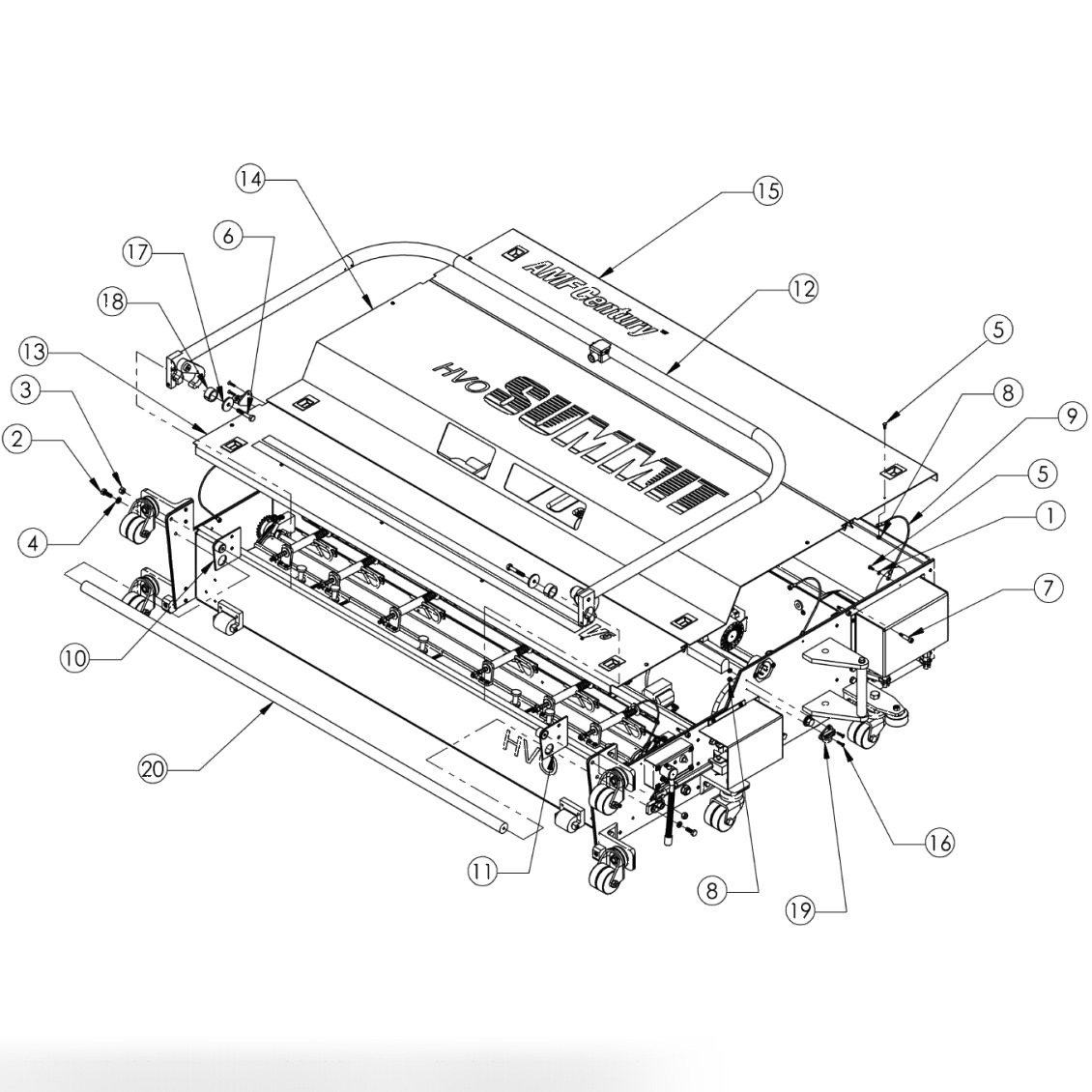

FINAL ASSEMBLY
| Позиция | Артикул | Наименование |
|---|---|---|
| - |
843127002BG
|
Keps Nut, 6-32 (Bag of 10) |
| 2 |
01046
|
Cap Screw, Hex Head, 1/4-20 X 0.75, Grade 5, Zinc Finish |
| 3 |
838549002
|
Hex Finish Nut, 1/4-20 |
| - |
951148002BG
|
Spring (Split) Lock Washer 1/4 (Bag of 10) |
| 5 |
813327062
|
Machine Screw, Pan Head, 6-32 X 0.38 |
| 6 |
01253
|
Cap Screw, Hex Head, 1/4-20 X 1.50, Grade 5 |
| 7 |
01353
|
Shoulder Bolt, Socket Head, Hex Socket Drive, 1/4 X 0.75 |
| 8 |
01416
|
Hex Lock Nut, 6-32 |
| 9 |
04335
|
Cable Assembly, 8" |
| 10 |
294002028
|
Handle Pivot, Left |
| 11 |
294002029
|
Handle Pivot, Right |
| 12 |
294002083
|
Handle Weldment |
| 13 |
294002117
|
Oil Hood Assembly |
| 14 |
294002118
|
Electrical Hood Assembly |
| 15 |
294002119
|
Cleaner Hood Assembly |
| 16 |
812027100
|
6-32 x 5/8 Screw PH Flat HD |
| 17 |
A0444
|
Handle Pivot Washer |
| 18 |
A0453
|
Handle Pivot Bushing |
| 19 |
A2037
|
Power Cable Hook |
| 20 |
B5012
|
Rear Plated Handle |
