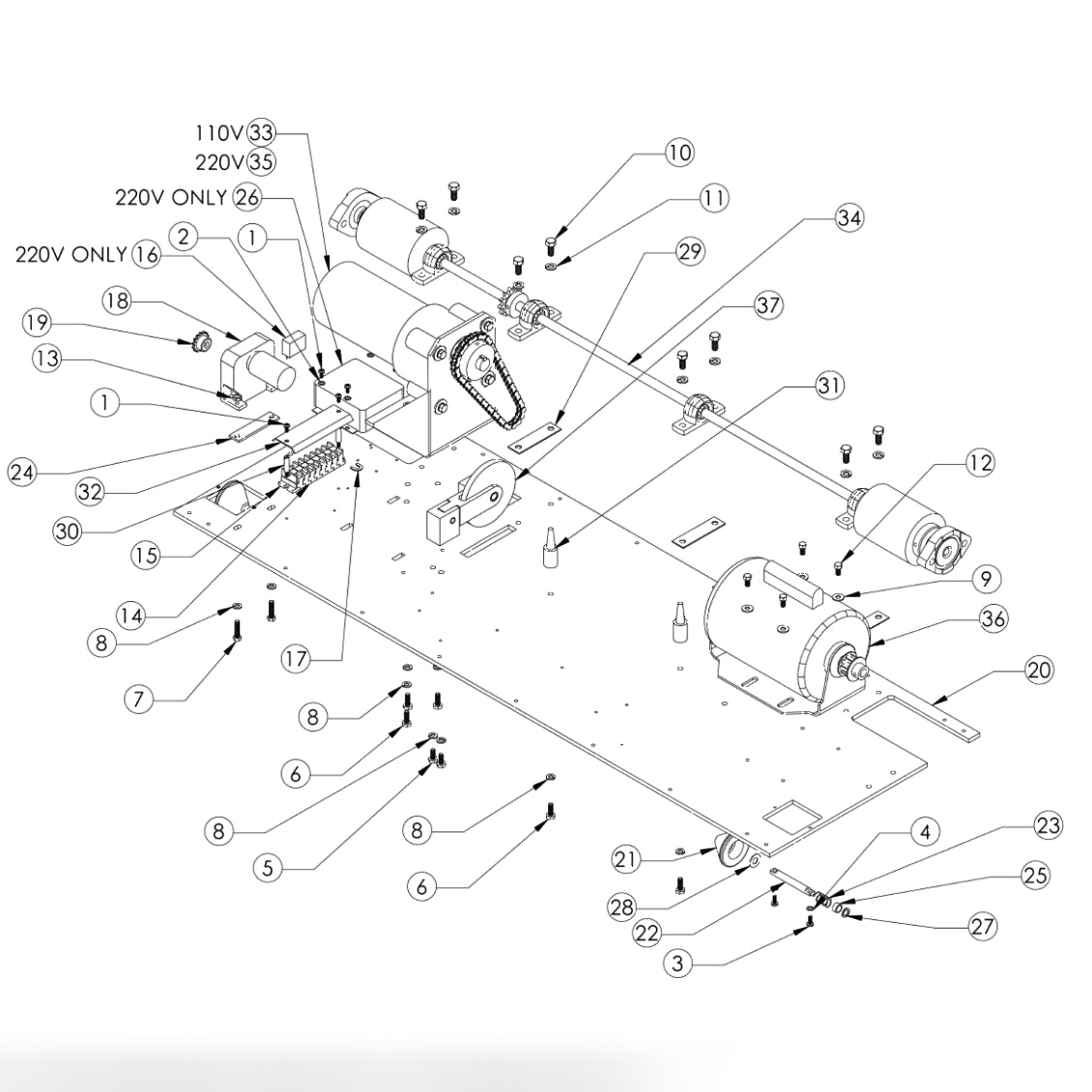

BASE PLATE ASSEMBLY - DRIVE MOTOR - BUFFER MOTOR - DRIVE SHAFT

Позиция	Артикул	Наименование
1	01009	Machine Screw, Pan Head, 8-32 X 0.38
2	01016	#8 Ext Tooth Lockwasher
3	01021	Machine Screw, Pan Head, 10-32 X 0.50
4	957100002BG	External Tooth Lock Washer #10, Shakeproof (Bag of 10)
5	01044	Cap Screw, Hex Head, 1/4-20 X 0.63, Grade 5, Zinc Finish
6	01046	Cap Screw, Hex Head, 1/4-20 X 0.75, Grade 5, Zinc Finish
7	01048	Cap Screw, Hex Head, 1/4-20 X 1.00, Grade 5, Zinc Finish
-	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)
9	01056	Flat Washer 1/4 X 0.30 X 0.75 X 0.05
10	7010003118075	Cap Screw, Hex Head, 5/16-18 X 0.75, Grade 5, Zinc Finish
11	01063	Medium Spring (Split) Lock Washer 5/16 ANSI, Zinc Finish
12	01115	Cap Screw, Hex Head, 1/4-20 X 0.50, Grade 5, Zinc Finish
-	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)
14	02015	Sectional Terminal Block
15	02016	Terminal Block End Section
16	02038	Capacitor, 1.0'f, 250V (in 220V only)
17	02078	Terminial Block Jumper
18	02767	Transfer Roller Motor
19	294001006	Sprocket, #25, 14 Tooth, 3/8 Bore
20	294002008	Base Plate
21	294002011	Guide Roller Assembly
22	294002016	Guide Roller Shaft
23	294002025	Guide Spring
24	294002082	Transfer Roller Motor Spacer
25	294002087	Guide Shaft Spacer
26	294002120	30-VK6 RFI Power Line Filter (in 220V only)
27	945546900	Guide Roller Flat Washer
28	964572000	Thrust Washer
29	A0073	Pillow Block Shim
30	A0468	Terminal BLock Cover Spacer
31	A8331	Tank Locating Pin
32	SA0033D	Terminal Block Cover Asm
33	SA0259	Drive Motor Assembly, 110V Machine
34	SA0279	Drive Shaft Assembly
35	SA0291	Drive Motor Assembly, 220V Machine
36	294116260	Assembly Motor w/Rings
37	294002542	Counter Wheel Assembly
