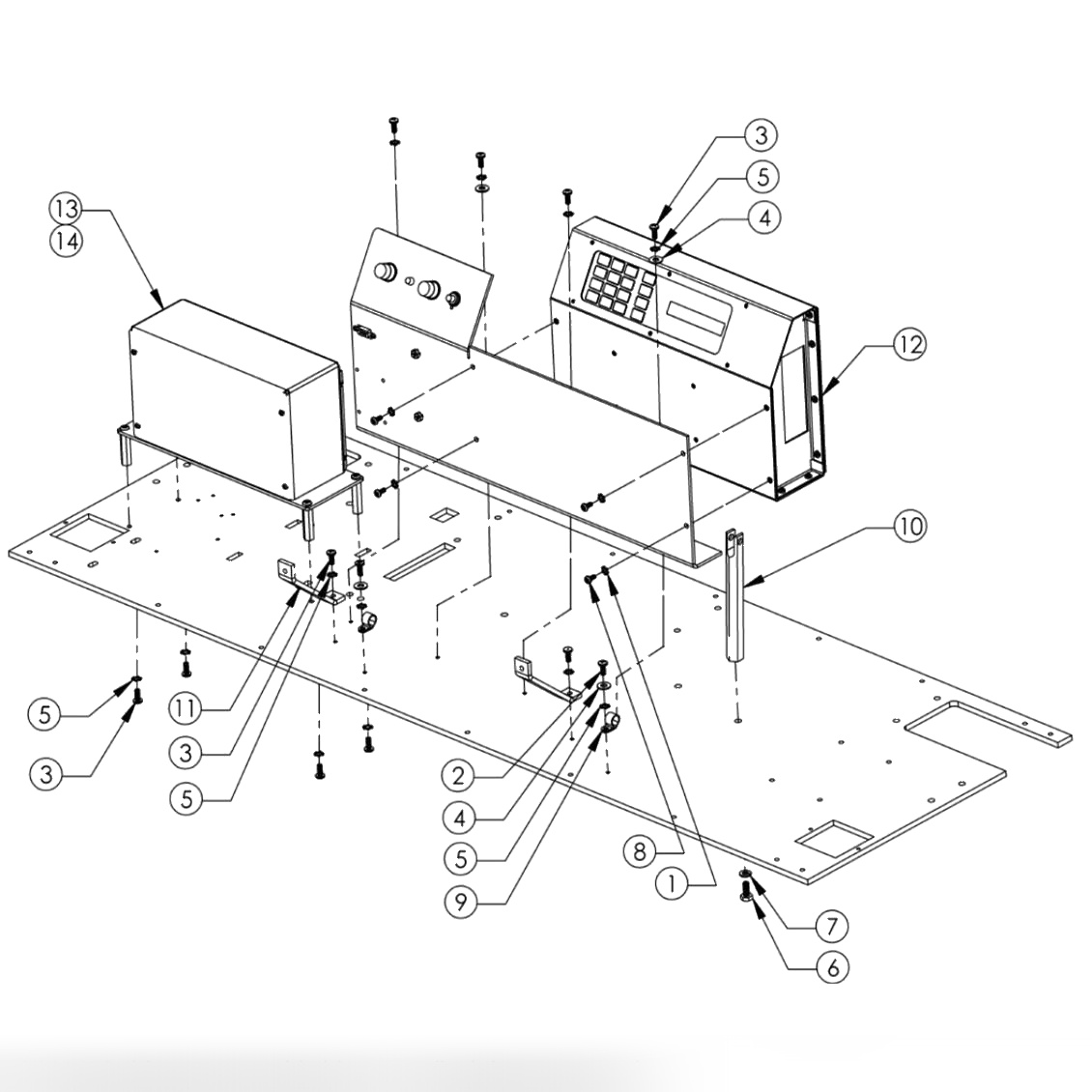

BASE PLATE ASSEMBLY - CONTROL BOX - SPEED CONTROL BOX - DASH
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
01016
|
#8 Ext Tooth Lockwasher |
| 2 |
01019
|
Machine Screw, Pan Head, 10-32 X 0.38 |
| 3 |
01021
|
Machine Screw, Pan Head, 10-32 X 0.50 |
| 4 |
01030
|
Flat Washer #10 X 0.22 X 0.50 X 0.046 SAE, Zinc Finish |
| 5 |
957100002BG
|
External Tooth Lock Washer #10, Shakeproof (Bag of 10) |
| 6 |
01044
|
Cap Screw, Hex Head, 1/4-20 X 0.63, Grade 5, Zinc Finish |
| - |
951148002BG
|
Spring (Split) Lock Washer 1/4 (Bag of 10) |
| 8 |
01302
|
Machine Screw, Hex Head, 8-32 X 0.38 |
| 10 |
294002003
|
Vertical Vacuum Motor Mount |
| 11 |
294002078
|
Firewall Support Bracket |
| 12 |
294002072-R
|
Control Box Summit RB |
| 13 |
SA0250
|
Speed Control Box Assembly (110V) |
| 14 |
SA0260
|
Speed Control Box Assembly (220V) |
| - |
294002127
|
Replacement Kit Control Box |
