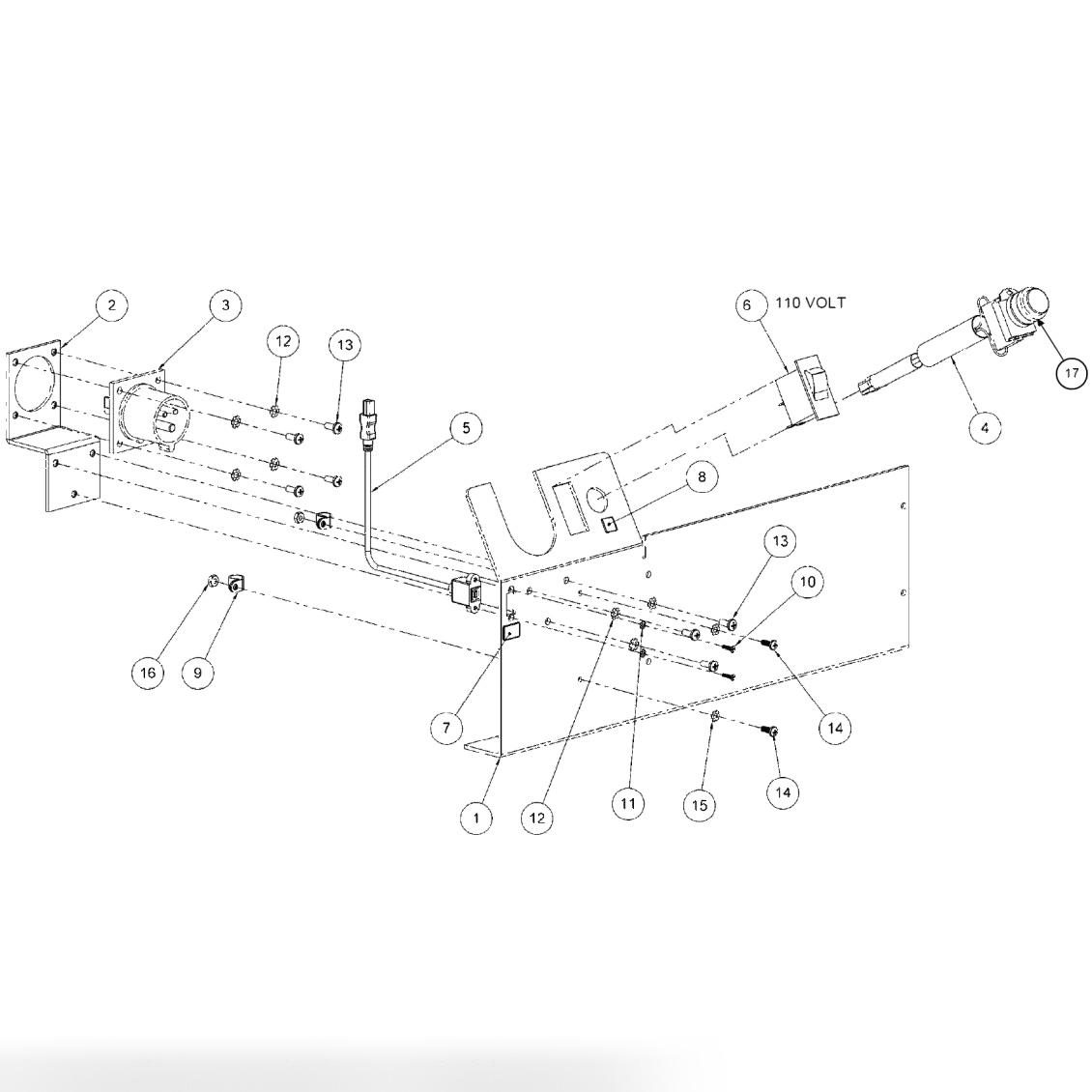

DASH ASSEMBLY 110V
| Позиция | Артикул | Наименование |
|---|---|---|
| 2 |
294002215
|
Dash Connector Support |
| 3 |
294002555
|
Power Inlet Panel Mount |
| 4 |
294002279
|
Manual Reverse Switch Assembly |
| 5 |
294002508
|
USB Programming Cable, Dash to Control Box |
| 6 |
294002323
|
Circuit Breaker, 30A |
| 7 |
294002185
|
CE Label ComPort Symbol |
| 8 |
294002183
|
CE Label Manual Reverse Symbol |
| 10 |
01178
|
4-40 x 3/8 Flat Head Screw |
| 11 |
01618
|
#4 CTRSNK External Lock Washer |
| - |
957100002BG
|
External Tooth Lock Washer #10, Shakeproof (Bag of 10) |
| 13 |
01021
|
Machine Screw, Pan Head, 10-32 X 0.50 |
| 14 |
01010
|
8-32 x 1/2 Screw Pan Hd Mach |
| 15 |
01016
|
#8 Ext Tooth Lockwasher |
| 16 |
01015
|
Hex Machine Screw Nut, 8-32 |
| 17 |
294002213
|
Manual Reverse Switch (Switch Only) |
