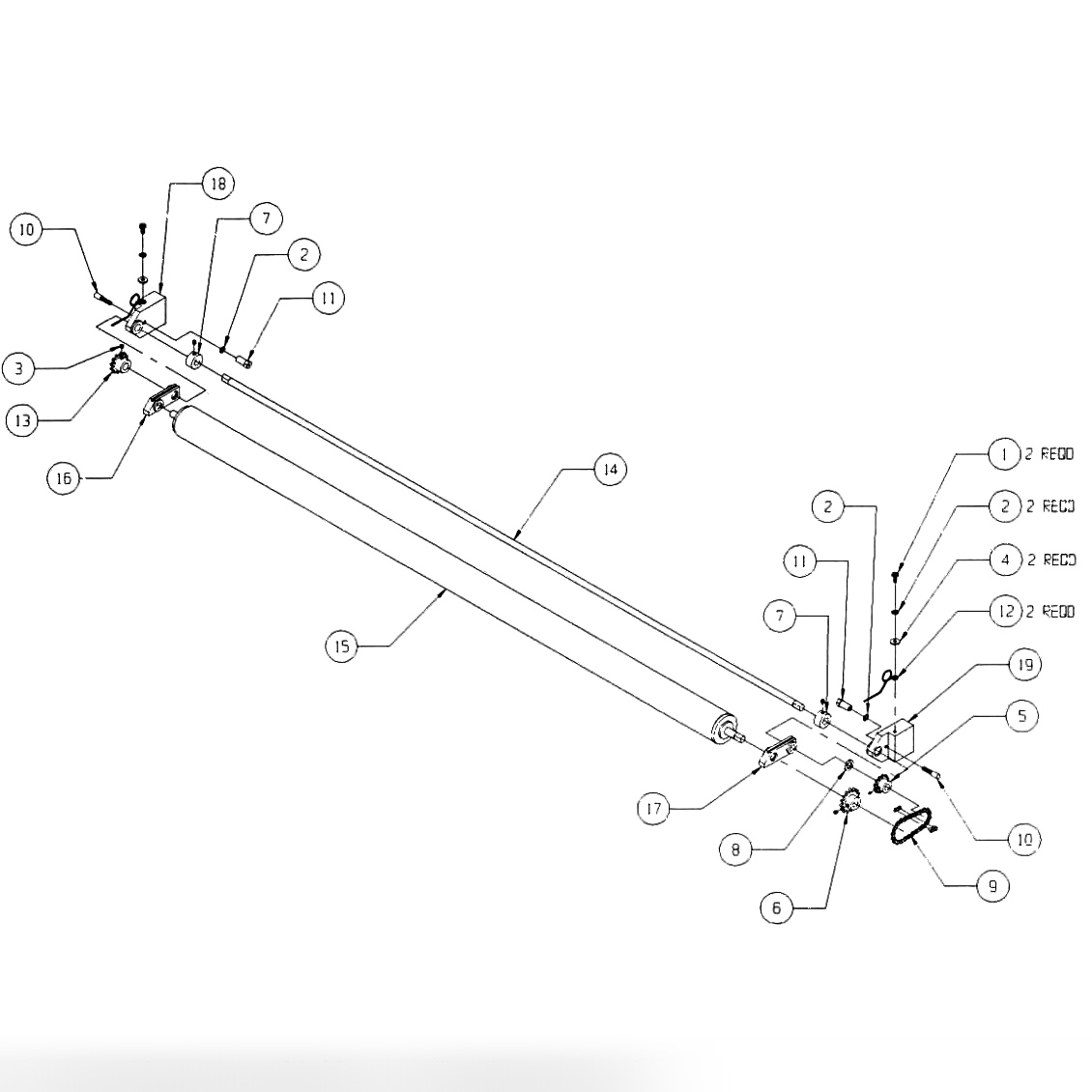

PHENOLIC ROLLER ASSEMBLY
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
01009
|
Machine Screw, Pan Head, 8-32 X 0.38 |
| 2 |
01016
|
#8 Ext Tooth Lockwasher |
| 3 |
01098
|
Set Screw, Hex Socket Drive Cup Point, 10-32 X 0.38 |
| 4 |
01109
|
Flat Washer #8 X 0.18 X 0.43 X 0.046 SAE, Zinc Finish |
| 5 |
03001
|
Sprocket |
| 6 |
03007
|
Sprocket 1.25 |
| 7 |
04015
|
Set Screw Shaft Collar |
| 8 |
A0036
|
Roller Drive Shaft Washer |
| 9 |
A0071
|
Oil Transfer Roller Chain |
| 10 |
A0463
|
Positive Stop Screw |
| 11 |
A0464
|
Positive Stop Nut |
| 12 |
A0583
|
Oil Transfer Roller Spring |
| 13 |
A0951
|
Sprocket Modification |
| 14 |
B0063
|
Roller Drive Shaft |
| 15 |
SA0296
|
Roller Assembly |
| 16 |
SA1023L
|
Oil Transfer Roller Support Arm Assembly-Left |
| 17 |
SA1023R
|
Oil Transfer Support Arm Assembly-Right |
| 18 |
04017
|
Flange Bushing, 0.38 X 0.50 X 0.38 |
