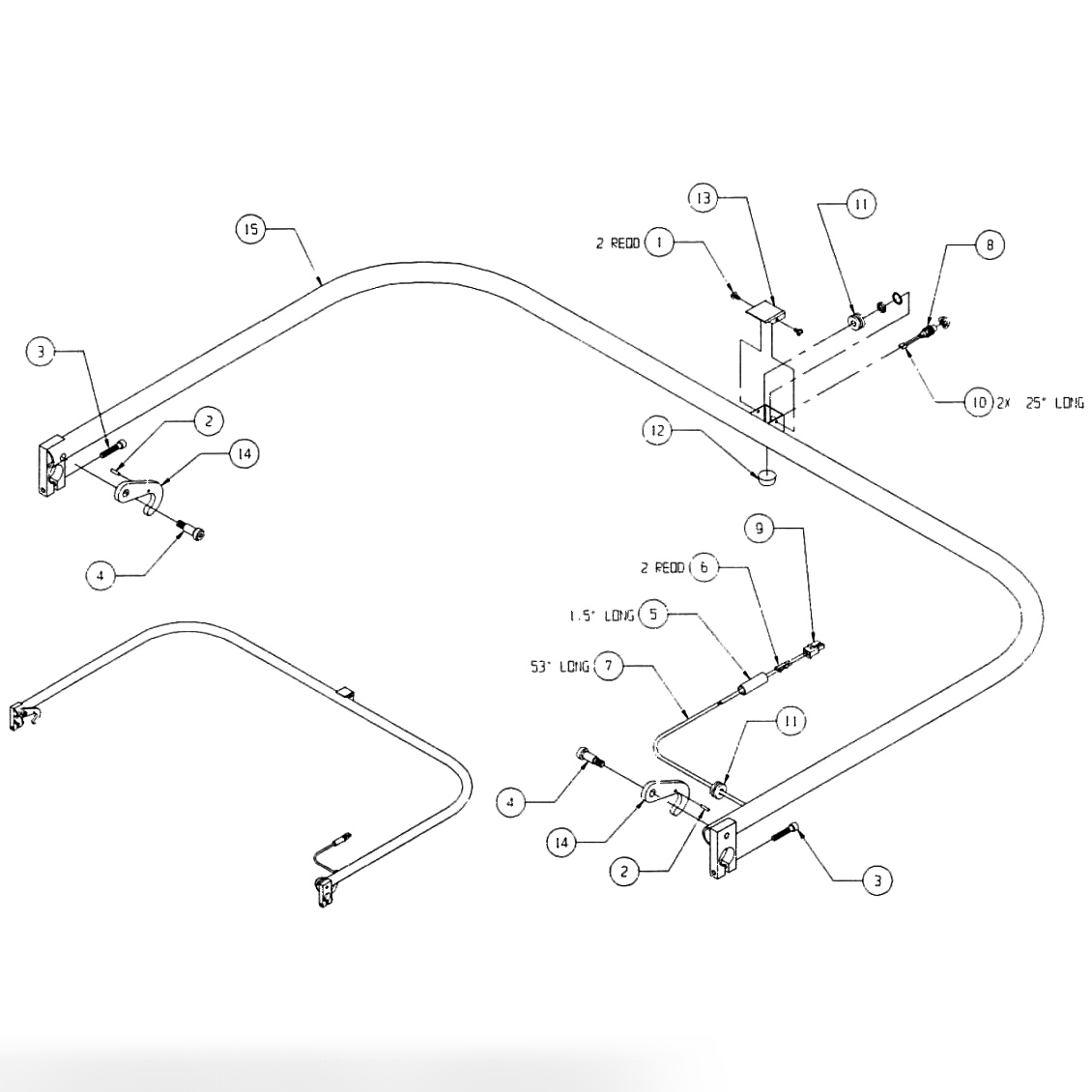

HANDLE ASSEMBLY
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
01058
|
Self Tapping Screw, Hex Washer, #8 X 0.38 |
| 2 |
01152
|
Roll Pin, 1/8 X 1/2 |
| 3 |
810349200
|
Cap Screw, Socket Head, Hex Socket Drive, 1/4-20 X 1.25 |
| 4 |
01582
|
3/8 X 0.75 Shoulder Bolt, Soc. Hd |
| 6 |
760019226BG
|
Contact Terminal, Female, 18-24 AWG, Bg/10 |
| 7 |
610294000
|
Kit 10' Wire Bagged |
| 8 |
02335
|
Switch |
| 10 |
02563
|
Heat Shrink Tube, 1/8 ID 0.5' |
| 11 |
04078
|
Grommet, 0.31 X 0.75 X 1.25, Rubber, FT Firewall |
| 12 |
04484
|
Rubber Bumper |
| 13 |
A0448
|
Handle Switch Box Cover |
| 14 |
01351
|
Shoulder Bolt, Socket Head, Hex Socket Drive, 3/8 X 1.00 |
