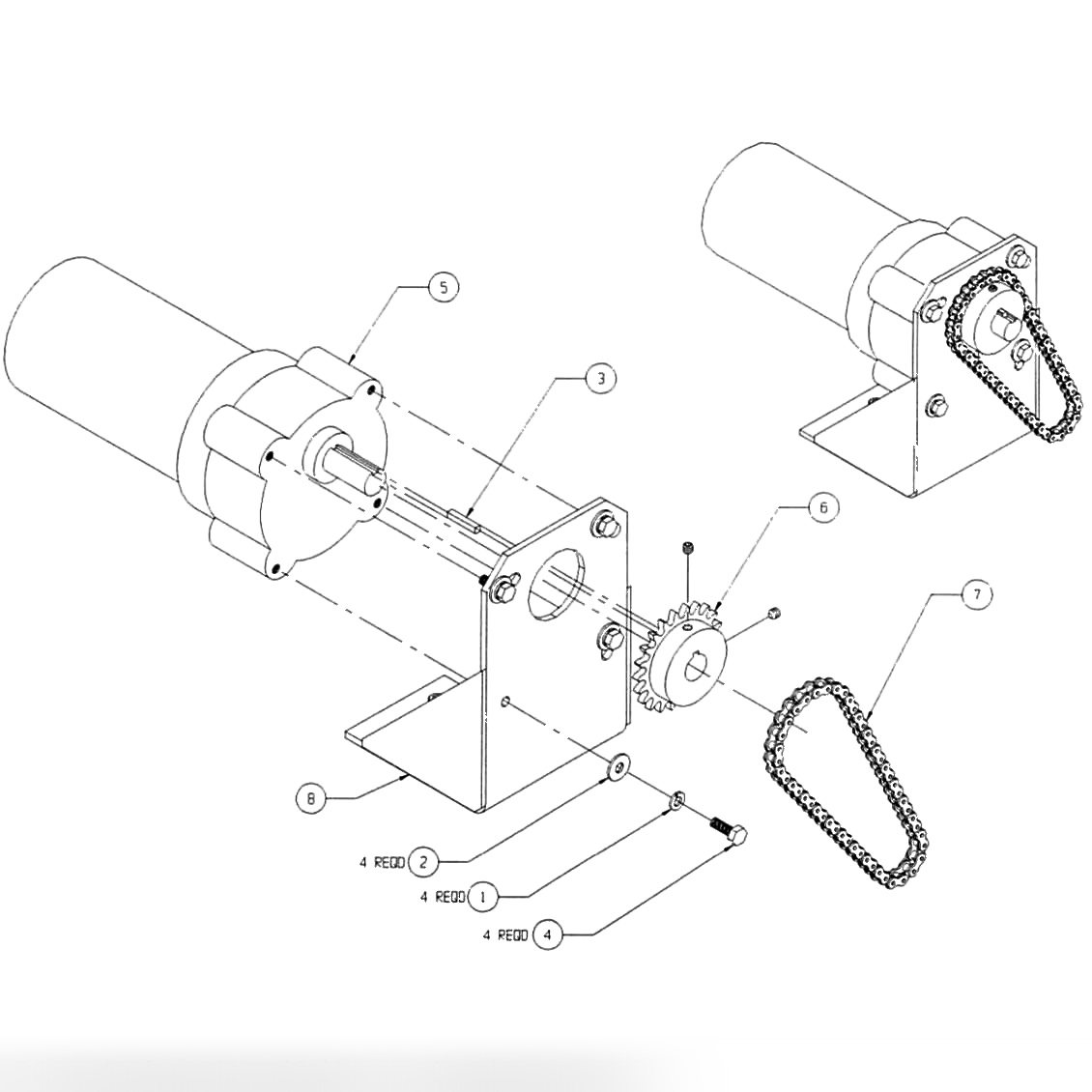

DRIVE MOTOR ASSEMBLY
| Позиция | Артикул | Наименование |
|---|---|---|
| - |
951148002BG
|
Spring (Split) Lock Washer 1/4 (Bag of 10) |
| 2 |
947356617
|
Flat Washer 0.36 X 0.86 X 0.078 USS, Zinc Yellow Finish |
| 3 |
302241000
|
Square Key, 0.187 X 1.00 |
| 4 |
01569
|
1/4-28-3/4 NF Hex Screw |
| 5 |
02770
|
Motor, Drive, 90 VDC |
| 6 |
03108
|
Sprocket, #35 Chain, 22 Tooth, 3/4 Bore |
| 7 |
A0855
|
Chain, #35, 17-5/8 Length |
| 8 |
SA0257
|
Drive Motor Bracket Weldment |
