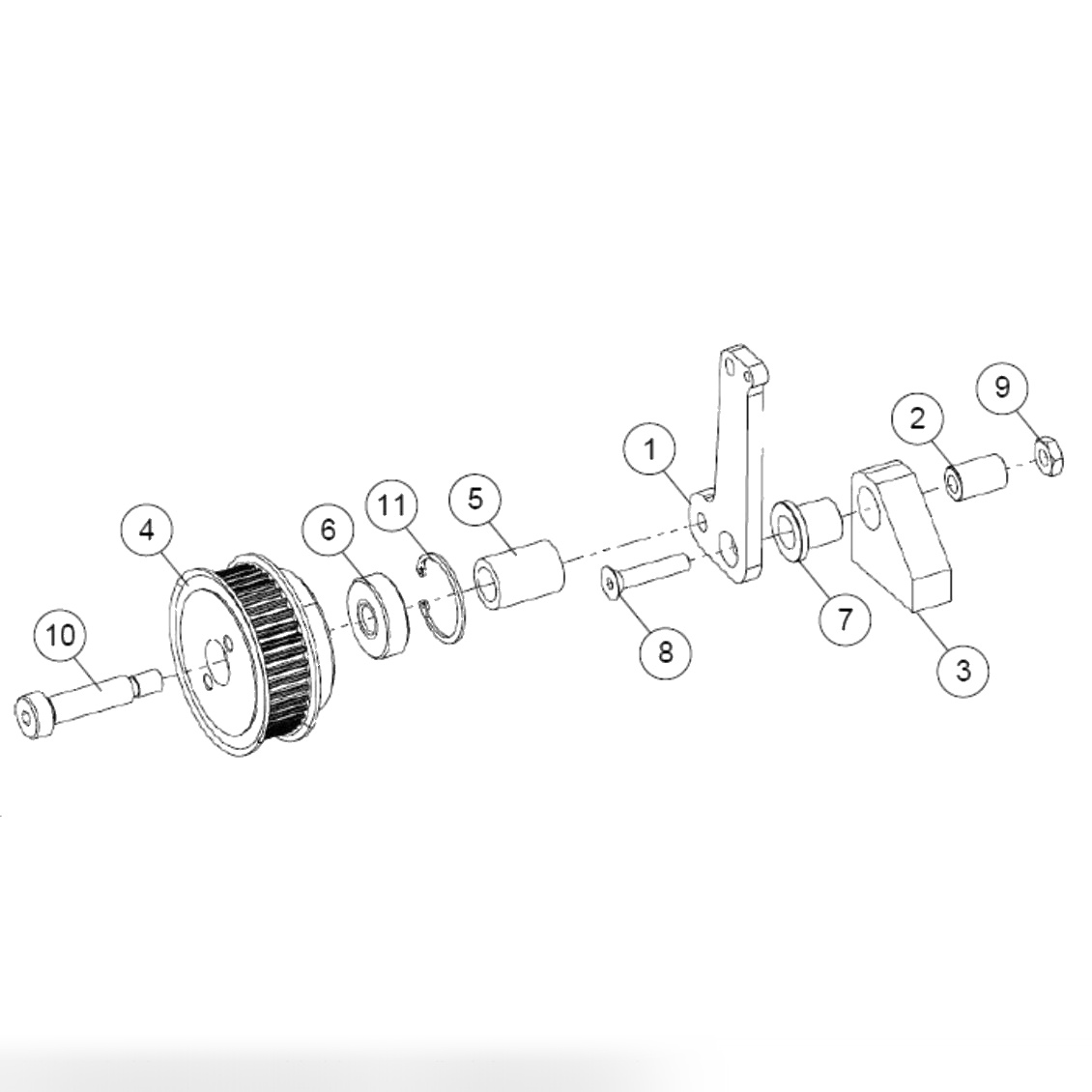

Right Hand Buffer Mounting Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
294116084
|
Right Hand Buffer Arm |
| 3 |
294116086
|
Buffer Pivot Mounting Block |
| 4 |
294116091
|
Brush Pulley |
| 5 |
294116092
|
Buffer Pulley Collar |
| 6 |
701013040
|
Bearing, 10 mm X 30 mm X 9 mm |
| 7 |
701406108
|
Flange Bushing, 0.50 X 0.63 X 0.75, Bronze |
| 8 |
808849280
|
Cap Screw, Flat Head, Hex Socket Drive, 1/4-20 X 1.75 |
| 9 |
836549008
|
NUT, HEAVY JAM, 1/4-20 |
| 10 |
880110350
|
Screw, Hex Shoulder, 10 mm X 35 mm |
| 11 |
919019050
|
Snap Ring, Internal, 1.319 X .050 |
| - |
294116093
|
Right Hand Buffer Mounting Assembly |
