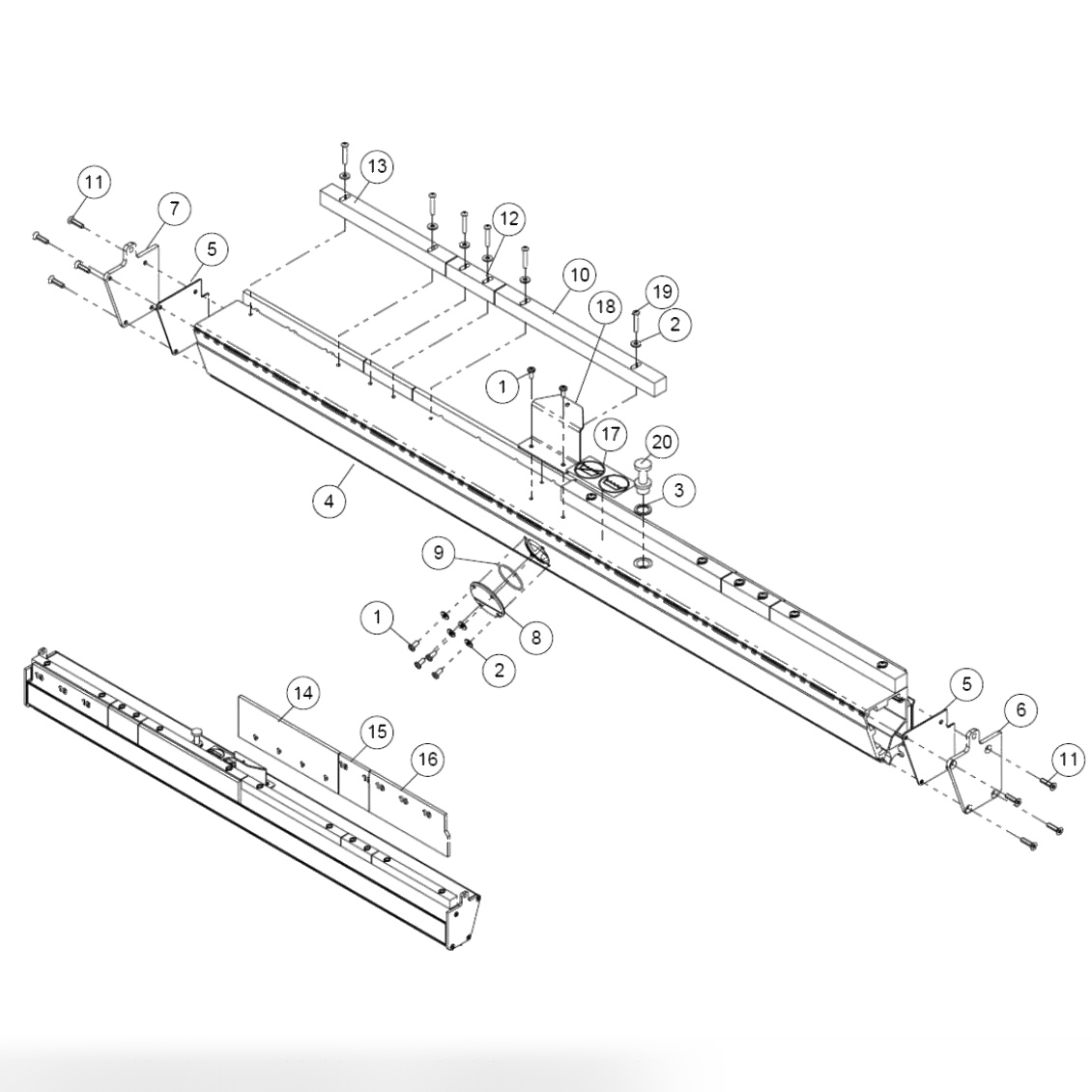

Oil Tank Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
01009
|
Machine Screw, Pan Head, 8-32 X 0.38 |
| 2 |
01109
|
Flat Washer #8 X 0.18 X 0.43 X 0.046 SAE, Zinc Finish |
| 3 |
04093
|
Viton Rubber Washer 0.76 X 0.58 X 0.06 |
| 4 |
294115508
|
Oil Tank |
| 5 |
294115509
|
Gasket Tank Oil Single Washer |
| 6 |
294115510
|
Oil Tank Cap, Right Hand |
| 7 |
294115511
|
Oil Tank Cap, Left Hand |
| 8 |
294115512
|
Sight Glass Disk |
| 9 |
294115513
|
Sight Glass O-Ring |
| 10 |
294115515
|
Adjustment Bar, 10" |
| 11 |
294115516
|
Self Tapping Screw, Flat Head, 10-24 X 0.75 |
| 12 |
294115530
|
Adjustment Bar, 3" |
| 13 |
294115531
|
Adjustment Bar, 7" |
| 14 |
294115490
|
Foam Wicks (Replacement foam SHO) |
| 15 |
294115553
|
Wick Foam MLO |
| 16 |
294115665
|
Wick Foam MLO |
| 17 |
294115667
|
Overfill Sticker |
| 19 |
808533167
|
Cap Screw, Button Head, Hex Socket Drive, 8-32 X 1.00 |
| 20 |
A0330
|
Oil Tank Plug |
| - |
04351
|
O-Ring |
| - |
04352
|
O-Ring |
| - |
294116262
|
Oil Fill Bottle EZTLT4 |
