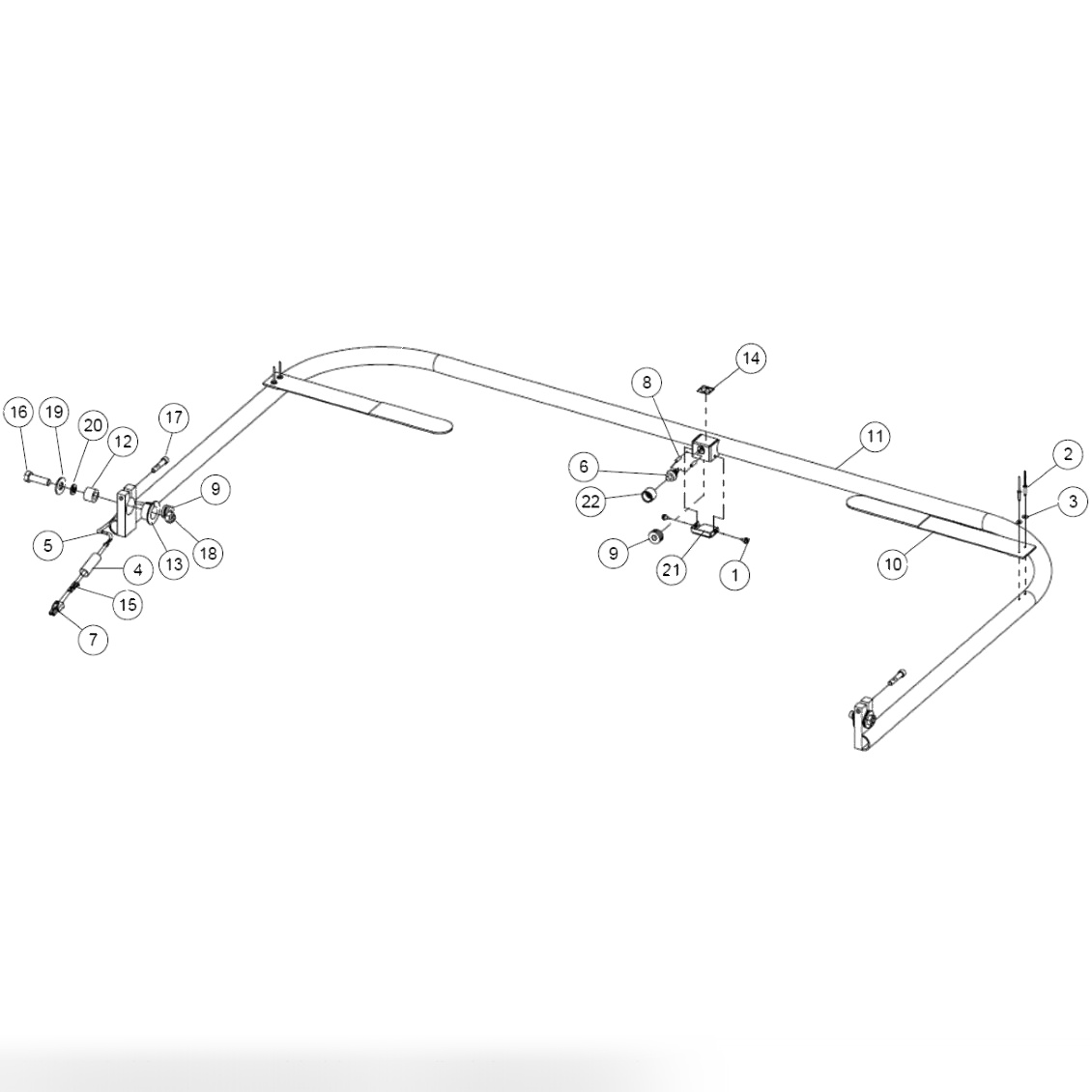

Handle Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
01058
|
Self Tapping Screw, Hex Washer, #8 X 0.38 |
| 2 |
01130
|
Blind (Pop) Rivet, 0.13 X 0.50, Aluminum, LG |
| 3 |
01303
|
Flat Washer 0.13 X 0.34 X 0.20, Stainless Steel |
| 4 |
02208
|
1/2 ID Heat Shrink Tubing |
| 5 |
610294000
|
Kit 10' Wire Bagged |
| 6 |
02335
|
Switch |
| 7 |
02336
|
15-31-1022 Receptacle |
| 8 |
02563
|
Heat Shrink Tube, 1/8 ID 0.5' |
| 9 |
04078
|
Grommet, 0.31 X 0.75 X 1.25, Rubber, FT Firewall |
| 10 |
04397
|
Cord Strap |
| 11 |
294115098
|
Handle Assembly |
| 12 |
294115082
|
Handle Pivot BOSS |
| 13 |
294115695
|
Flanged Tension Flange Bushing |
| 15 |
760019226BG
|
Contact Terminal, Female, 18-24 AWG, Bg/10 |
| 16 |
809865205BG
|
Cap Screw, Hex Head, 3/8-16 X 1.25 (Bag of 10) |
| 17 |
810349200
|
Cap Screw, Socket Head, Hex Socket Drive, 1/4-20 X 1.25 |
| - |
844065002BG
|
Hex Lock Nut, 3/8-16 (Bag of 10) |
| 19 |
947367141
|
Flat Washer 3/8 X 0.43 X 0.41 X 0.13 USS, Black Oxide Finish |
| 20 |
951156002BG
|
Spring (Split) Lock Washer 5/16 (Bag of 10) |
| 21 |
A0448
|
Handle Switch Box Cover |
| 22 |
A1028
|
Start Switch Cover |
