QubicaAMF Оборудование зоны подхода | Front of Center Parts Lane Machines Express Oiling & Buffing Oil Transfer - Buffer Mount Assembly #2

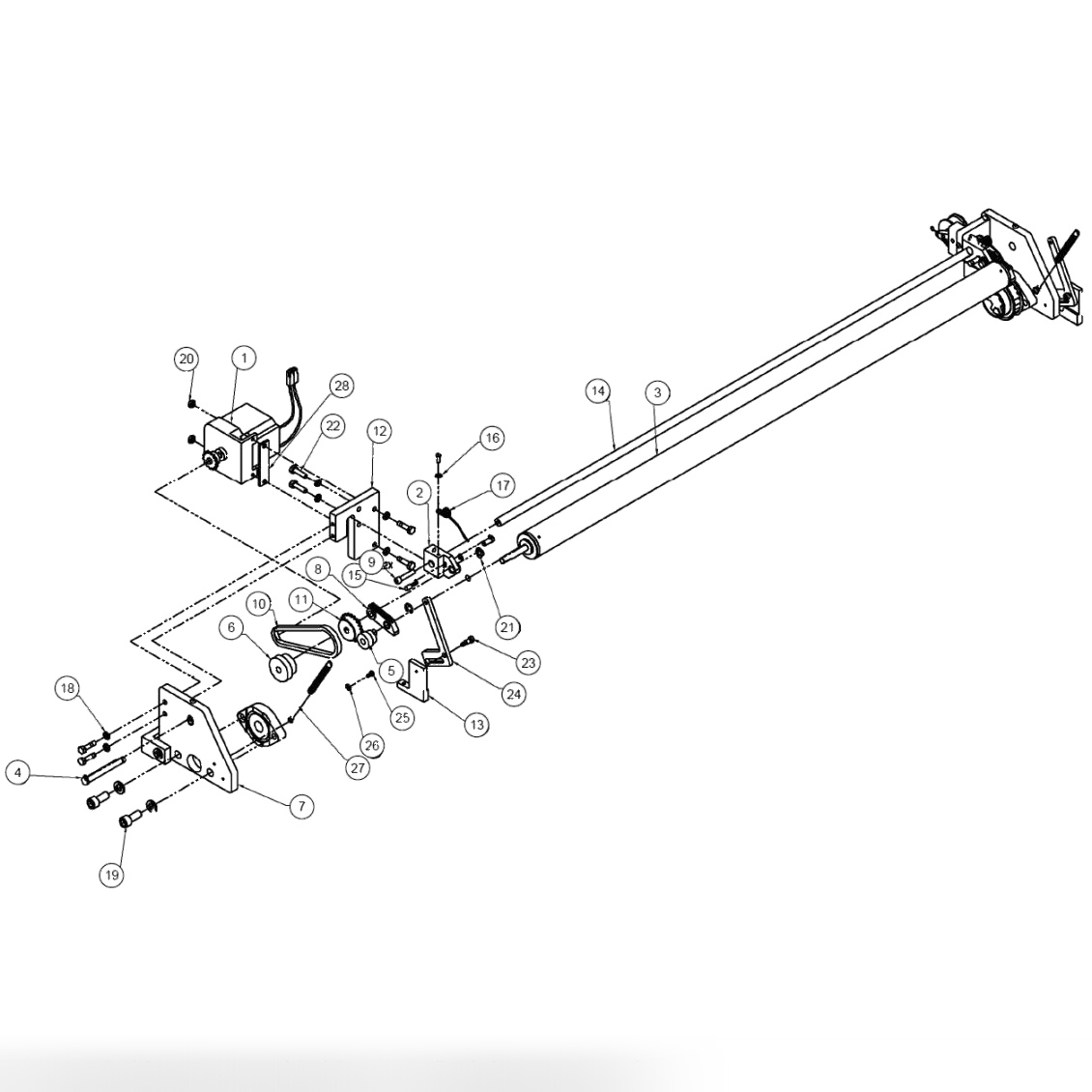

Oil Transfer - Buffer Mount Assembly #2

Позиция	Артикул	Наименование
1	294115006	Trans Roller Motor Asm 110V
2	04017	Flange Bushing, 0.38 X 0.50 X 0.38
3	294115013	Roller Assembly
4	294115004	Gear Shaft: Transfer Roller
5	294115003	Gear: Transfer Roller, Large
6	294115002	Gear: Transfer Roller, Small
7	294115014	Buffer Side Plate Assembly
8	SA1023L	Oil Transfer Roller Support Arm Assembly-Left
9	810349200	Cap Screw, Socket Head, Hex Socket Drive, 1/4-20 X 1.25
10	294115007	Transfer Roller Chain
10	294116099	Transfer Chain
11	A0951	Sprocket Modification
13	294115158	Link Pivot Mount: Left
15	A0463	Positive Stop Screw
16	01016	#8 Ext Tooth Lockwasher
17	A0583	Oil Transfer Roller Spring
-	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)
-	835549002BG	Hex Finish Jam Nut, 1/4-20 (Bag of 10)
21	919010400	Retaining Ring: E Style
22	828133082	Screw: #8-32X1/2, Round Head
22	828133082BG	#8-32 x1/2 Scr TDRD TYD
23	01349	Shoulder Bolt, Socket Head, Hex Socket Drive, 1/4 X 0.38
25	01019	Machine Screw, Pan Head, 10-32 X 0.38
26	957100002BG	External Tooth Lock Washer #10, Shakeproof (Bag of 10)
27	294115171	Extension Spring
28	294002082	Transfer Roller Motor Spacer
