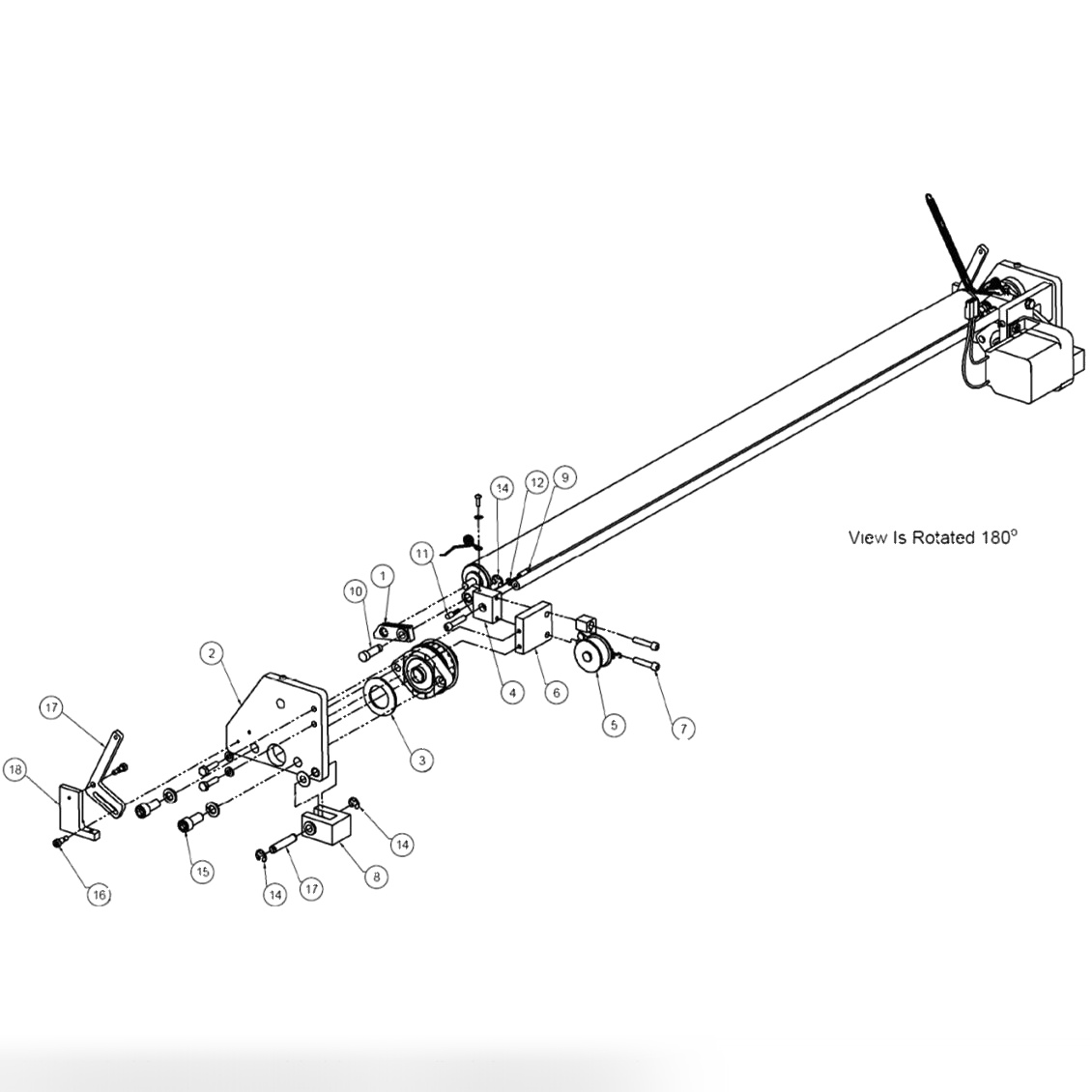

Oil Transfer - Buffer Mount Assembly #1
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
SA1023R
|
Oil Transfer Support Arm Assembly-Right |
| 3 |
A0575
|
Buffer Bearing Shim |
| 5 |
294115139
|
Belt Tensioner Assembly |
| 7 |
810349200
|
Cap Screw, Socket Head, Hex Socket Drive, 1/4-20 X 1.25 |
| 8 |
04017
|
Flange Bushing, 0.38 X 0.50 X 0.38 |
| 9 |
A0464
|
Positive Stop Nut |
| 11 |
01016
|
#8 Ext Tooth Lockwasher |
| 12 |
A0583
|
Oil Transfer Roller Spring |
| - |
835549002BG
|
Hex Finish Jam Nut, 1/4-20 (Bag of 10) |
| 14 |
964572000
|
Thrust Washer |
| 16 |
01019
|
Machine Screw, Pan Head, 10-32 X 0.38 |
| 17 |
294115171
|
Extension Spring |
| 18 |
294002082
|
Transfer Roller Motor Spacer |
