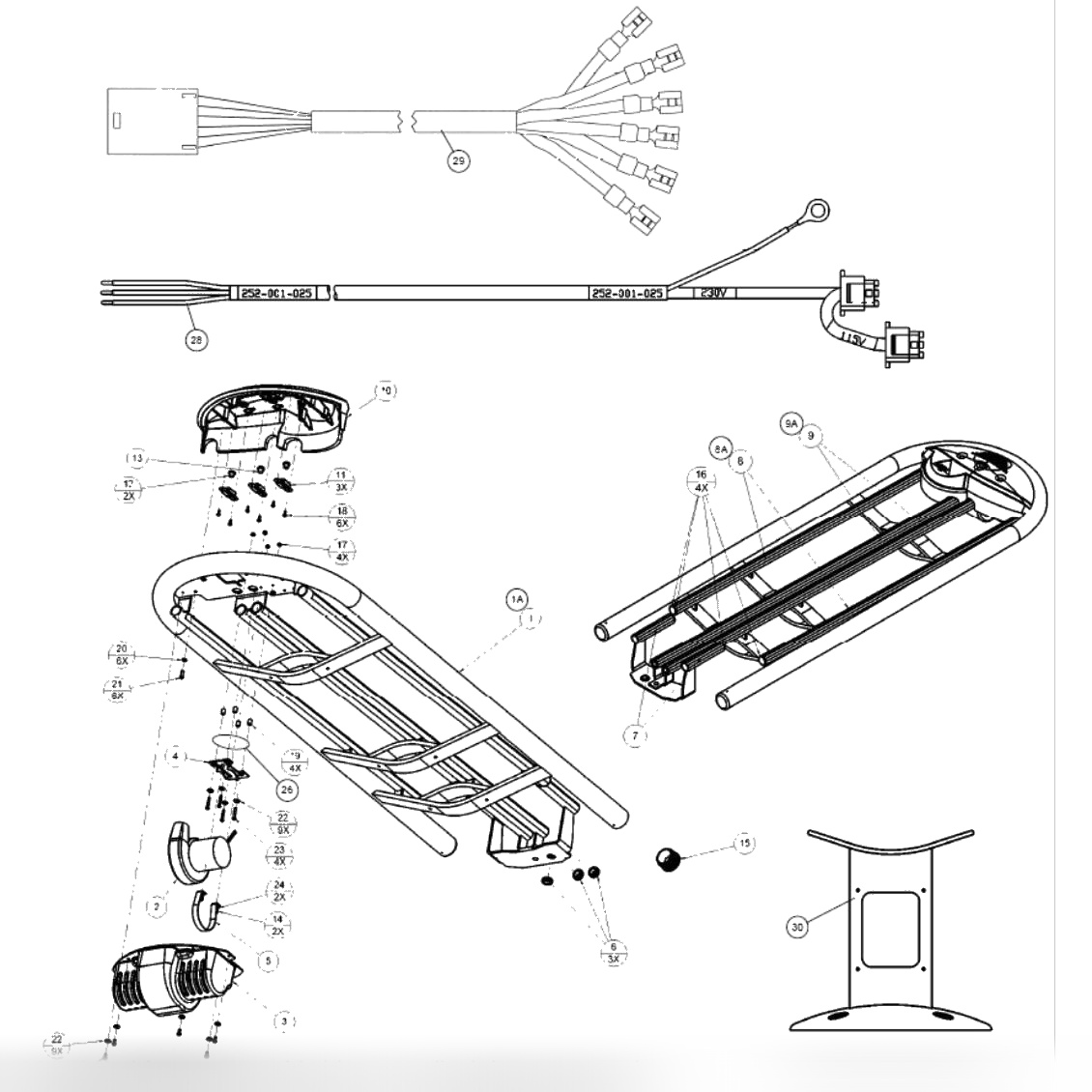

Profile Ball Rack Assembly

Позиция	Артикул	Наименование
1	259001000	Upper Rack Weldment (11 Ball)
2	252001066-01	Blower Fan Kit
3	252001027	Cover Lower Blower
4	252001088	Blower Bracket Ball Return
5	252001089	Blower Strap Ball Return
6	711520017	Push-In Grommet, 0.88 X 0.19, Rubber, Strn Relief
7	252001125	Cover Guide Tube Glow Stripe
7	252001110	Even Guide Tube Weldment
7	252001111	Odd Guide Tube Weldment
7	252001117	Even Sid Guide Tube Repair Kit
7	252001118	Odd Side Guide Tube Repair Kit
8	252001155	Inner Rail Cover W/Stripes
9	252001154	Center Rail Cover, Glow Stripes
10	252001086	Blower Housing
11	252001090	Button Bracket
12	252001097	Blue Push Button Switch
13	252001096	Black Push Button Switch
-	844049002BG	Hex Lock Nut, 1/4-20 (Bag of 10)
15	259001035	2.25" Diameter End Cap
15	252001030	2-1/4" End Cap
16	259001036	1.25 Diameter End Cap
17	838740002	Elastic Stop Nut, 10-32, ESNA
18	818233082BG	Machine Screw, Rnd Head, 8-32 X 0.50 Sems Bg/10
19	722564720	Spacer Nylon
20	951148002BG	Spring (Split) Lock Washer 1/4 (Bag of 10)
21	808549120BG	Cap Screw, Button Head, 1/4-20 X 0.75 Bg/10
22	941137102	Steel Flat Washer 0.19 X 0.63 X 0.06, Zinc Finish
23	814638207	#10-32 x1 1/4 Scr SH Zinc
24	01056	Flat Washer 1/4 X 0.30 X 0.75 X 0.05
25	818740082	Machine Screw, Hex Washer, 10-32 X 0.50, Zinc Finish
26	711564728	Push-In Grommet, Rubber, Z-4122
27	822626081BG	Screw: #6 x 1/2 Phillips, Pan Head (Not Shown)
28	252001025	Cable B/R Blower Power
29	252002184	Cable 10th Frame Switch Assembly
30	259001010	Leg Weldment Profile
-	252001121	Cover Rail Central Glow Stripe
-	252001122	Cover Rail Inner Glow Stripe
-	612520086	Switch Kit Ball Return
-	252001091	Cable
-	612860033	Kit Install Hardware Bag
-	252001009	Upper Rack Weldment, (15 ball)
