QubicaAMF Оборудование зоны подхода | Front of Center Parts Ball Returns Harmony Tray - Rack Ball Rack Assembly

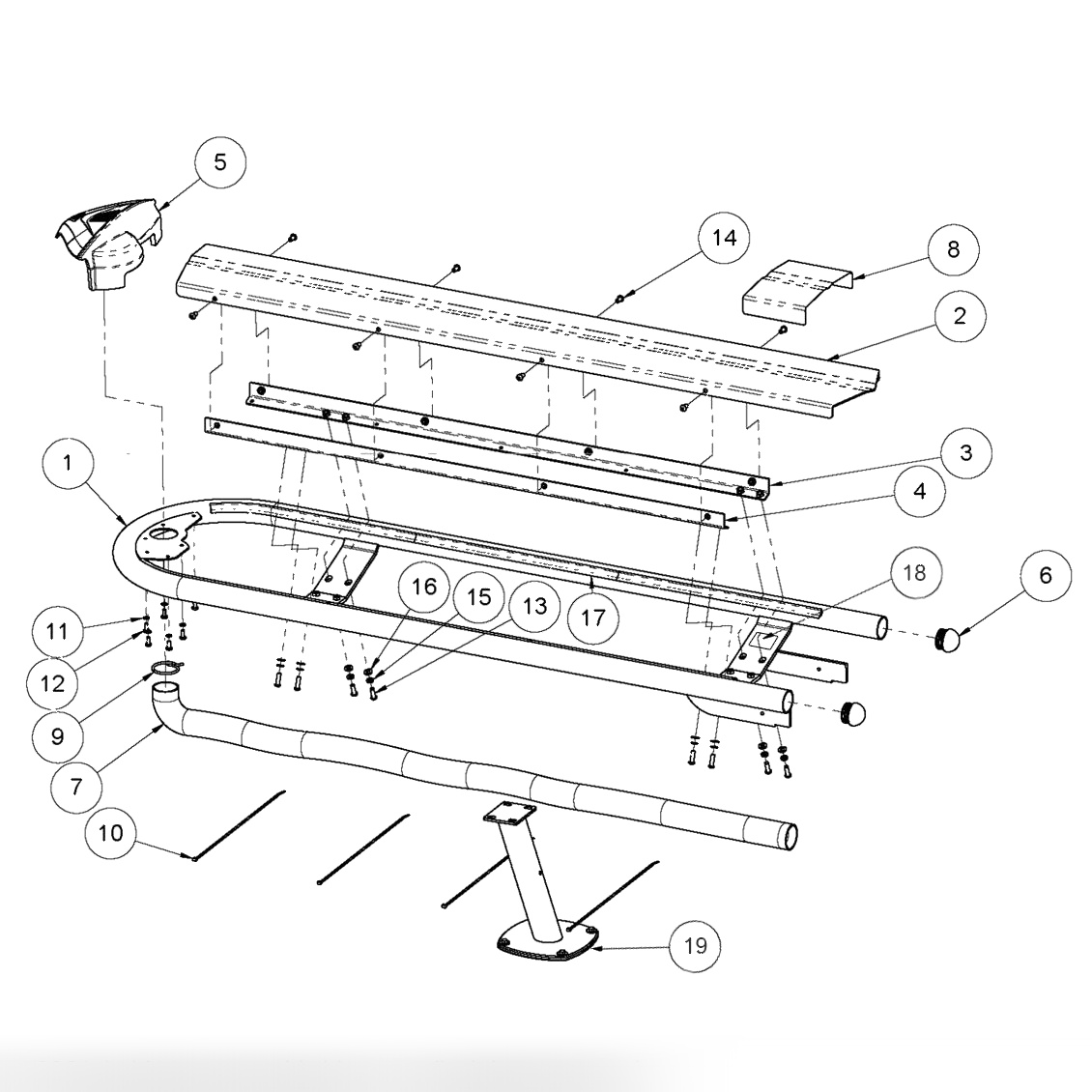

Ball Rack Assembly

Позиция	Артикул	Наименование
2	254001185	Ball Rack Tray
3	254001108	300L BR Rack Tray Leg Right Hand Weld
4	254001107	300L BR Rack Tray Leg Left Hand Weld
5	254001036-01	Ball Rack End Stop Asm
6	254001043	Harmony Rack Tube Plug
7	254001042	Ball Return Hand Blower Hose
8	254001143	IR Mask Decal
9	744102008	Clamp CT Hose 2.0 O.D. YZN
11	951148008	Medium Spring (Split) Lock Washer 1/4 ANSI
12	809849100BG	Cap Screw, Hex Head, 1/4-20 X 0.63 (Bag of 10)
13	808557120BG	Cap Screw, Button Head, 5/16-18 X 0.75 (Bag of 10)
14	808557108	Cap Screw, Button Head, Hex Socket Drive, 5/16-18 X 0.63
15	951156002BG	Spring (Split) Lock Washer 5/16 (Bag of 10)
16	7050034100012	Flat Washer 0.34 X 1.00 X 0.13, Zinc Finish
17	254001039	BR Rack Rail Bumper
18	254001397	Decal Harmony Tunnel Intrusion
19	254001145	Ball Rack Pedestal
-	254001208	Cleaners, Stainless Steel Cleaner
-	254001395	Ball Lift Motor Capacitor
-	610254018	Lower Ball Rack Hardware Kit, Alternate Support
-	254001119	Lower Ball Rack Hardware Kit
