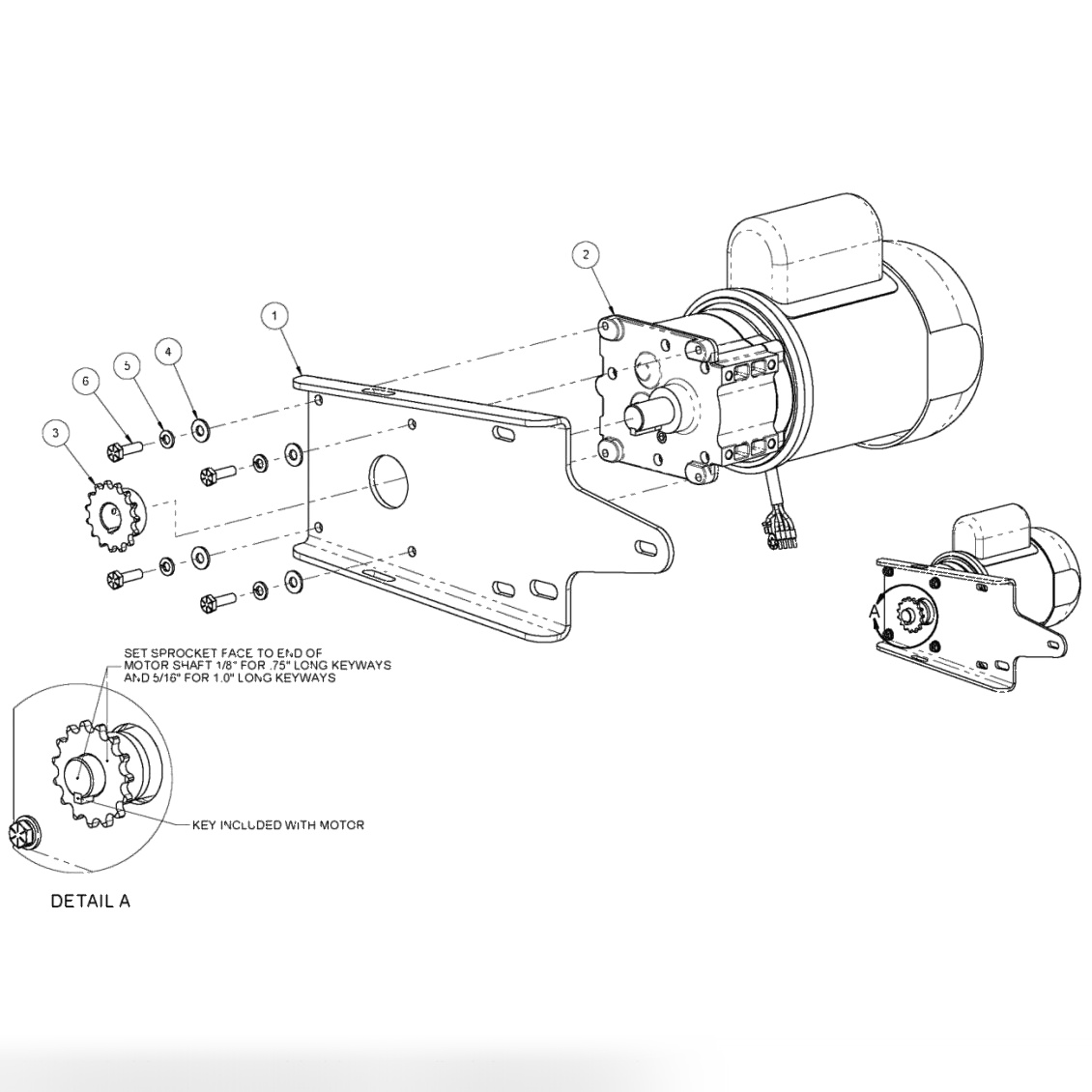

Motor & Bracket Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
254001097
|
Bracket Motor |
| 2 |
254001413
|
Kit, Harmony Ball Lift, 50hz |
| 3 |
254001098
|
Sprocket #35 15T |
| 4 |
948753101
|
Flat Washer 1/4 X 0.27 X 0.61 X 0.05 SAE, Black Oxide Finish |
| 5 |
951148008
|
Medium Spring (Split) Lock Washer 1/4 ANSI |
| 6 |
809250141
|
Cap Screw, Hex Head, 1/4-28 X 0.88 |
| 7 |
254001395
|
Ball Lift Motor Capacitor |
| - |
254001313
|
Drive Pulley |
| - |
254001407
|
Cap, Harmony Motor Shaft |
| - |
254001310
|
Harmony Ball Return Drive Adjustment Arrow |
| - |
254001222
|
Gearmotor 120/240V 50Hz |
| - |
254001331
|
Harmony Motor Tensioner Spring |
