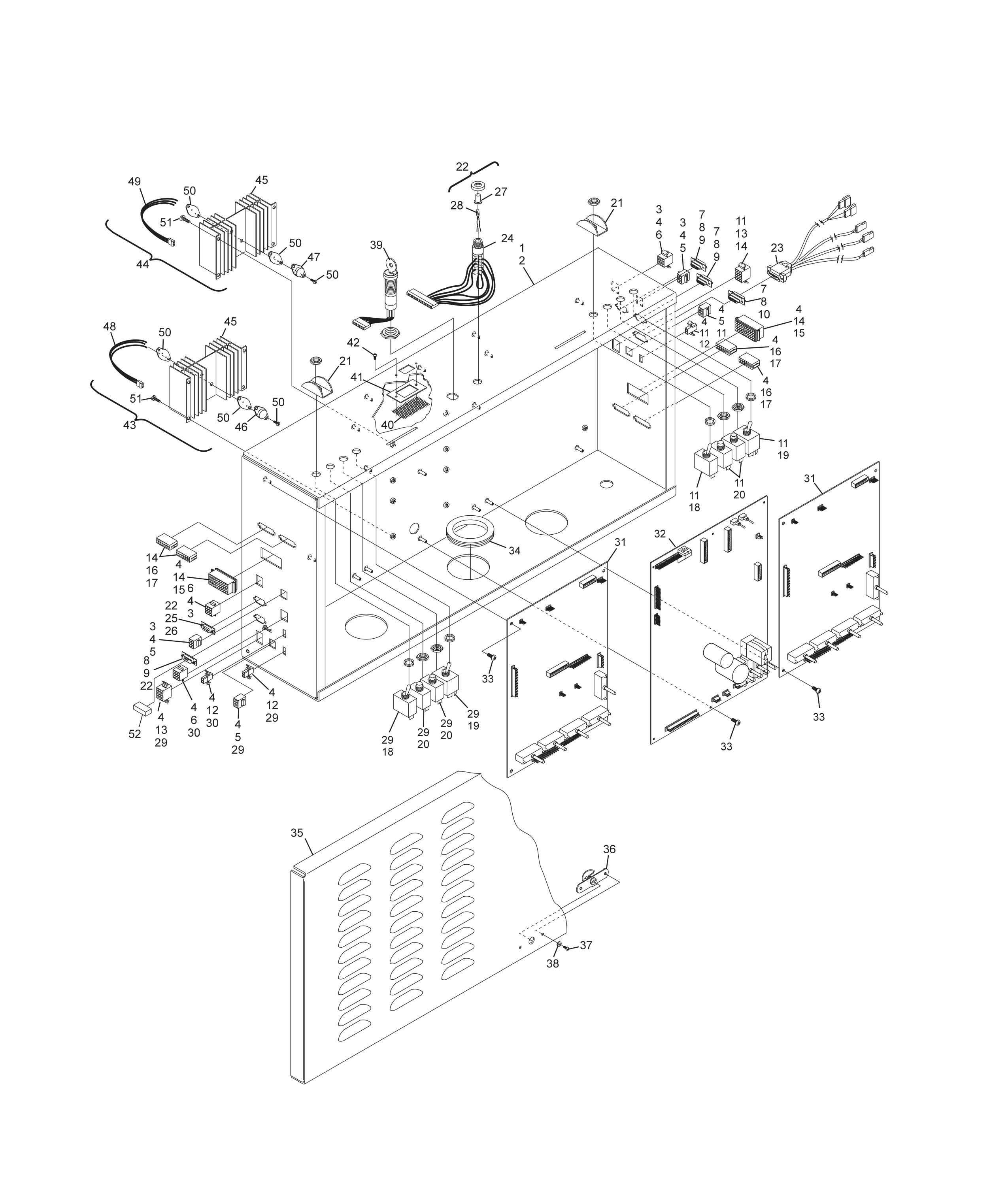

GS Consolidated Electronics Low Voltage Box Assembly
Позиции с кодом N.A.:
- 2 — N.A. — Enclosure
- 6 — N.A. — Connector
- 14 — N.A. — Solenoid and Switches Cable Assembly
- 22 — *N.A. — Comline Switch Cable Assembly
- 25 — N.A. — Connector
- 40 — N.A. — Screen
- 43 — N.A. — Voltage Regulator (VR2)
- 44 — N.A. — Voltage Regulator (VR1)
| Поз. | Артикул | Фото | Наименование | Наличие |
|---|---|---|---|---|
| 1 |
47-862821-400
|
|
GS Consolidated Electronics Low Voltage Control Box (includes Isolation Mount and Mounting Hardware) |
Предзаказ |
| 1 |
47-862926-400
|
|
GS-X Consolidated Electronics Low Voltage Control Box (includes Isolation Mount and Mounting Hardware) |
Предзаказ |
| 3 |
47-142571-000
|
|
Masking Unit and Micro Processor Interface Cable Assembly |
Предзаказ |
| - |
11-680301-000
|
|
Terminal |
Предзаказ |
| 4 |
57-860031-000
|
|
Terminal - Female |
Предзаказ |
| 5 |
11-680207-000
|
|
Connector |
Предзаказ |
| 7 |
47-142568-000
|
|
Low Voltage Interface Cable Assembly |
Предзаказ |
| 8 |
11-680983-000
|
|
Terminal |
Предзаказ |
| 9 |
11-680995-000
|
|
Connector |
Предзаказ |
| 10 |
11-680954-000
|
|
Connector |
Предзаказ |
| 11 |
47-142602-000
|
|
R.H. Lane Various Functions Cable Assembly |
Предзаказ |
| 12 |
11-680220-000
|
|
Connector |
Предзаказ |
| 13 |
11-680208-000
|
|
Connector |
Предзаказ |
| 15 |
11-680221-000
|
|
Connector |
Предзаказ |
| 16 |
11-692325-000
|
|
Connector |
Предзаказ |
| 17 |
11-692090-000
|
|
Terminal |
Предзаказ |
| 17 |
57-860043-000
|
|
Terminal |
Предзаказ |
| 18 |
11-615511-000
|
|
ON/OFF Toggle Switch w/Nut |
Предзаказ |
| 19 |
11-615515-000
|
|
Toggle Switch |
Предзаказ |
| 20 |
11-615013-000
|
|
Push Button Switch |
Предзаказ |
| 21 |
47-142594-000
|
|
Switch Guard |
Предзаказ |
| 22 |
47-142563-000
|
|
Comline Switch GS Low Voltage Box Cable Assembly |
Предзаказ |
| 23 |
47-142619-000
|
|
Optical Trigger Foul Control Cable Assembly |
Предзаказ |
| 24 |
11-615021-000
|
|
Switch w/LED (Does not include cable) |
Предзаказ |
| 26 |
11-680981-000
|
|
Terminal |
Предзаказ |
| 27 |
11-615022-000
|
|
Lens (Red) |
Предзаказ |
| 28 |
11-680802-000
|
|
LED |
Предзаказ |
| 29 |
47-142572-000
|
|
R.H. and L.H. Lane Various Functions Cable Assembly |
Предзаказ |
| 30 |
47-142567-000
|
|
High Voltage Output Cable Assembly |
Предзаказ |
| 31 |
47-862823-000
|
|
I/O PCB |
Предзаказ |
| 32 |
47-862822-400
|
|
CPU PCB (pre-GS-X) |
Предзаказ |
| 32 |
47-862925-400
|
|
CPU PCB (GS-X) |
Предзаказ |
| 33 |
11-012274-001
|
|
Pan Head C.R. Machine Screw |
Предзаказ |
| 34 |
11-651024-000
|
|
Grommet (2.5 Dia.) |
Предзаказ |
| 35 |
47-142595-000
|
|
Cover |
Предзаказ |
| 36 |
57-214276-007
|
|
Fastener |
Предзаказ |
| 37 |
11-012251-001
|
|
Pan Head C.R. Screw with Lockwasher |
Предзаказ |
| 38 |
11-199000-001
|
|
Lockwasher (#4) |
Предзаказ |
| 39 |
47-862503-000
|
|
Key Switch Assembly |
Предзаказ |
| 41 |
68-100663-000
|
|
Screen Retainer |
Предзаказ |
| 42 |
11-012003-001
|
|
Pan Head C.R. Machine Screw w/Lockwasher |
Предзаказ |
| 45 |
11-698421-000
|
|
Heat Sink |
Предзаказ |
| 46 |
11-696878-000
|
|
Adjustable Voltage Regulator (+ |
Предзаказ |
| 47 |
11-696876-000
|
|
Voltage Regulator (+ |
Предзаказ |
| 48 |
47-142566-001
|
|
Cable Assembly - 9” (Blue) |
Предзаказ |
| 49 |
47-142565-001
|
|
Cable Asssembly - 13” (Orange) |
Предзаказ |
| 50 |
11-698441-000
|
|
Mounting Kit |
Предзаказ |
| 51 |
11-052057-001
|
|
Pan Head C.R. Screw with Lockwasher |
Предзаказ |
| 52 |
57-861589-000
|
|
Comline Terminator |
Предзаказ |
