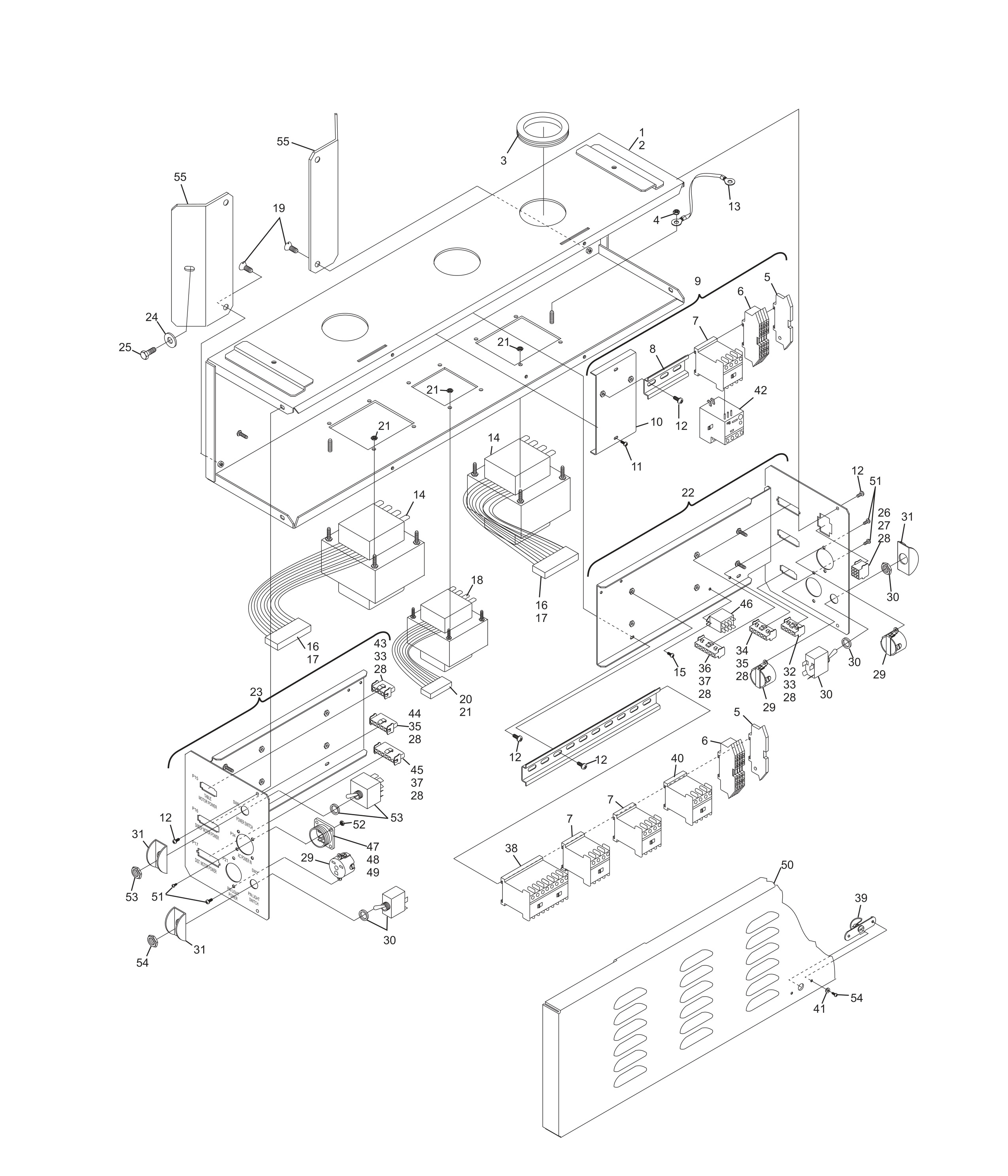

GS Consolidated Electronics High Voltage Box Assembly
Позиции с кодом N.A.:
- 2 — N.A. — Enclosure
| Поз. | Артикул | Фото | Наименование | Наличие |
|---|---|---|---|---|
| 1 |
47-862841-000
|
|
GS Consolidated Electronics High Voltage Box Assembly (includes Mount and Mounting Hardware) |
Предзаказ |
| 3 |
11-651024-000
|
|
Grommet (2.5 Dia.) |
Предзаказ |
| 4 |
11-170005-001
|
|
Hex Nut (#10-24) |
Предзаказ |
| 5 |
11-615760-000
|
|
End Cap |
Предзаказ |
| 6 |
11-615759-000
|
|
Terminal Block |
Предзаказ |
| 7 |
11-671513-000
|
|
Contactor |
Предзаказ |
| 8 |
47-142599-000
|
|
Mounting Rail (short) |
Предзаказ |
| 9 |
47-862838-000
|
|
Ball Accelerator Contactor Mounting Plate Assembly |
Предзаказ |
| 10 |
47-142601-000
|
|
Relay Mounting Plate |
Предзаказ |
| 11 |
11-012060-001
|
|
Pan Head C.R. Screw with Lockwasher |
Предзаказ |
| 12 |
11-012057-001
|
|
Pan Head C.R. Screw with Lockwasher |
Предзаказ |
| 13 |
68-100481-000
|
|
Ground Cable Assembly |
Предзаказ |
| 14 |
47-142564-000
|
|
Transformer Assembly |
Предзаказ |
| 15 |
11-012271-001
|
|
Pan Head C.R. Screw |
Предзаказ |
| 16 |
11-697214-000
|
|
Connector |
Предзаказ |
| 17 |
11-680322-000
|
|
Terminal |
Предзаказ |
| 17 |
57-860042-000
|
|
Terminal - Female |
Предзаказ |
| 18 |
47-142605-000
|
|
Transformer Assembly |
Предзаказ |
| 19 |
11-014144-001
|
|
Flat Head Slotted Screw |
Предзаказ |
| 20 |
11-697208-000
|
|
Connector |
Предзаказ |
| 21 |
11-125003-001
|
|
Hex Nut (#8-32) |
Предзаказ |
| 22 |
47-862839-000
|
|
R.H. Relay Mounting Plate Assembly |
Предзаказ |
| 23 |
47-862840-000
|
|
L.H. Relay Mounting Plate Assembly |
Предзаказ |
| 24 |
11-191012-001
|
|
Flat Washer |
Предзаказ |
| 25 |
11-001176-001
|
|
Hex Head Cap Screw |
Предзаказ |
| 26 |
47-142585-000
|
|
Ball Accelerator Motor Power Cable Assembly |
Предзаказ |
| 27 |
11-696715-000
|
|
Connector |
Предзаказ |
| - |
11-696737-000
|
|
Terminal |
Предзаказ |
| 29 |
11-686128-000
|
|
Utility Outlet |
Предзаказ |
| 30 |
11-615515-000
|
|
Toggle Switch |
Предзаказ |
| 31 |
47-142594-000
|
|
Switch Guard |
Предзаказ |
| 32 |
47-142586-000
|
|
Table Motor Power Cable Assembly |
Предзаказ |
| 33 |
11-696714-000
|
|
Connector |
Предзаказ |
| 34 |
47-142587-000
|
|
Sweep Motor Power Cable Assembly |
Предзаказ |
| 35 |
11-696716-000
|
|
Connector |
Предзаказ |
| 36 |
47-142588-000
|
|
Elevator Motor Power Cable Assembly |
Предзаказ |
| 36 |
47-862735-000
|
|
Elevator Motor Power Cable Assembly |
Предзаказ |
| 37 |
11-696717-000
|
|
Connector Cap |
Предзаказ |
| 38 |
11-671011-000
|
|
Contactor |
Предзаказ |
| 39 |
57-214276-007
|
|
Fastener |
Предзаказ |
| 40 |
11-671514-000
|
|
Relay Contactor |
Предзаказ |
| 41 |
11-199000-001
|
|
Lockwasher (#4) |
Предзаказ |
| 42 |
11-671001-000
|
|
Relay (1.6 - 2.5 Amp) |
Предзаказ |
| 43 |
47-142591-000
|
|
Table Motor Power Cable Assembly |
Предзаказ |
| 44 |
47-142592-000
|
|
Sweep Motor Power Cable Assembly |
Предзаказ |
| 45 |
47-142606-000
|
|
Elevator Motor Power Cable Assembly |
Предзаказ |
| 46 |
11-696622-000
|
|
Relay |
Предзаказ |
| 47 |
47-172916-000
|
|
AC Input Cable Assembly |
Предзаказ |
| 48 |
11-703531-000
|
|
Connector |
Предзаказ |
| 49 |
11-612578-000
|
|
Terminal |
Предзаказ |
| 50 |
47-142556-000
|
|
Cover |
Предзаказ |
| 51 |
11-012274-001
|
|
Pan Head C.R. Machine Screw |
Предзаказ |
| 52 |
11-176005-001
|
|
Keps Nut |
Предзаказ |
| 53 |
11-615510-000
|
|
Toggle Switch |
Предзаказ |
| 54 |
11-012251-001
|
|
Pan Head C.R. Screw with Lockwasher |
Предзаказ |
| 55 |
47-142600-000
|
|
Mounting Bracket |
Предзаказ |
