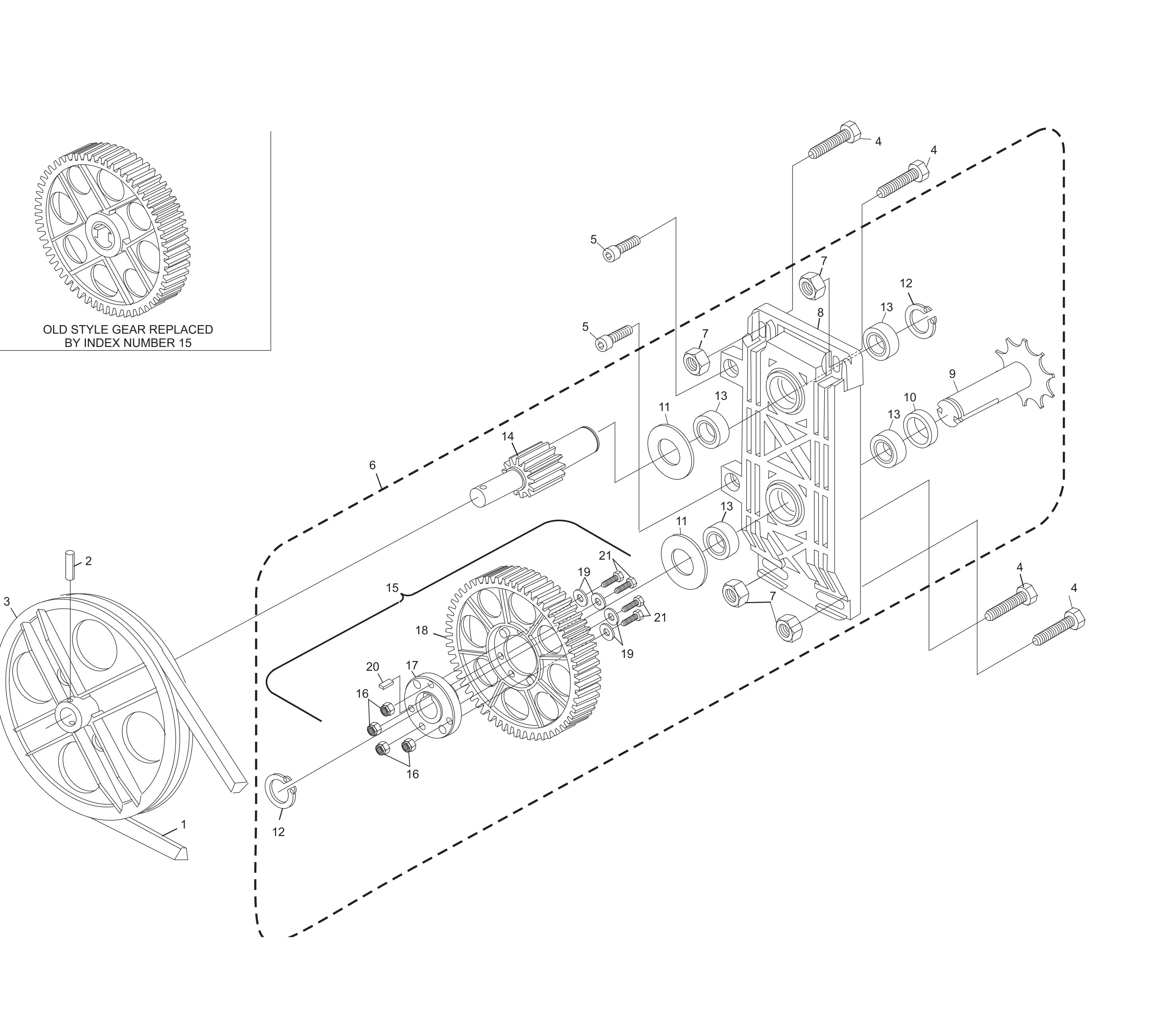

Table Gear, Sweep Gear and Pulley Drive Assembly
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
11-053901-000
|
V-Belt |
| 2 |
11-052690-001
|
Roll Pin |
| 3 |
99-070237-002
|
Pulley |
| 4 |
11-051045-001
|
Hex Hd. Cap Screw |
| 5 |
11-051532-001
|
Socket Head Cap Screw |
| 6 |
47-073598-009
|
Gear and Hub Assembly (new style for all GS machines) |
| 7 |
11-051745-001
|
Locknut |
| 8 |
47-075076-001
|
Bearing Plate |
| 9 |
47-071823-004
|
Sprocket Shaft |
| 10 |
47-071706-004
|
Spacer Bushing |
| 11 |
11-054102-001
|
Spacer Flat Washer |
| 11 |
47-861028-001
|
Shim Washers |
| 12 |
11-051856-001
|
Retaining Ring |
| 13 |
11-430051-000
|
Bearing |
| 14 |
47-071705-004
|
Pinion Shaft |
| 15 |
47-075184-003
|
Gear Assembly |
| 16 |
11-051533-001
|
Socket Hd. Cap Screw |
| 17 |
47-075073-003
|
Hub only - Metal |
| 18 |
47-075072-002
|
Gear - only |
| 19 |
11-052003-001
|
Flat Washer |
| 20 |
11-053511-000
|
Key |
| - |
11-051744-001
|
Locknut |
