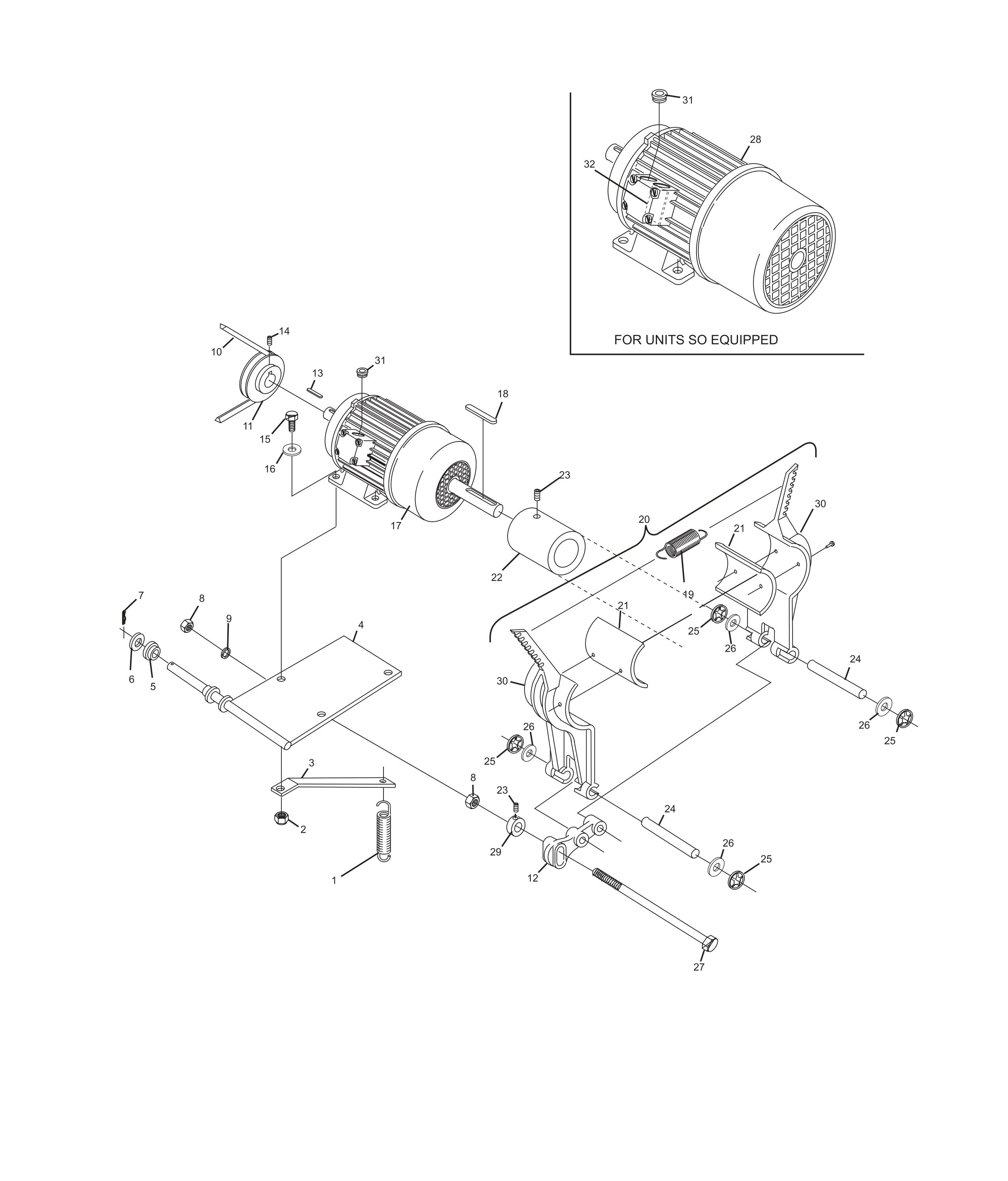

Sweep Motor and Brake Assembly
Позиции с кодом N.A.:
- 17 — N.A. — Motor
- 20 — N.A. — Brake Assembly
- 24 — N.A. — Shaft
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
99-020163-004
|
Spring |
| - |
11-051743-001
|
Locknut |
| 3 |
47-071362-004
|
Bracket |
| 4 |
47-075147-003
|
Motor Mount Bracket |
| 5 |
99-010102-004
|
Bearing |
| 6 |
11-052036-001
|
Flat Washer |
| 7 |
11-054301-001
|
Hitch Pin |
| 7 |
47-861032-001
|
Hitch Pin |
| 8 |
11-051703-001
|
Hex Nut |
| 9 |
11-051771-001
|
Lockwasher |
| 10 |
11-053901-000
|
V-Belt |
| 11 |
47-073862-004
|
Motor Drive Pulley (50 or 60 Hz) |
| 12 |
47-073785-004
|
Strap Joint |
| 13 |
11-053499-000
|
Key |
| 14 |
11-053101-000
|
Set Screw |
| 15 |
11-051028-001
|
Hex Hd. Cap Screw |
| 16 |
11-052048-001
|
Flat Washer |
| 18 |
11-053500-000
|
Key |
| 19 |
46-070378-004
|
Tension Spring |
| 21 |
47-071820-004
|
Shoe |
| 22 |
47-071558-004
|
Spiral Brake Pulley |
| 23 |
11-052802-001
|
Set Screw |
| 25 |
11-053478-001
|
Speed Nut |
| 25 |
47-861050-000
|
Speed Nut |
| 26 |
11-052017-001
|
Flat Washer |
| 27 |
11-051059-001
|
Hex Hd. Cap Screw |
| 28 |
99-040241-004
|
Sweep Motor - Siemens Motor w/Integral Brake (230/AC, 0.18 kW) |
| 28 |
99-076367-000
|
Sweep Motor |
| 28 |
99-040293-004
|
Sweep Motor w/Integral Brake AC) |
| 28 |
99-076366-000
|
Sweep Motor AC, 0.18kW) |
| 29 |
11-053617-001
|
Stop Collar |
| 30 |
47-073786-003
|
Shoe Holder |
| 31 |
11-680925-000
|
Strain Relief (all drum and external brake motors) |
| 31 |
11-055080-000
|
Strain Relief (all disc brake motors) |
| 32 |
99-070408-004
|
PCB for New Brake Motor |
