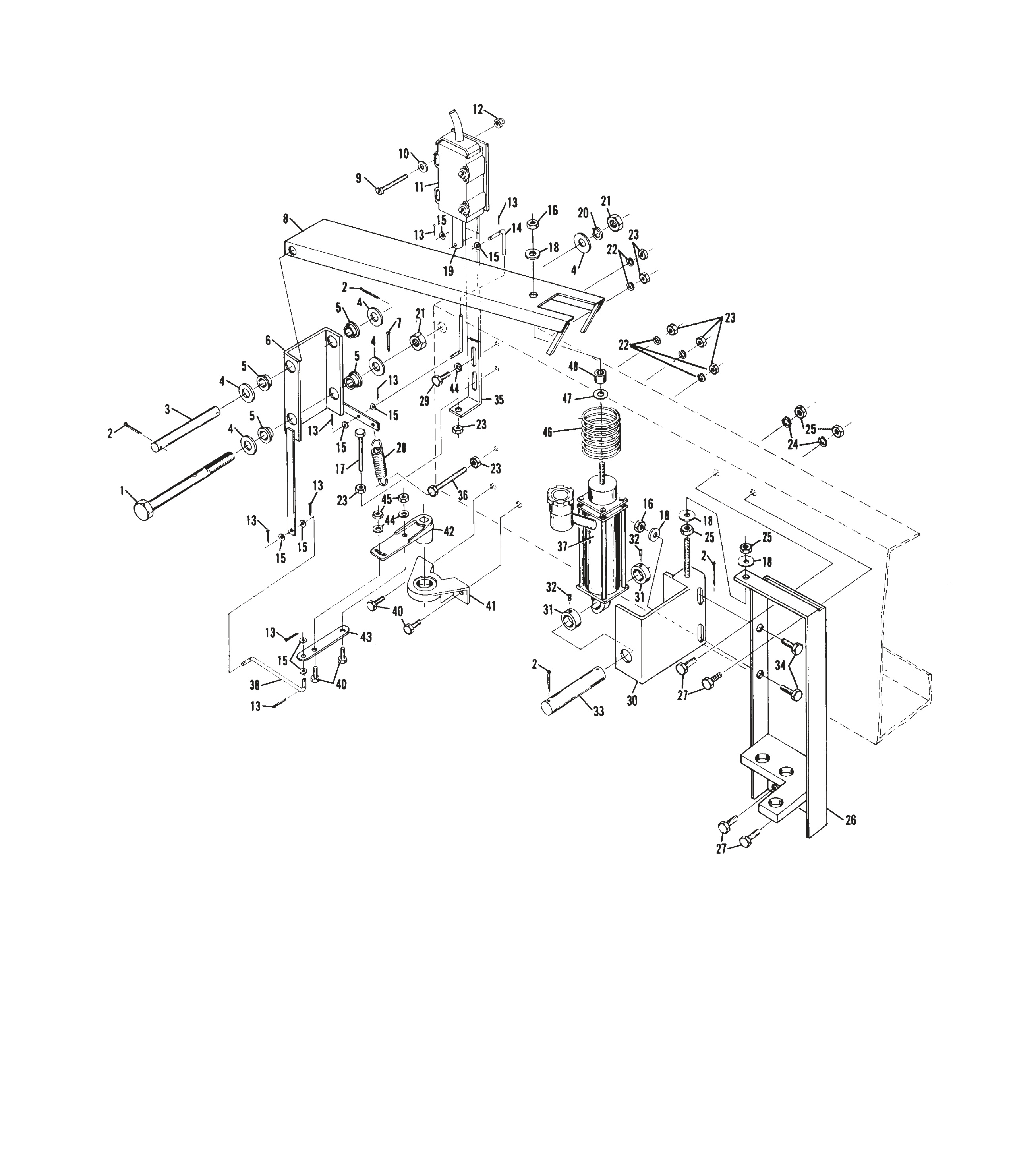

Stroke Limiter Assembly - Vertical Solenoid
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-071673-004
|
Hex Hd. Cap Screw |
| 2 |
11-051786-001
|
Cotter Pin |
| 3 |
47-071507-004
|
Shaft |
| 4 |
11-052036-001
|
Flat Washer |
| 5 |
99-010102-004
|
Bearing |
| 6 |
47-071670-002
|
Lever Bushing Support |
| 7 |
11-051787-001
|
Cotter Pin |
| 8 |
47-071669-002
|
Stroke Limiter Plate |
| 9 |
11-052202-001
|
Slotted Machine Screw |
| 10 |
11-052005-001
|
Flat Washer |
| 11 |
99-060219-004
|
Solenoid Assembly w/Plug (red box) |
| 12 |
11-051742-001
|
Locknut |
| 13 |
11-051791-001
|
Split Pin |
| 14 |
47-075141-004
|
Connecting Link (horizontal mount) order 2 each - Speednut 11-053416-001 |
| 15 |
11-052025-001
|
Flat Washer |
| - |
11-051744-001
|
Locknut |
| 17 |
11-051022-001
|
Hex Hd. Cap Screw |
| 18 |
11-052019-001
|
Flat Washer |
| 19 |
99-060133-004
|
Plunger Only |
| 20 |
11-051773-001
|
Lockwasher |
| 21 |
11-051705-001
|
Hex Nut |
| 22 |
11-051769-001
|
Lockwasher |
| 23 |
11-051702-001
|
Hex Nut |
| 24 |
11-051770-001
|
Lockwasher |
| 25 |
11-051704-001
|
Hex Nut |
| 26 |
47-071509-002
|
Guide Beam |
| 27 |
11-051038-001
|
Hex Hd. Cap Screw |
| 28 |
55-050636-004
|
Tension Spring |
| 29 |
11-051018-001
|
Hex Head Cap Screw |
| 30 |
47-071158-003
|
Hydraulic Support |
| 31 |
11-053624-001
|
Stop Collar |
| 32 |
11-052801-001
|
Set Screw |
| 33 |
47-070311-004
|
Shaft |
| 34 |
11-051010-001
|
Hex Hd. Cap Screw |
| 35 |
47-071965-003
|
Solenoid Holder |
| 36 |
11-051014-001
|
Hex Head Cap Screw |
| 37 |
99-070410-002
|
Hydraulic Shock Absorber Complete |
| 37 |
99-076123-000
|
Hydraulic Shock Absorber Complete |
| 38 |
47-075142-004
|
Connecting Link |
| 39 |
47-243030-004
|
Solenoid Assembly w/Plug (silver and consolidated box) |
| 39 |
99-070356-004
|
Solenoid |
| 40 |
11-051035-001
|
Hex Hd. Cap Screw |
| 41 |
47-071578-004
|
Bearing Block |
| 42 |
47-071579-004
|
Swing Lever |
| 43 |
47-071680-004
|
Connecting Link |
| 44 |
11-052048-001
|
Flat Washer |
| 45 |
11-051743-001
|
Locknut |
| 46 |
47-071602-004
|
Compression Spring |
| - |
11-052003-001
|
Flat Washer |
| 48 |
47-070373-004
|
Spacer |
