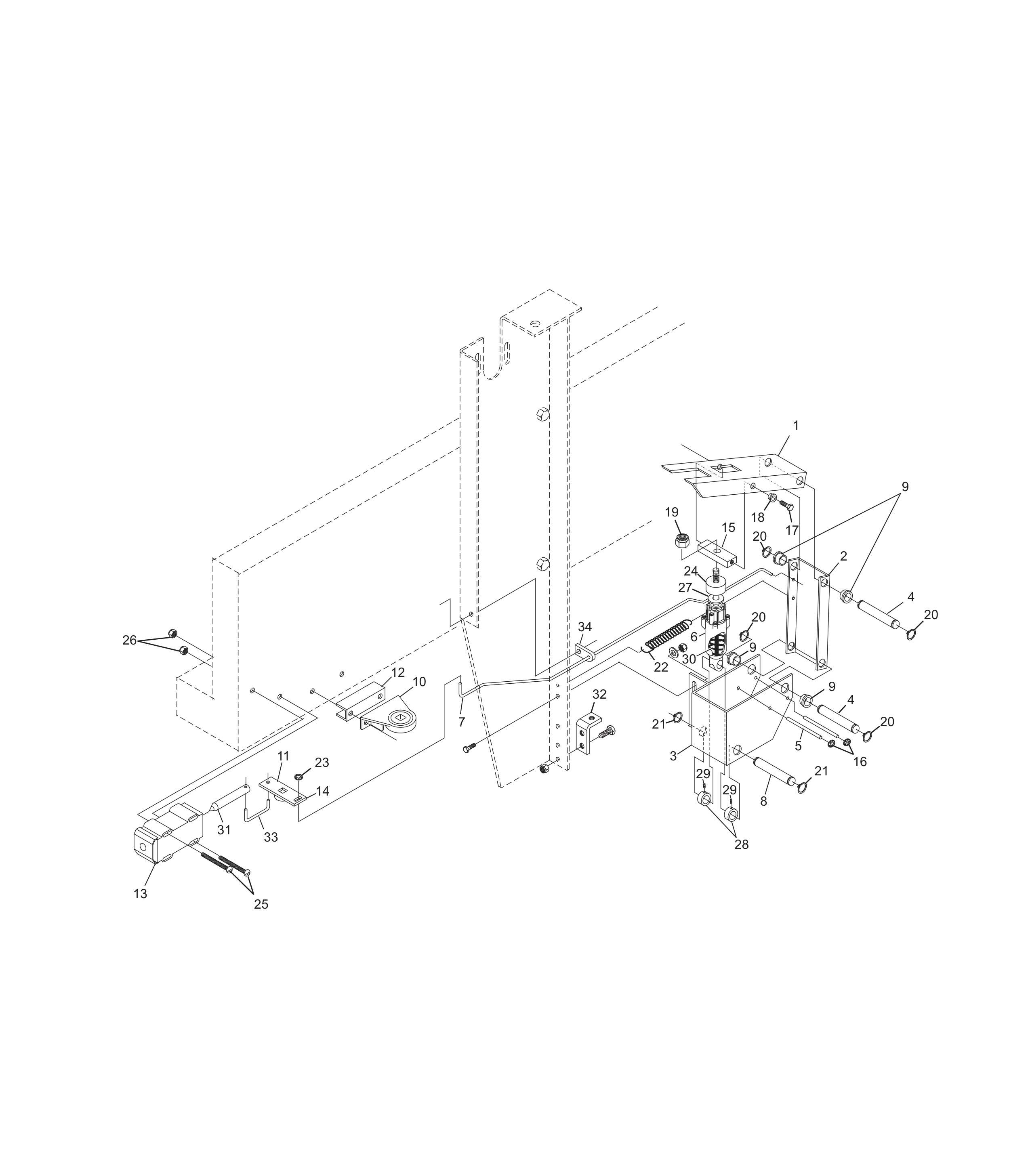

Stroke Limiter Assembly (Machine Series 443 and Above)
| Позиция | Артикул | Наименование |
|---|---|---|
| 1 |
47-075468-003
|
Lever |
| 2 |
47-075469-003
|
Support Bracket |
| 3 |
47-075472-003
|
Support |
| 4 |
47-075464-004
|
Shaft |
| 5 |
47-075465-004
|
Stop Post |
| 5 |
47-075699-004
|
Stop Post |
| 6 |
99-070395-002
|
Shock Absorber |
| 6 |
99-076120-000
|
Hydrualic Shock Absorber Assembly |
| 7 |
47-075467-003
|
Sensor Link |
| 8 |
47-075466-004
|
Shaft |
| 9 |
99-010102-004
|
Bearing |
| 10 |
47-075552-009
|
Bushing |
| 11 |
47-075354-004
|
Swing Lever |
| 12 |
47-075368-004
|
Bracket |
| 13 |
99-070356-004
|
Solenoid |
| 15 |
47-075462-004
|
Plate |
| 16 |
11-053475-001
|
Speed Nut |
| 16 |
11-053482-001
|
Speed Nut |
| 17 |
11-051067-001
|
Hex Hd. Cap Screw |
| 18 |
47-075435-004
|
Bushing |
| 19 |
11-051745-001
|
Locknut |
| 20 |
11-051857-001
|
Retaining Ring |
| 21 |
11-051861-000
|
Retaining Ring |
| 22 |
55-050636-004
|
Tension Spring |
| 23 |
11-053476-001
|
Speed Nut |
| 24 |
99-070398-004
|
Shock Bumper |
| 25 |
11-052202-001
|
Slotted Machine Screw |
| 26 |
11-051742-001
|
Locknut |
| 27 |
11-052068-001
|
Flat Washer |
| 28 |
11-053624-001
|
Stop Collar |
| 29 |
11-052801-001
|
Set Screw |
| 30 |
99-070397-004
|
Compression Spring |
| 31 |
99-060133-004
|
Plunger Only |
| 32 |
47-075433-004
|
Stop |
| 33 |
47-075463-004
|
Connecting Link |
| 34 |
47-075434-000
|
Guide |
