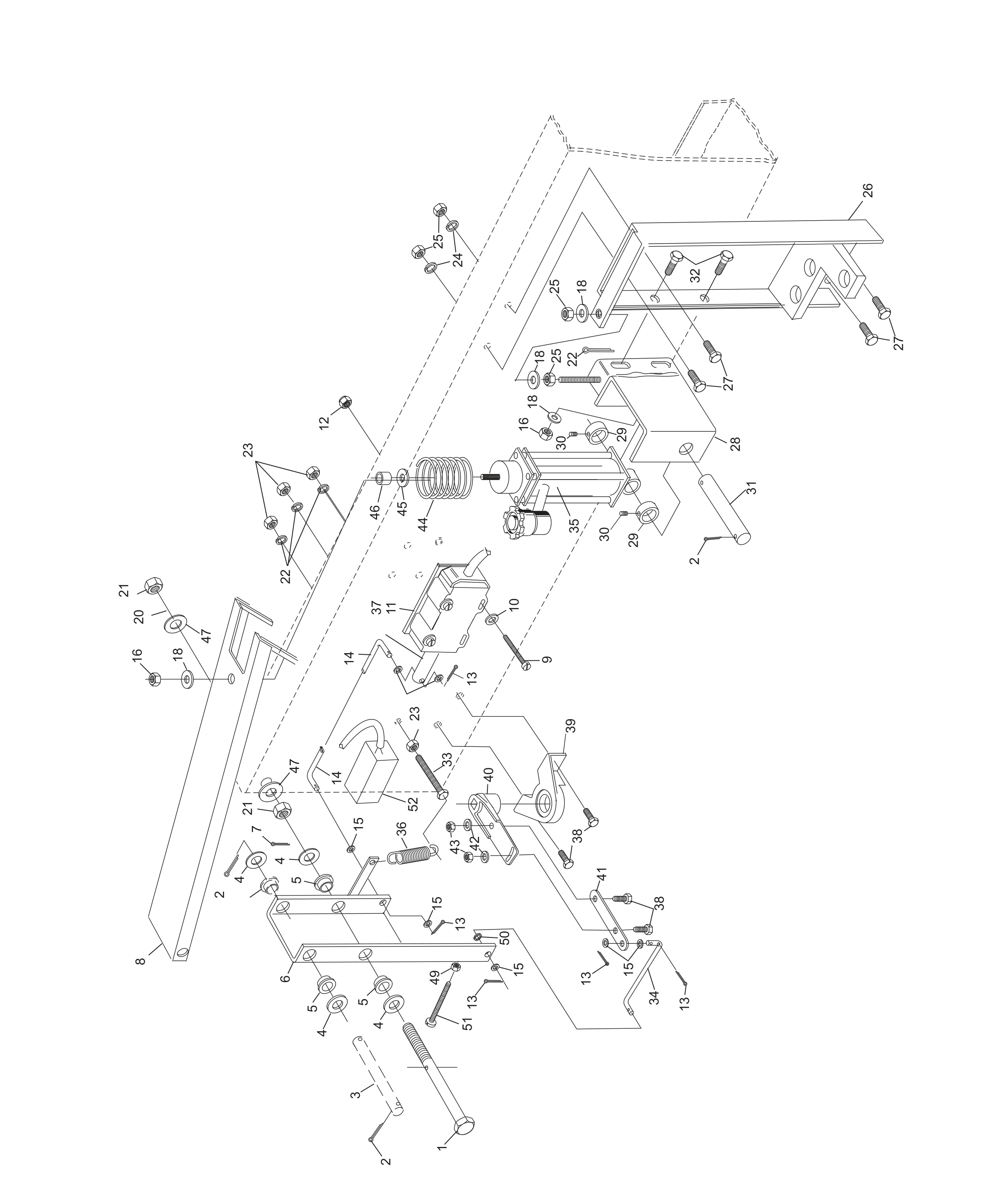

Stroke Limiter Assembly - Horizontal Solenoid
| Позиция | Артикул | Фото | Наименование | Цена | |
|---|---|---|---|---|---|
| - |
47-071673-004
|
Hex Hd. Cap Screw |
0 ₽ | ||
| - |
11-051786-001
|
Cotter Pin |
0 ₽ | ||
| - |
47-071507-004
|
Shaft |
0 ₽ | ||
| - |
11-052036-001
|
Flat Washer |
0 ₽ | ||
| - |
99-010102-004
|
Bearing |
0 ₽ | ||
| - |
47-071670-002
|
Lever Bushing Support |
0 ₽ | ||
| - |
11-051787-001
|
Cotter Pin |
0 ₽ | ||
| - |
47-071669-002
|
Stroke Limiter Plate |
0 ₽ | ||
| - |
11-052202-001
|
Slotted Machine Screw |
0 ₽ | ||
| - |
11-052020-001
|
Flat Washer |
0 ₽ | ||
| - |
99-060219-004
|
Solenoid Assembly w/Plug (red box) |
0 ₽ | ||
| - |
11-051742-001
|
Locknut |
0 ₽ | ||
| - |
11-051791-001
|
Split Pin |
0 ₽ | ||
| - |
47-075141-004
|
Connecting Link (horizontal mount) order 2 each - Speednut 11-053416-001 |
0 ₽ | ||
| - |
11-052025-001
|
Flat Washer |
0 ₽ | ||
| - |
11-051744-001
|
Locknut |
0 ₽ | ||
| - |
11-051025-001
|
Hex Head Cap Screw |
0 ₽ | ||
| - |
11-052019-001
|
Flat Washer |
0 ₽ | ||
| - |
99-060133-004
|
Plunger Only |
0 ₽ | ||
| - |
11-051773-001
|
Lockwasher |
0 ₽ | ||
| - |
11-051705-001
|
Hex Nut |
0 ₽ | ||
| - |
11-051769-001
|
Lockwasher |
0 ₽ | ||
| - |
11-051702-001
|
Hex Nut |
0 ₽ | ||
| - |
11-051770-001
|
Lockwasher |
0 ₽ | ||
| - |
11-051704-001
|
Hex Nut |
0 ₽ | ||
| - |
47-071509-002
|
Guide Beam |
0 ₽ | ||
| - |
11-051038-001
|
Hex Hd. Cap Screw |
0 ₽ | ||
| - |
47-071158-003
|
Hydraulic Support |
0 ₽ | ||
| - |
11-053624-001
|
Stop Collar |
0 ₽ | ||
| - |
11-053101-000
|
Set Screw |
0 ₽ | ||
| - |
47-070311-004
|
Shaft |
0 ₽ | ||
| - |
11-051010-001
|
Hex Hd. Cap Screw |
0 ₽ | ||
| - |
11-051014-001
|
Hex Head Cap Screw |
0 ₽ | ||
| - |
47-075142-004
|
Connecting Link |
0 ₽ | ||
| - |
99-070410-002
|
Hydraulic Shock Absorber Complete |
0 ₽ | ||
| - |
99-076123-000
|
Hydraulic Shock Absorber Complete |
0 ₽ | ||
| - |
55-050636-004
|
Tension Spring |
0 ₽ | ||
| - |
47-243030-004
|
Solenoid Assembly w/Plug (silver and consolidated box) |
0 ₽ | ||
| - |
99-070356-004
|
Solenoid |
0 ₽ | ||
| - |
11-051035-001
|
Hex Hd. Cap Screw |
0 ₽ | ||
| - |
47-071578-004
|
Bearing Block |
0 ₽ | ||
| - |
47-071579-004
|
Swing Lever |
0 ₽ | ||
| - |
47-071680-004
|
Connecting Link |
0 ₽ | ||
| - |
11-052048-001
|
Flat Washer |
0 ₽ | ||
| - |
11-051743-001
|
Locknut |
0 ₽ | ||
| - |
47-071602-004
|
Compression Spring |
0 ₽ | ||
| - |
11-052003-001
|
Flat Washer |
0 ₽ | ||
| - |
47-070373-004
|
Spacer |
0 ₽ | ||
| - |
11-052029-001
|
Flat Washer |
0 ₽ | ||
| - |
11-052208-001
|
Sltd. Machine Hd. Screw |
0 ₽ | ||
| - |
11-051709-001
|
Hex Nut |
0 ₽ | ||
| - |
11-051767-001
|
Lockwasher - red box only |
0 ₽ | ||
| - |
47-223077-004
|
Frame Counter Assembly |
0 ₽ | ||
| - |
57-860828-000
|
Frame Counter Kit w/Command Network and LIU |
0 ₽ |
